LG 55UN560H0UA.AUS User Manual

26
ENGLISH
Communication Parameters
• Baud rate: 9,600 bps (UART)
• Data length: 8 bits
• Parity: None
• Stop bit: 1 bit
• Communication code: ASCII code
• Use a crossed (reverse) cable.
Set ID
For Set ID number, see “Real data mapping”.
The adjustment range is 1-99.
• Some models support the [Set ID] up to
1000.

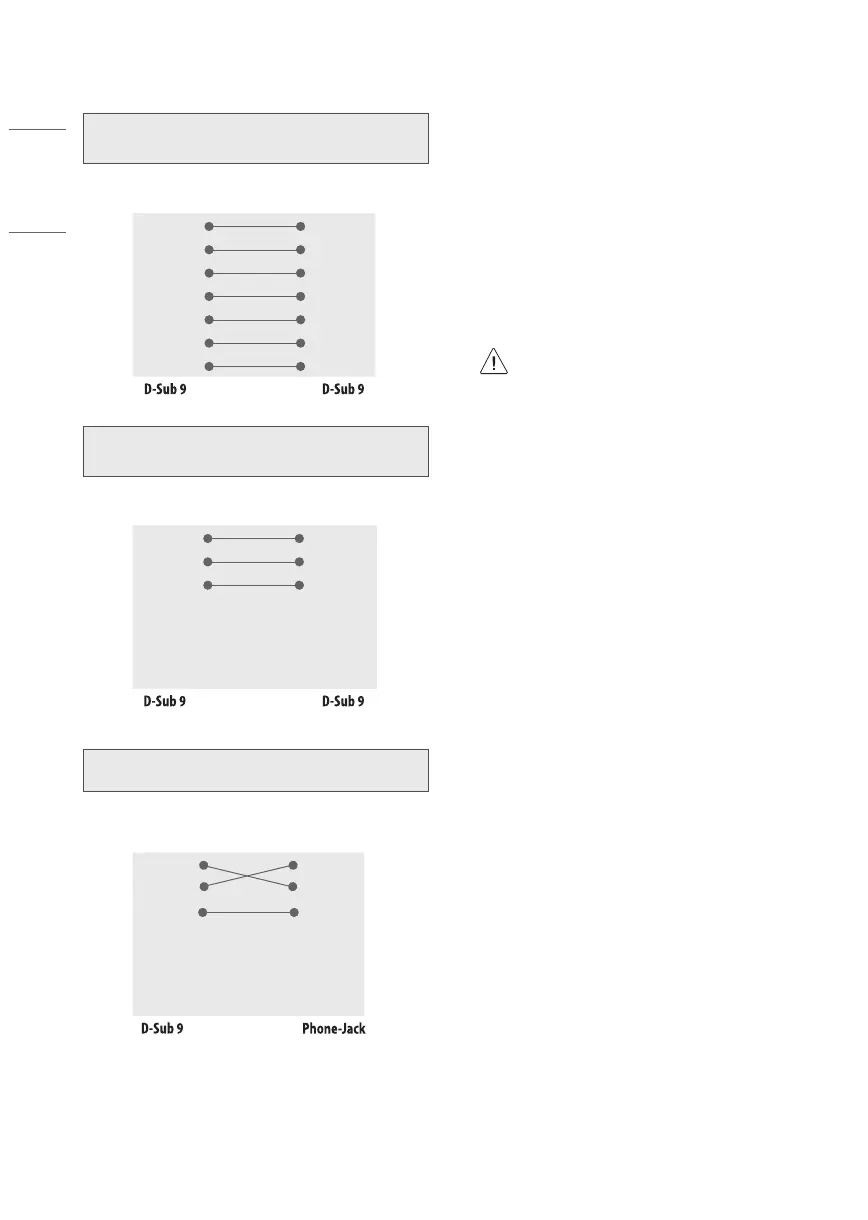

RS-232C Configurations
7-Wire Configurations
(Standard RS-232C cable)
PC TV
RXD
2 3
TXD
TXD
3 2
RXD
GND
5 5
GND
DTR
4 6
DSR
DSR
6 4
DTR
RTS
7 8
CTS
CTS
8 7
RTS
3-Wire Configurations
(Not standard)
PC TV
RXD
2 3
TXD
TXD
3 2
RXD
GND
5 5
GND
DTR
4 6
DSR
DSR
6 4
DTR
RTS
7 8
CTS
CTS
8 7
RTS
3-Wire Configurations
PC TV
RXD
2 2
RXD
TXD
3 1
TXD
GND
5 4
GND
DTR
4 3
IR-OUT*
DSR
6
RTS
7
CTS
8
• * : Depending upon model
