Connecting Multiple Monitors
• Images may differ according to the model.

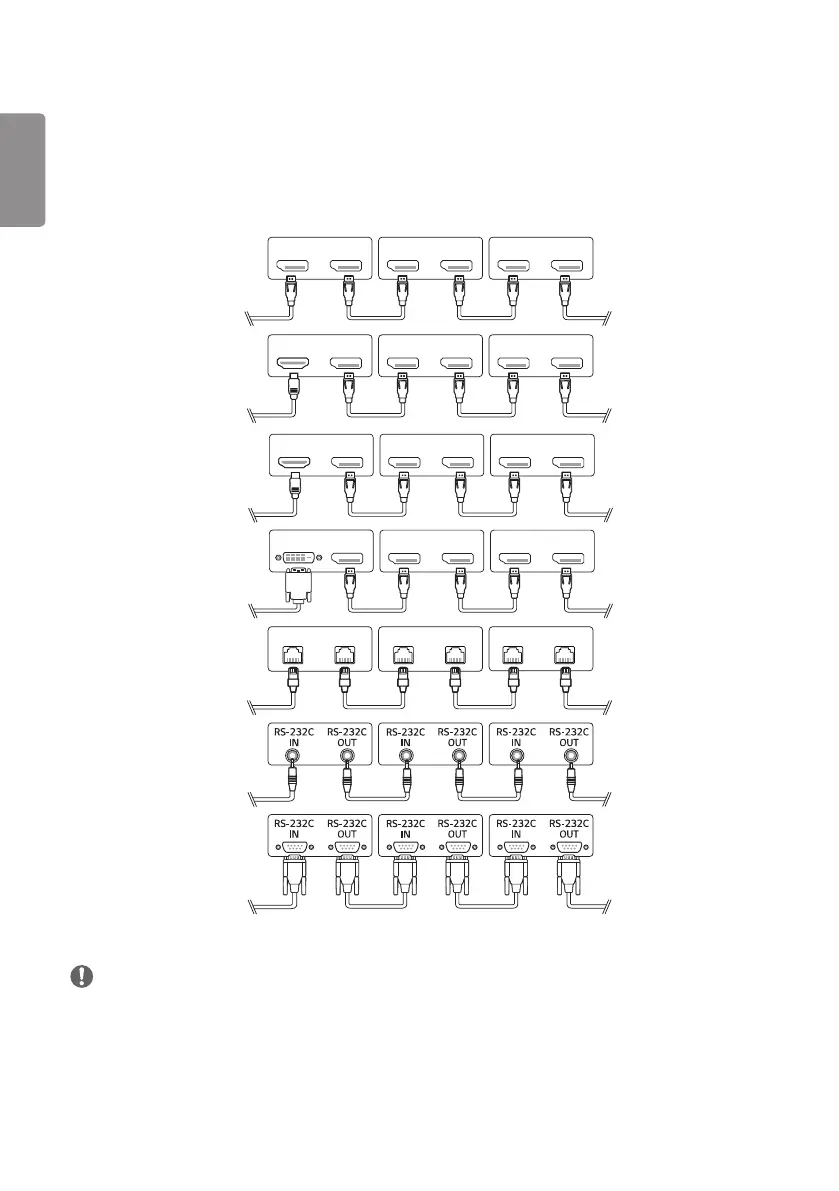

To use different products connected to each other, connect one end of the signal input cable (DP Cable) to the DP Out
connector of Monitor 1 and connect the other end to the DP In connector of the other product.
AUDIO OUT AUDIO IN
DVI IN DVI OUT
DVI IN
AUDIO IN
DVI OUT
AUDIO OUT
DP OUTDP IN DP OUTDP IN DP OUTDP IN
DP OUT
HDMI IN 1
DP OUTDP IN DP OUTDP IN
DP OUT
HDMI IN 2
DP OUTDP IN DP OUTDP IN
DP OUTDP IN DP OUTDP IN
DP OUT
LAN OUT
LAN IN
LAN OUT
LAN IN
LAN OUT
LAN IN
DVI IN
NOTE
• If the signal cable between the product and your PC is too long, make sure to use the Booster or optical cable.
• DP Cable - Use a DP cable that is certified to DP 1.1a standard or higher.
• Daisy chaining the video output may be limited depending on the performance of the input device that supports
HDCP.
