MAKING CONNECTIONS
ANTENNA/
CABLE IN
VHF Antenna
UHF Antenna
Antenna
Coaxial (75Ω)
Terminal
(*Not Provided)

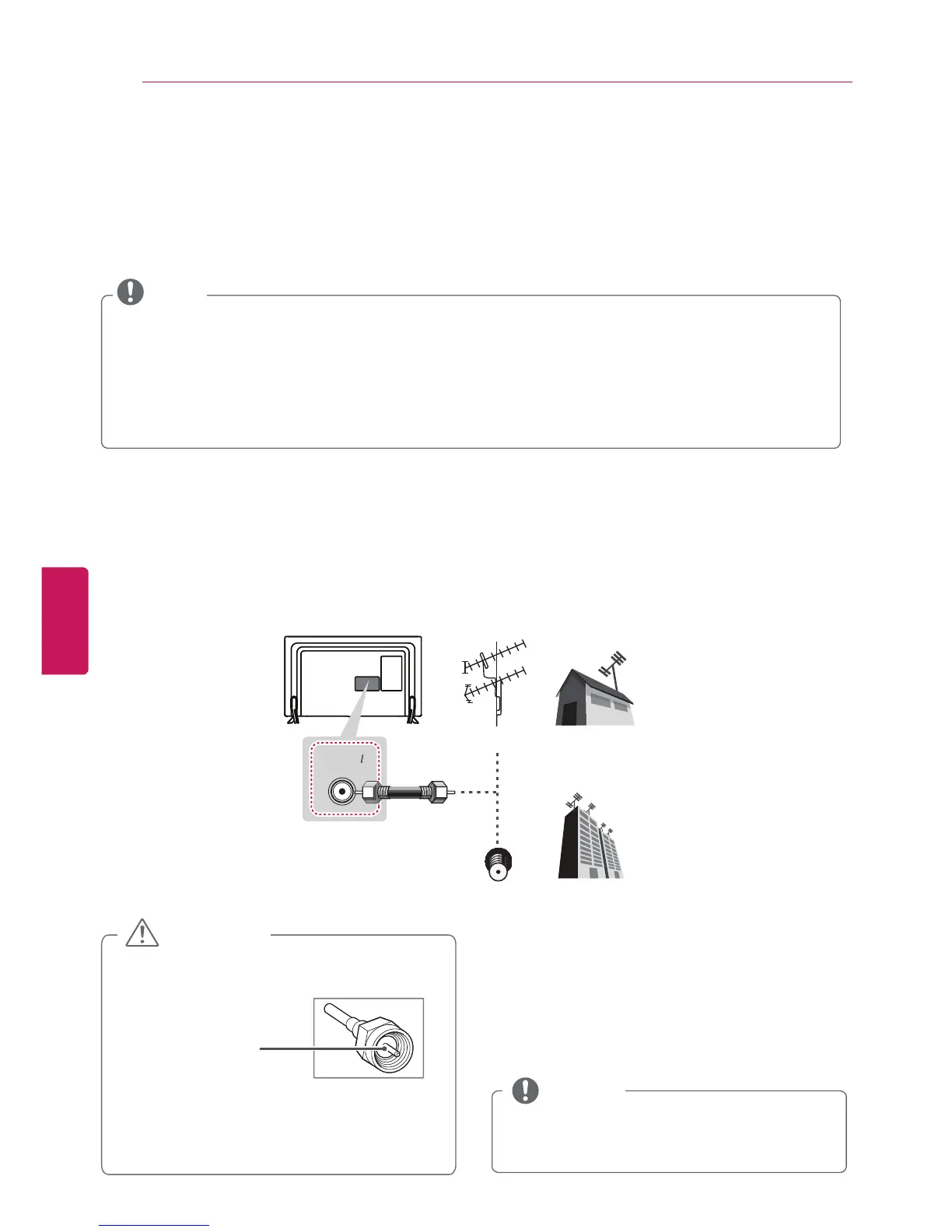

MAKING CONNECTIONS
You can connect various external devices to the TV. Supported external devices are: HD receivers,
DVD players, VCRs, audio systems, USB storage devices, PC, gaming devices, and other external
devices. For more information on external device’s connection, refer to the manual provided with
each device.
y
If you record a TV program on a DVD recorder or VCR, make sure to connect the TV signal
input cable to the TV through a DVD recorder or VCR. For more information of recording, refer
to the manual provided with the connected device.
y
The external device connections shown may differ slightly from illustrations in this manual.
y
Connect external devices to the TV regardless of the order of the TV port.
y
If you connect a gaming device to the TV, use the cable supplied with the gaming device.
y
Refer to the external equipment’s manual for operating instructions.
NOTE
Connecting to an antenna or cable
Connect an antenna, cable, or cable box to watch TV while referring to the following. The illustrations
may differ from the actual items. And a RF cable is optional.
y
Make sure not to bend the copper wire of
the RF cable.
y
Complete all connections between
devices, and then connect the power cord
to the power outlet to prevent damage to
your TV.
CAUTION
Copper wire
y
Use a signal splitter to use 2 TVs or more.
y
DTV Audio Supported Codec: MPEG,
Dolby Digital.
NOTE
