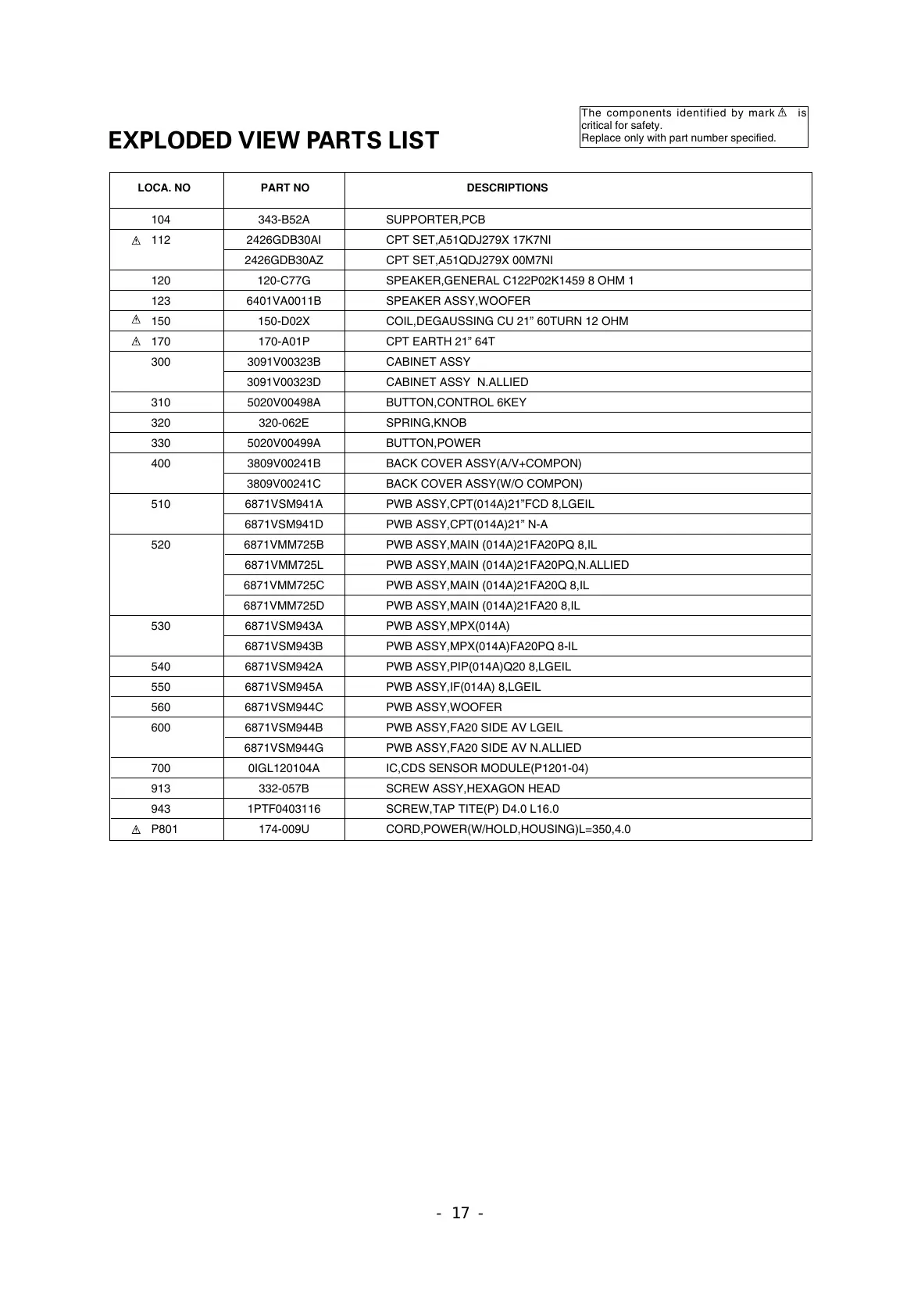

EXPLODED VIEW PARTS LIST
LOCA. NO PART NO DESCRIPTIONS
104 343-B52A SUPPORTER,PCB
112 2426GDB30AI CPT SET,A51QDJ279X 17K7NI
2426GDB30AZ CPT SET,A51QDJ279X 00M7NI
120 120-C77G SPEAKER,GENERAL C122P02K1459 8 OHM 1
123 6401VA0011B SPEAKER ASSY,WOOFER
150 150-D02X COIL,DEGAUSSING CU 21” 60TURN 12 OHM
170 170-A01P CPT EARTH 21” 64T
300 3091V00323B CABINET ASSY
3091V00323D CABINET ASSY N.ALLIED
310 5020V00498A BUTTON,CONTROL 6KEY
320 320-062E SPRING,KNOB
330 5020V00499A BUTTON,POWER
400 3809V00241B BACK COVER ASSY(A/V+COMPON)
3809V00241C BACK COVER ASSY(W/O COMPON)
510 6871VSM941A PWB ASSY,CPT(014A)21”FCD 8,LGEIL
6871VSM941D PWB ASSY,CPT(014A)21” N-A
520 6871VMM725B PWB ASSY,MAIN (014A)21FA20PQ 8,IL
6871VMM725L PWB ASSY,MAIN (014A)21FA20PQ,N.ALLIED
6871VMM725C PWB ASSY,MAIN (014A)21FA20Q 8,IL
6871VMM725D PWB ASSY,MAIN (014A)21FA20 8,IL
530 6871VSM943A PWB ASSY,MPX(014A)
6871VSM943B PWB ASSY,MPX(014A)FA20PQ 8-IL
540 6871VSM942A PWB ASSY,PIP(014A)Q20 8,LGEIL
550 6871VSM945A PWB ASSY,IF(014A) 8,LGEIL
560 6871VSM944C PWB ASSY,WOOFER
600 6871VSM944B PWB ASSY,FA20 SIDE AV LGEIL
6871VSM944G PWB ASSY,FA20 SIDE AV N.ALLIED
700 0IGL120104A IC,CDS SENSOR MODULE(P1201-04)
913 332-057B SCREW ASSY,HEXAGON HEAD
943 1PTF0403116 SCREW,TAP TITE(P) D4.0 L16.0
P801 174-009U CORD,POWER(W/HOLD,HOUSING)L=350,4.0
The components identified by mark is
critical for safety.
Replace only with part number specified.
To Next Page
