EXPLODED VIEWS

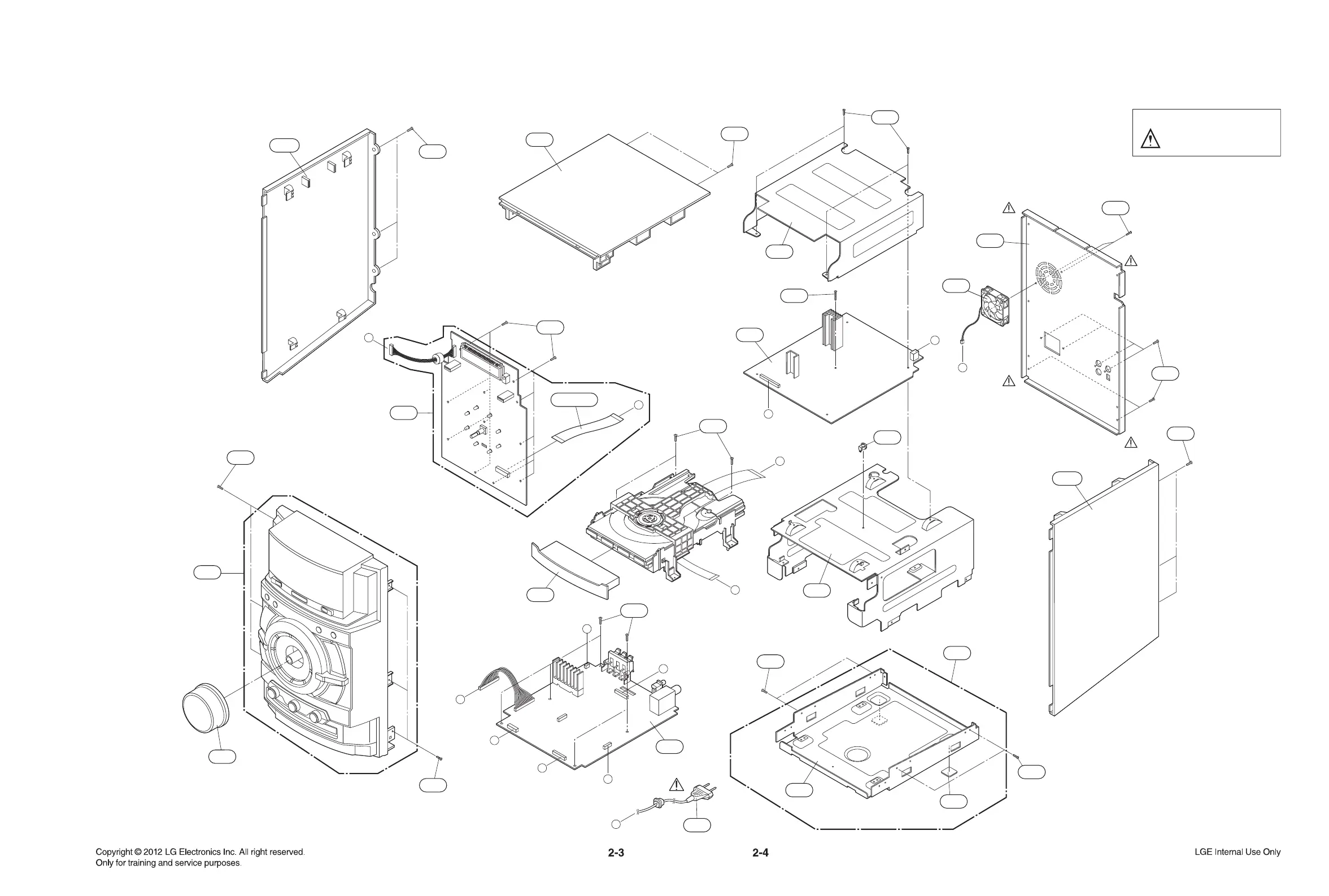

1. CABINET AND MAIN FRAME SECTION (CM4520)
D
C
F
A
A
E
B
D
F
B
C
E
G
464
464
464
464
464
464
464
464
460
464
A44
451
260L
261
464
264
CABLE2
300
A46
273
265
A47
FRONT
SMPS
MAIN
260R
274
276
464
A43
A42
251
259
464
262
279
G
NOTES)
THE EXCLAMATION POINT WITHIN AN
EQUILATERAL TRIANGLE IS INTENDED
TO ALERT THE SERVICE PERSONNEL
TO THE PRESENCE OF IMPORTANT
SAFETY INFORMATION IN SERVICE
LITERATURE.
13
15
Table of Contents
Section 1 Summary
3
Default Chapter
3
Table of Contents
3
Servicing Precautions
4
Esd Precautions
6
Service Information for Eeprom
7
1 Audio Program
8
Program Download Guide
8
400 CD Program
9
3 Eq Program
10
Specifications
11
Section 2 Cabinet & Main Chassis
12
Exploded Views
14
Cabinet and Main Frame Section (Cm4520)
14
Mechanism Deck Section (Dp-12Am)
15
Packing Accessory Section
16
Speaker Section
17
Section 3 Electrical
20
One Point Repair Guide
21
Power
21
Booting When Power on the Set
23
Vfd Is Not Displayed When Power on the Set
24
Operation of MD
26
Sound
31
Audio Electrical Troubleshooting Guide
35
Power (Smps)
35
Μ-COM PART CHECK
39
Ic101(M24C16) Check
39
Fld Display Check
40
Pwm Modulation Check
41
Power Amp Part Check
43
Tuner / aux Function Check
44
Tuner Function Check
45
Cdp Electrical Troubleshooting Guide
46
CD Function
46
Double Usb Function
47
Waveforms
48
Wiring Diagram
52
Block Diagrams
53
Overall Block Diagram
53
Smps Block Diagram
54
Circuit Diagrams
55
Smps Circuit Diagram
55
Main - Dsp Circuit Diagram
56
Main - Micom Circuit Diagram
57
Main - Amp Circuit Diagram
58
Main - Servo Circuit Diagram
59
Front Circuit Diagram
60
Circuit Voltage Chart
61
Printed Circuit Board Diagrams
63
Smps P.C.board
63
Main P.C.board
64
Front P.C.board
65
