Connecting to
speakers
Attaching the speakers to the
unit

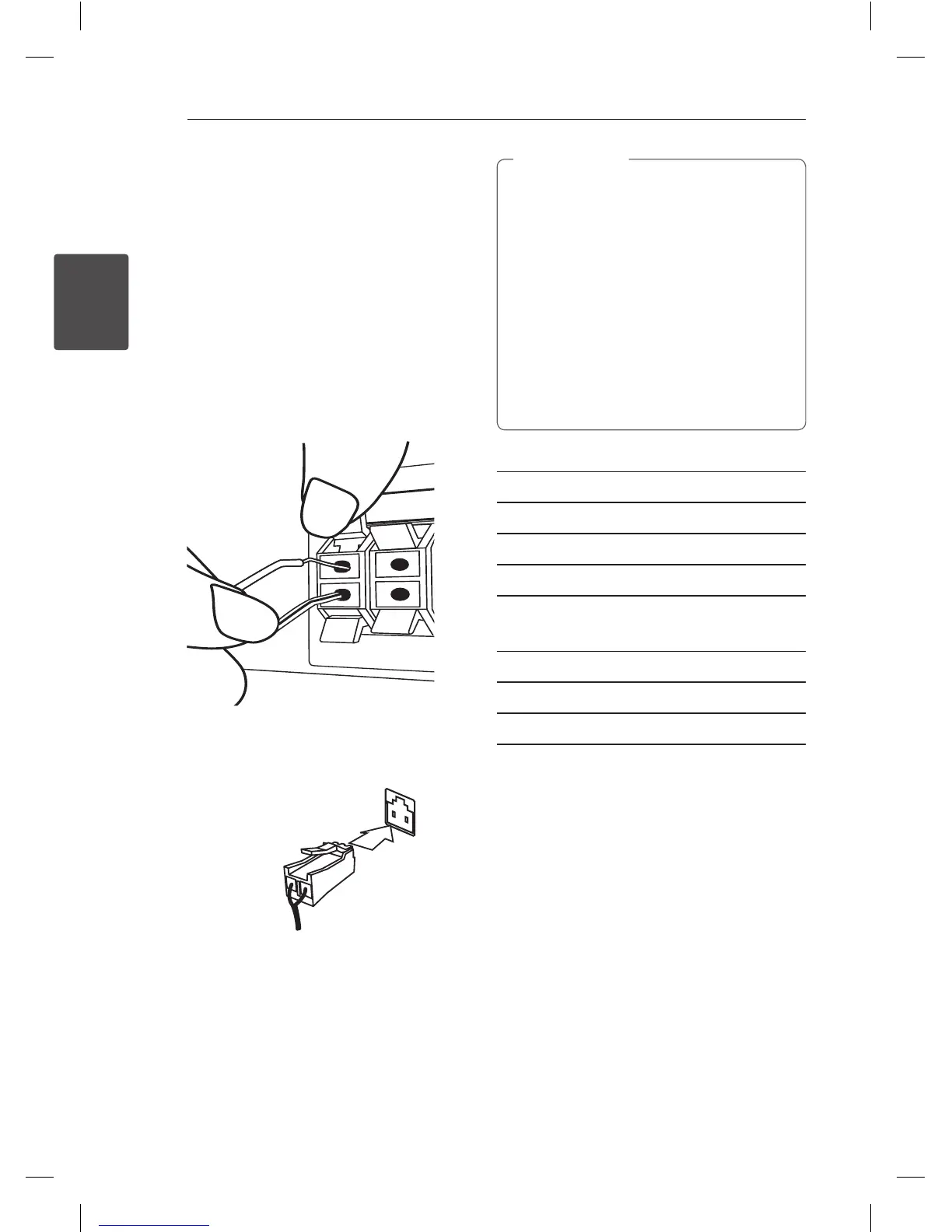

To connect the cable to the unit, press each plastic
nger pad to open the connection terminals on the
unit. Insert the wire and release the nger pad.
Connect the black stripe of each wire to the
terminals marked - (minus) and the other end to
the terminals marked + (plus).
Connect a woofer cord to the player.
When connecting a woofer cord to the player,
insert the connector until it clicks.
• Be careful to make sure children do not put
their hands or any objects into the *speaker
duct.
*Speaker duct: A hall for plentiful bass
sound on speaker cabinet (enclosure)
• The speakers contain magnet parts, so color
irregularity may occur on the TV screen or
PC monitor screen. Please use the speakers
far away from either TV screen or PC
monitor.
• Do not connect any other speaker except
sub woofer speaker to the sub woofer
connection terminal on the rear of the unit.
>
Caution
CM4530
Color Speaker
Orange Sub woofer
Red Front
White Front
CM4630/CM4430/CM4330
Color Speaker
Red Front
White Front
