19INSTALLATION
ENGLISH
2 Press the adapter duct c onto the blower
housing and secure it to the base of the dryer
as shown.
3 Insert the 4" (10.2 cm) elbow d through the
rear opening and press it onto the adapter
duct. Be sure that the male end of the elbow
faces down through the hole in the bottom of
the dryer. Secure it in place with duct tape.
Attach the cover plate
e to the back of the
dryer with the included screw.
Stacking the Appliance
Tools Required
• Phillips screwdriver
Stacking Kit Installation
• The weight of the appliance and the height of
installation make this stacking procedure too
risky for one person. Two or more people are
required when installing the stacking kit.
• Place the washer on a solid, stable, level floor
capable of supporting the weight of both
appliances.
• Do not stack the washer on top of the dryer.
• If appliances are already installed, disconnect
them from all power, water and drain
connections.
This stacking kit includes:
• Two (2) side rails
• One (1) front rail
• Four (4) screws
To ensure safe and secure installation, please
observe the following instructions.

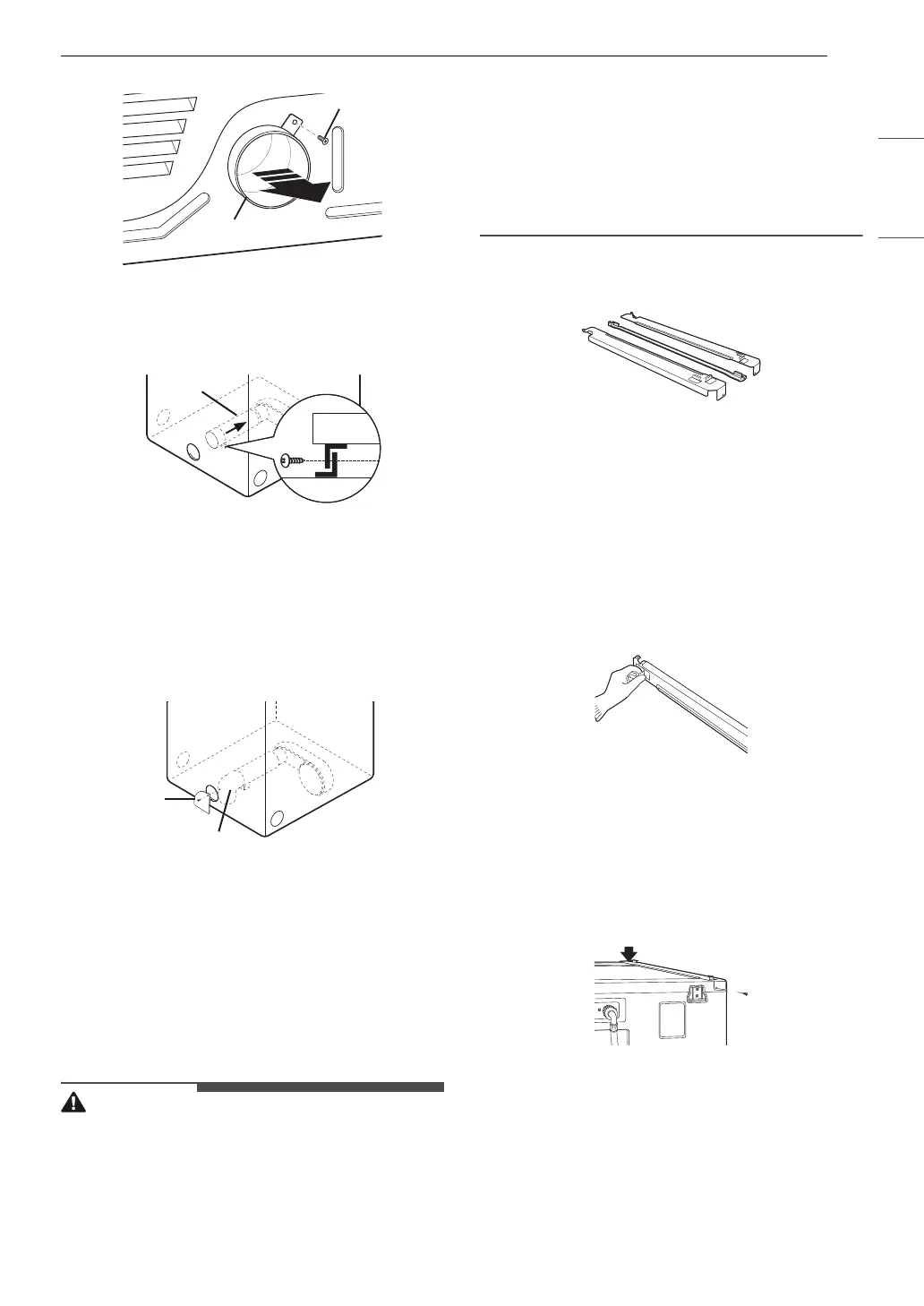

1 Make sure the surface of the washer is clean
and dry. Remove paper backing from the tape
on one of the stacking kit side brackets.
2 Fit the side bracket to the side of the washer
top as shown. Firmly press the adhesive area
of the bracket to the washer surface. Secure
the side bracket to the washer with a screw on
the back side of the bracket. Repeat steps 1
and 2 to attach the other side bracket.
3 Place the appliance on top of the washer,
fitting the dryer feet into the side brackets as
illustrated. Avoid finger injuries; do not allow
fingers to be pinched between the washer
and the appliance. Slowly slide the appliance
toward the back of the washer until the side
bracket stoppers catch the dryer feet.
