Dimensions and Clearances
The following clearances are recommended for the appliance.
• Additional clearances should be considered for ease of installation and servicing.
• Additional clearances should be considered on all sides of the dryer to reduce noise transfer.

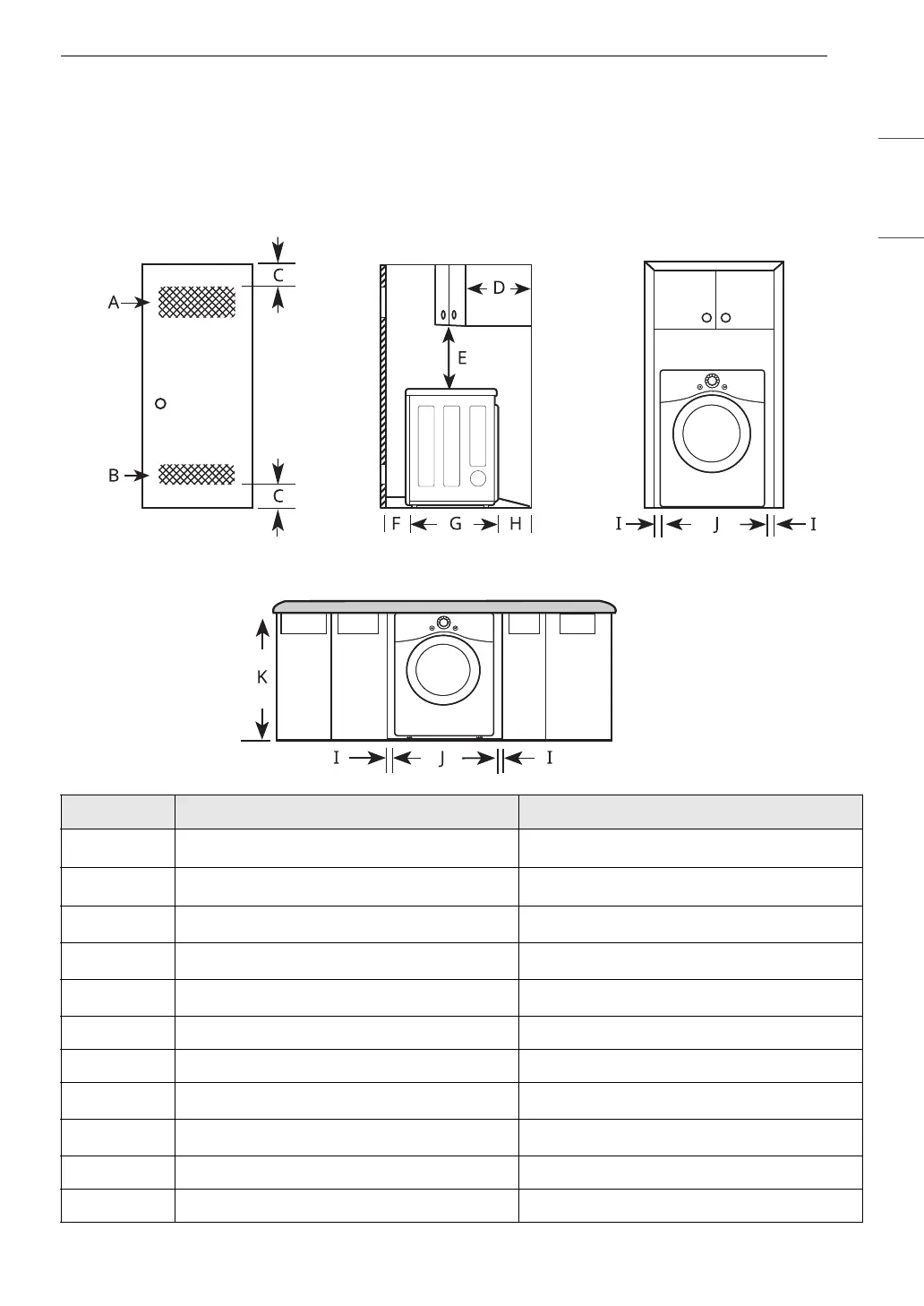

Installation Spacing for Recessed Area or Closet Installation
- Description Dimension/Clearance
A Upper Ventilation Opening
2 48 sq. in. (310 cm
2
)
B Lower Ventilation Opening
2 24 sq. in. (155 cm
2
)
C Distance to Ventilation Opening
2 3″ (76 mm)
D Overhead Cabinet Depth
1 14″ (356 mm)
E Distance to the Overhead Cabinet/Shelf
2 18″ (457 mm)
F Front Clearance 1″ (25 mm)
G Depth 30 1/8″ (765 mm)
HBack Clearance
2 5″ (127 mm)
I Side Clearance
2 1″ (25 mm)
JWidth 27″ (686 mm)
K Height of Cabinet Opening 39″ (990 mm)
