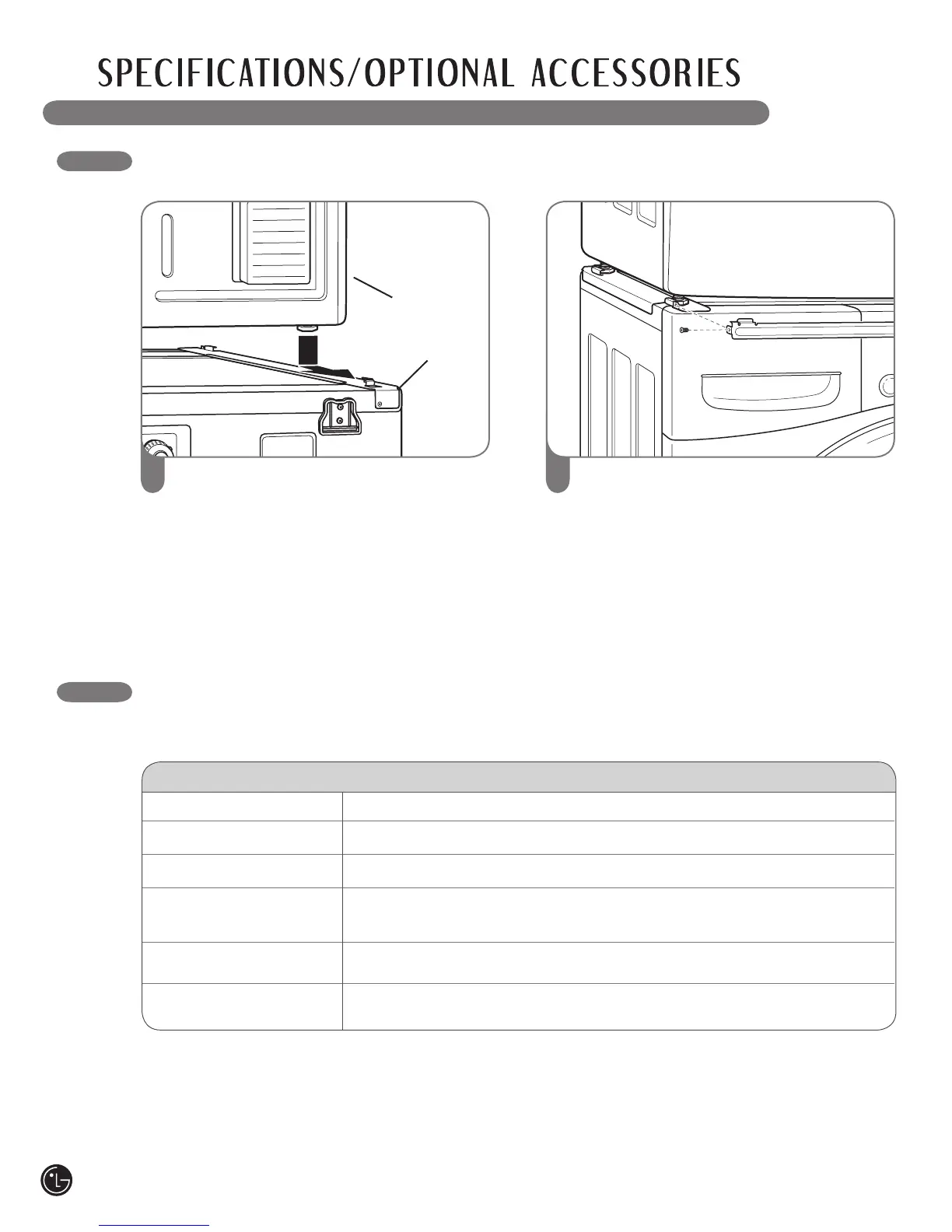

STACKING KIT INSTALLATION (cont.)
3
Place the dryer on top of the washer by
fi tting the dryer feet into the side brackets as
illustrated. Avoid fi nger injuries; do not allow
fi ngers to be pinched between the washer
and dryer. Slowly slide the dryer toward the
back of the washer until the side bracket
stoppers catch the dryer feet.
4
Insert the front rail between the bottom of
the dryer and the top of the washer. Push the
front rail toward the back of the washer until it
comes in contact with the side rail stoppers.
Install the two remaining screws to secure the
front rail to the side rails.
KEY DIMENSIONS AND SPECIFICATIONS
Dryer Models DLE2301W, DLE2301R, DLE2301S, DLG2302W, DLG2302R, and DLG2302S
Description Dryer
Electrical Requirements* Please refer to the rating label regarding detailed information.
Gas Requirements* NG: 10–13 in. WC/LP: 10–13 in. WC (Gas Models only)
Dimensions 27"(W) X 30"(D) X 38
11
/16"(H), 50
"
(D with door open)
68.6 cm (W) X 76.1 cm (D) X 98.3 cm (H), 127 cm (D with door open)
Net Weight 126 lb. (57.2 kg)
Drying Capacity IEC 7.3 cu. ft. (22.5 lbs./10.2 kg)
The appearance and specifi cations listed in this guide may vary due to constant product improvements.
*Refer to the rating plate on your dryer.
