1.

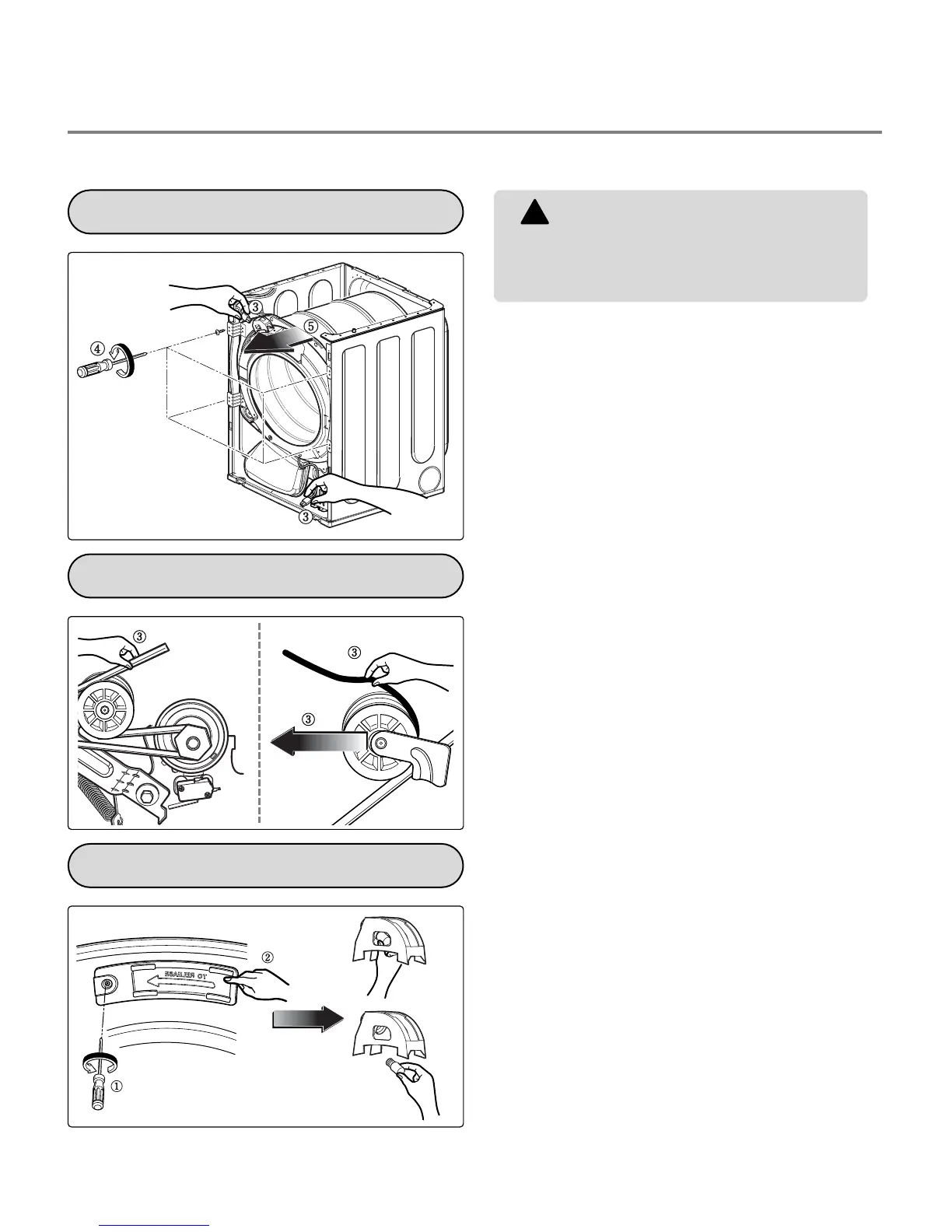

Disassemble the top plate.
2.
Remove Cover Cabinet.
3.
Disconnect the door lamp and electrode
sensor connector.
4.
Remove 4 screws.
5.
Disassemble the Tub Drum [Front].
TUB DRUM [FRONT]
1.
Disassemble the top plate.
2.
Remove the Cabinet Cover and
Tub drum [front].
3.
Loosen belt from motor and idler pulleys.
4.
Carefully remove the drum.
DRUM ASSEMBLY
1.
Disassemble the door.
2.
Hold the lamp shield in place while removing the
screw.
3.
Slide the shield up and remove.
4.
Remove the bulb and replace with a 15 watt,
120 volt candelabra-base bulb.
5.
Replace the lamp shield and screw.
CHANGING THE DRUM LAMP
When you disassemble the lamp connector, be
sure to take gloves and careful cabinet edge.
Failure to do so can cause serious injury.
