Part 6 ELECTRICAL
REQUIREMENTS
FOR GAS DRYERS
120
Volt,
60
Hertz,
with
3-Prong Grounding Plug
Following
are additional instructions
regarding
electrical connections and
requirements
for
gas dryers.
Important Warning:
To
help prevent
fire,
electric
shock,
serious
injury
or
death,
the
wiring
and
grounding
must conform to the latest edition of the
National
Electrical
Code,
ANSI/NFPA
70,
or the
Canadian
Electrical
Code,
CSA
C22.1,
and all
applicable
local
regulations.
Please contact a
qualified
electrician to check
your
home's
wiring
and fuses to ensure that
your
home has
adequate
electrical
power
to
operate
the
dryer.
Electrical
Requirements
for Your
Dryer:
!
a)
Please note that the
wiring diagram
is
provided
inside the
dryer
control
hood.
Label all
wires
prior
to disconnection
when
servicing
the
dryer,
because
wiring
errors can cause serious
injury
to
you
and
your dryer.
b)
Your
dryer
is
designed
to be used on a
separate
branch,
polarized,
three-wire,
effectively
grounded,
120
Volt,
60
Hertz,
AC
(alternating
current)
circuit
protected by
a
15
Ampere
fuse,
equivalent
fusetron or circuit
breaker.
c)
Use
separately
fused circuits for
washers
and
dryers,
and
DO NOT
operate
a
washer
and a
dryer
on the same
circuit.
a)
The
dryer
has a
three-prong plug
to
help guard
against
shock.
The
plug
should be
plugged
directed into a
properly grounded three-prong
receptacle
that is rated
120 Volts AC
(alternating
current)
15
Amps.
This
plug,
in order to be
properly
and
fully
effective,
must be
plugged
into
a
properly
installed outlet that is
grounded
in
accordance
with
all local codes and
ordinances.
b)
The
dryer
must be
grounded
in order to reduce
the risk of electric
shock,
including
a
malfunction or
breakdown.
c)
If
your laundry
room does not meet the
specifications required by
this
manual,
or if
you
are uncertain
whether
or not
your laundry
room
meets these
specifications, please
have
a
qualified
service
person
or
company,
for
example
a
qualified
electrician or
your
local electric
company,
review
your laundry
room's electrical
supply
for
any problems.
WARNING!
Do not overload the circuit
by operating
other
appliances
on the same circuit when
this
appliance
is
operating, by using
an
extension cord to connect the
dryer
to the
power
source,
or
by using any
adapter
to
allow additional cords to connect to the
same outlet.
!

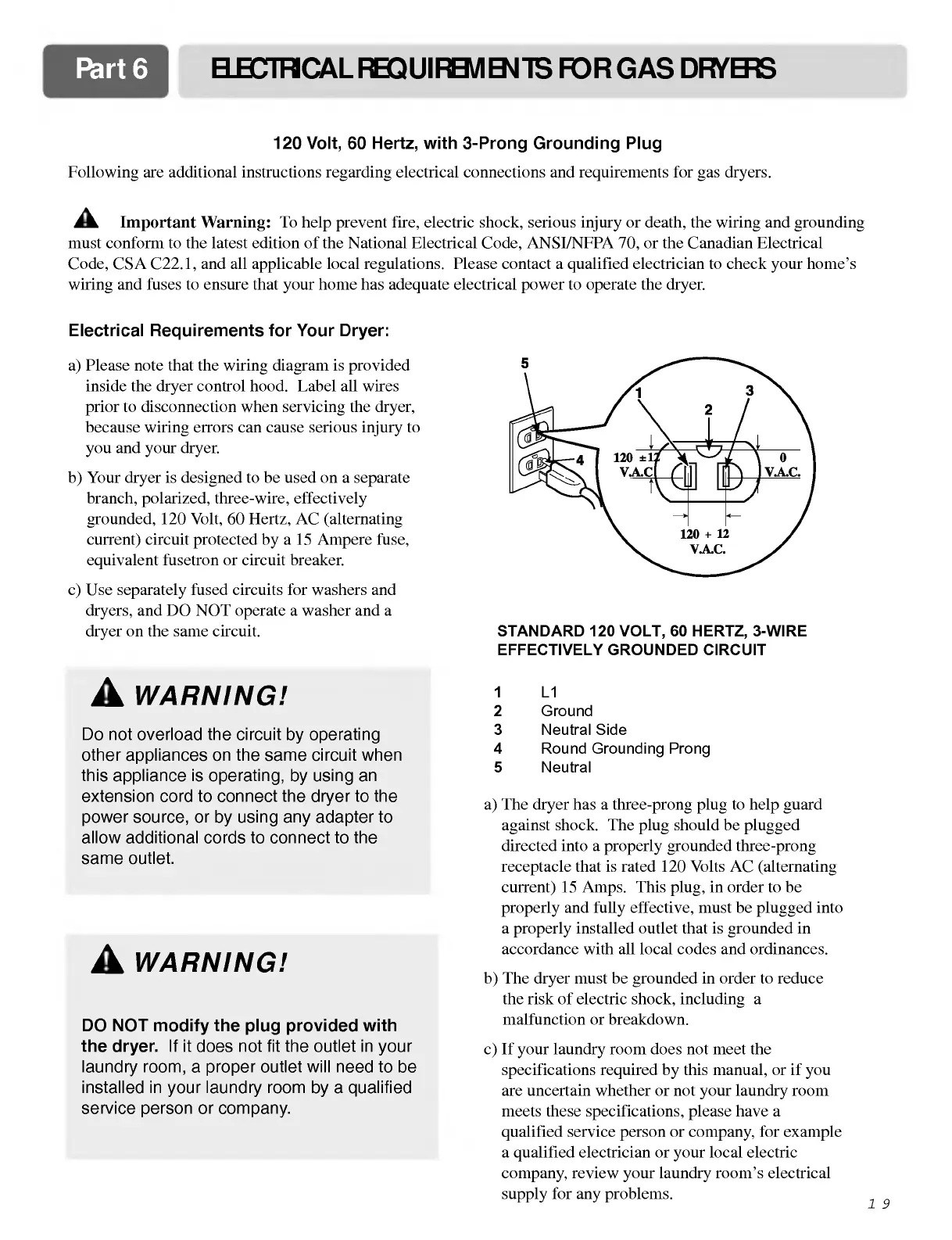

STANDARD 120
VOLT,
60
HERTZ,
3-WIRE
EFFECTIVELY GROUNDED CIRCUIT
1L1
2 Ground
3 Neutral Side
4 Round
Grounding Prong
5 Neutral
WARNING!
DO NOT
modify
the
plug provided
with
the
dryer.
If it
does not
fit
the outlet
in
your
laundry
room,
a
proper
outlet
will
need to be
installed
in
your laundry
room
by
a
qualified
service
person
or
company.
!
