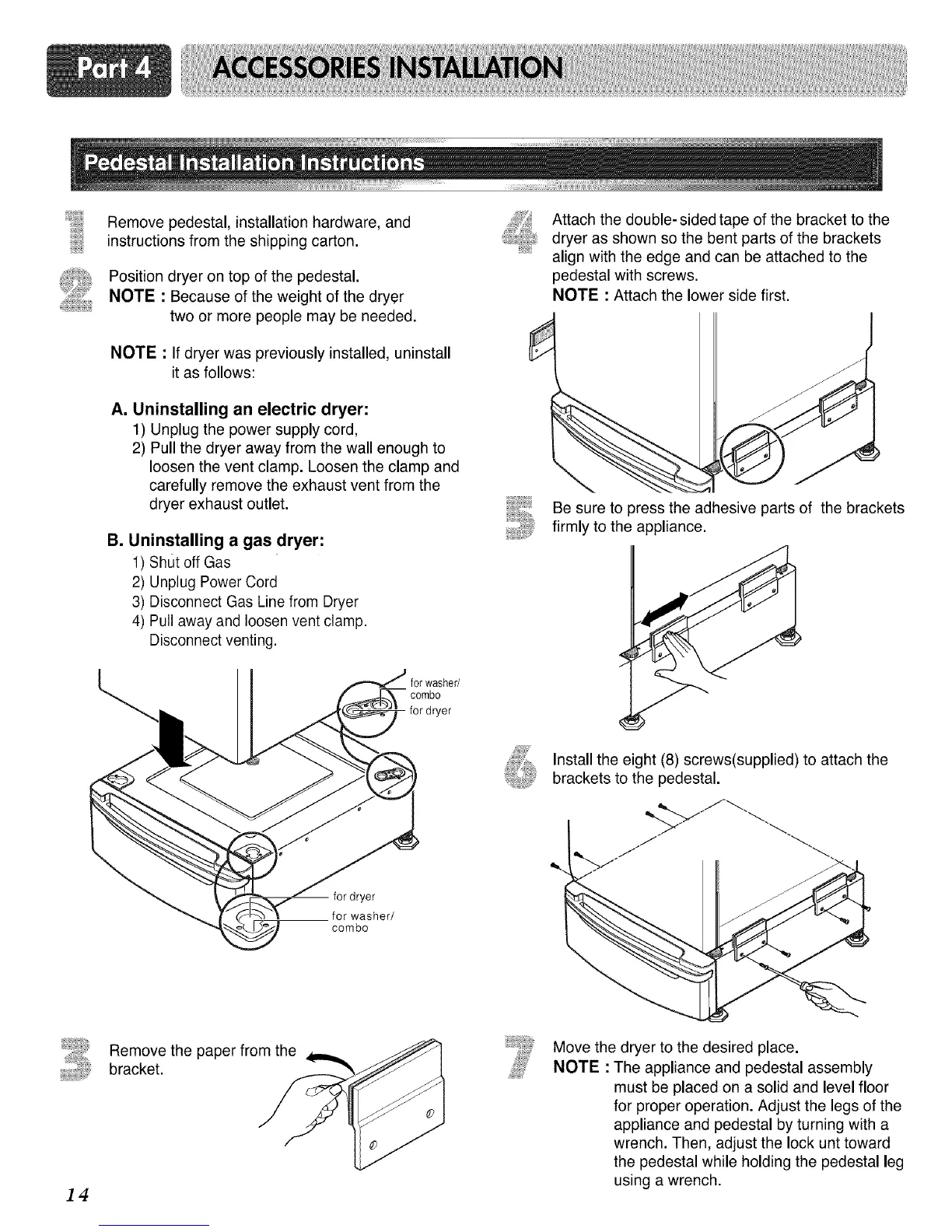

Remove pedestal, installation hardware, and
instructions from the shipping carton.
Position dryer on top of the pedestal.
NOTE • Because of the weight of the dryer
two or more people may be needed.
NOTE : If dryer was previously installed, uninstall
it as follows:
A. Uninstalling an electric dryer:
1) Unplug the power supply cord,
2) Pull the dryer away from the wall enough to
loosen the vent clamp. Loosen the clamp and
carefully remove the exhaust vent from the
dryer exhaust outlet.
B. Uninstalling a gas dryer:
1) Shut off Gas
2) Unplug Power Cord
3) Disconnect Gas Line from Dryer
4) Pull away and loosen vent clamp.
Disconnect venting.
Attach the double-sided tape of the bracket to the
dryer as shown so the bent parts of the brackets
align with the edge and can be attached to the
pedestal with screws.
NOTE : Attach the lower side first.
I
Be sure to press the adhesive parts of the brackets
firmly to the appliance.
for dryer
washer/
combo
combo
Install the eight (8) screws(supplied) to attach the
brackets to the pedestal.
/4
Remove the paper from the
bracket.
Move the dryer to the desired place.
NOTE : The appliance and pedestal assembly
must be placed on a solid and level floor
for proper operation. Adjust the legs of the
appliance and pedestal by turning with a
wrench. Then, adjust the lock unt toward
the pedestal while holding the pedestal leg
using a wrench.
