Installation with optional pedestal base or stacking kit

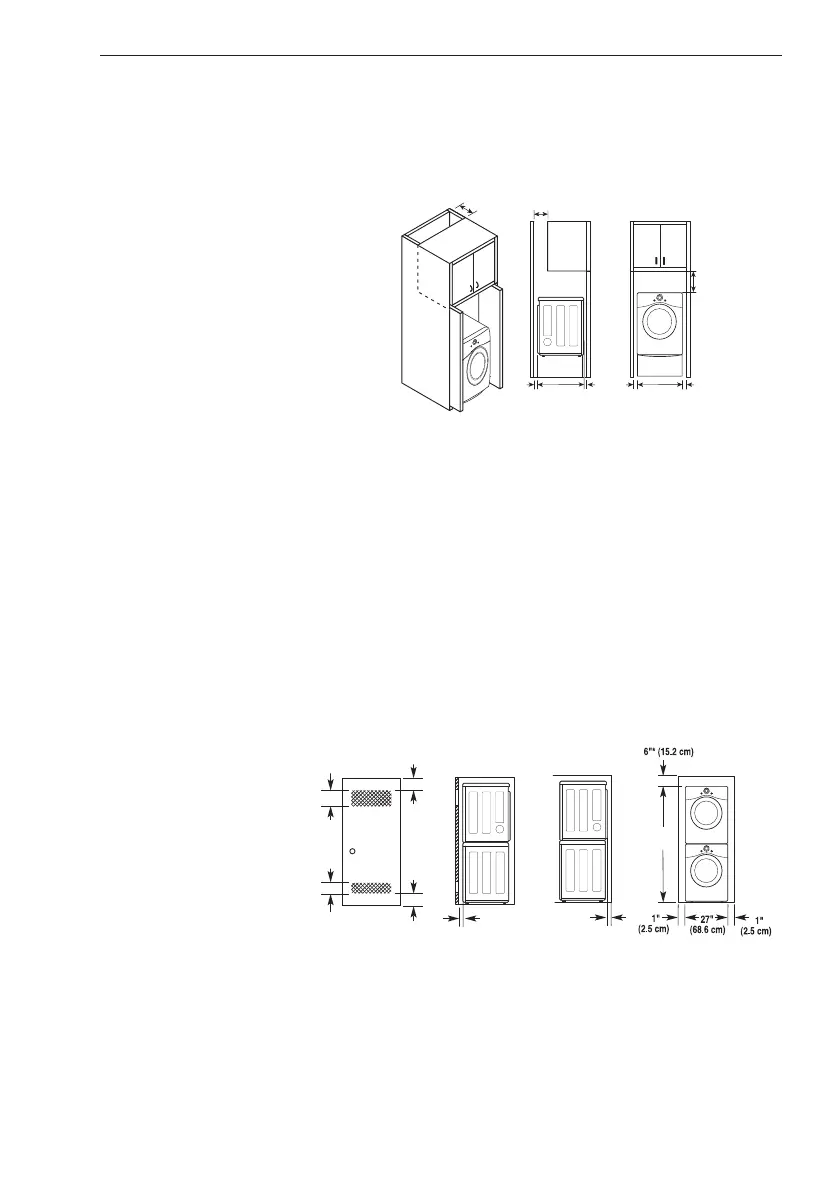

RECOMMENDED INSTALLATION SPACING FOR CABINET INSTALLATION
t'PSDBCJOFUJOTUBMMBUJPOXJUIBEPPSNJOJNVNWFOUJMBUJPOPQFOJOHTJOUIFUPQPGUIFDBCJOFUBSFSFRVJSFE
*Required spacing
** For side or bottom venting,
JODIFTDNTQBDJOHJTBMMPXFE
CLOSET VENTILATION REQUIREMENTS
Closets with doors must have both an upper and lower vent to prevent heat and moisture buildup in the closet. One
VQQFSWFOUPQFOJOHXJUIBNJOJNVNPQFOJOHPGTRJODN

NVTUCFJOTUBMMFEOPMPXFSUIBOGFFUBCPWFUIF
GMPPS0OFMPXFSWFOUPQFOJOHXJUIBNJOJNVNPQFOJOHPGTRJODN

) must be installed no more than one
foot above the floor. One example shown uses vent grilles in the door.
RECOMMENDED INSTALLATION SPACING FOR RECESSED OR CLOSET INSTALLATION, WITH STACKED WASHER
AND DRYER
t5IFEJNFOTJPOTTIPXOBSFGPSUIFSFDPNNFOEFETQBDJOH
*Required spacing
** For side or bottom venting,
JODIFTDNTQBDJOHJTBMMPXFE
30"
(76.1 cm)
5"**
(12.7 cm)
1"**
(2.5 cm)
1"
(2.5 cm)
1"
(2.5 cm)
27"
(68.6 cm)
9"**
(22.9 cm)
7"* (17.8 cm)
7"* (17.8 cm)
1"* (2.5 cm)
5
"**
(14 cm)
2/4
77
2/4
"
(196.8 cm)
48 in.
2
*
(310 cm
2
)
3"* (7.6 cm)
3"* (7.6 cm)
24 in.
2
*
(155 cm
2
)
INSTALLATION INSTRUCTIONS

LG DLEX3170 Series Specifications

General

Brand	LG
Model	DLEX3170 Series
Category	Dryer
Language	English
