INSTALLATION INSTRUCTIONS
Installation with optional pedestal base or stacking kit

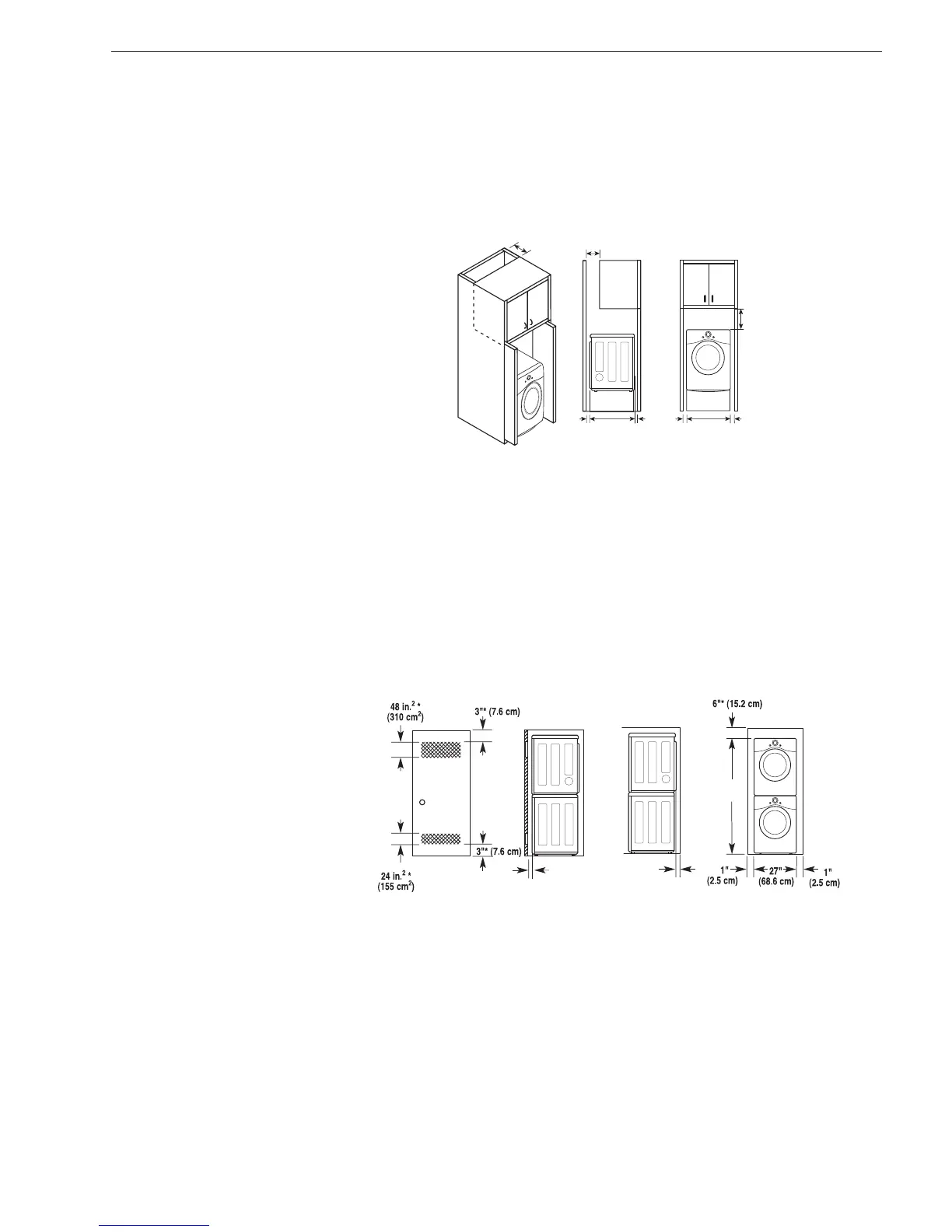

RECOMMENDED INSTALLATION SPACING FOR CABINET INSTALLATION
tFor cabinet installation with a door, minimum ventilation openings in the top of the cabinet are required.
*Required spacing
**For side or bottom venting,
JODIFTDNTQBDJOHJTBMMPXFE
CLOSET VENTILATION REQUIREMENTS
Closets with doors must have both an upper and lower vent to prevent heat and moisture buildup in the closet. One upper vent opening
XJUIBNJOJNVNPQFOJOHPGTRJODN

NVTUCFJOTUBMMFEOPMPXFSUIBOGFFUBCPWFUIFGMPPS0OFMPXFSWFOUPQFOJOHXJUIB
NJOJNVNPQFOJOHPGTRJODN

) must be installed no more than one foot above the floor. One example shown uses vent grilles in
the door.
RECOMMENDED INSTALLATION SPACING FOR RECESSED OR CLOSET INSTALLATION, WITH STACKED WASHER AND DRYER
tThe dimensions shown are for the recommended spacing.
*Required spacing
**For side or bottom venting,
JODIFTDNTQBDJOHJTBMMPXFE
30"
(76.1 cm)
5"**
(12.7 cm)
1"**
(2.5 cm)
1"
(2.5 cm)
1"
(2.5 cm)
27"
(68.6 cm)
9"**
(22.9 cm)
7"* (17.8 cm)
7"* (17.8 cm)
1"* (2.5 cm)
5
"**
(14 cm)
1/2
77
1/2
"
(196.8 cm)
