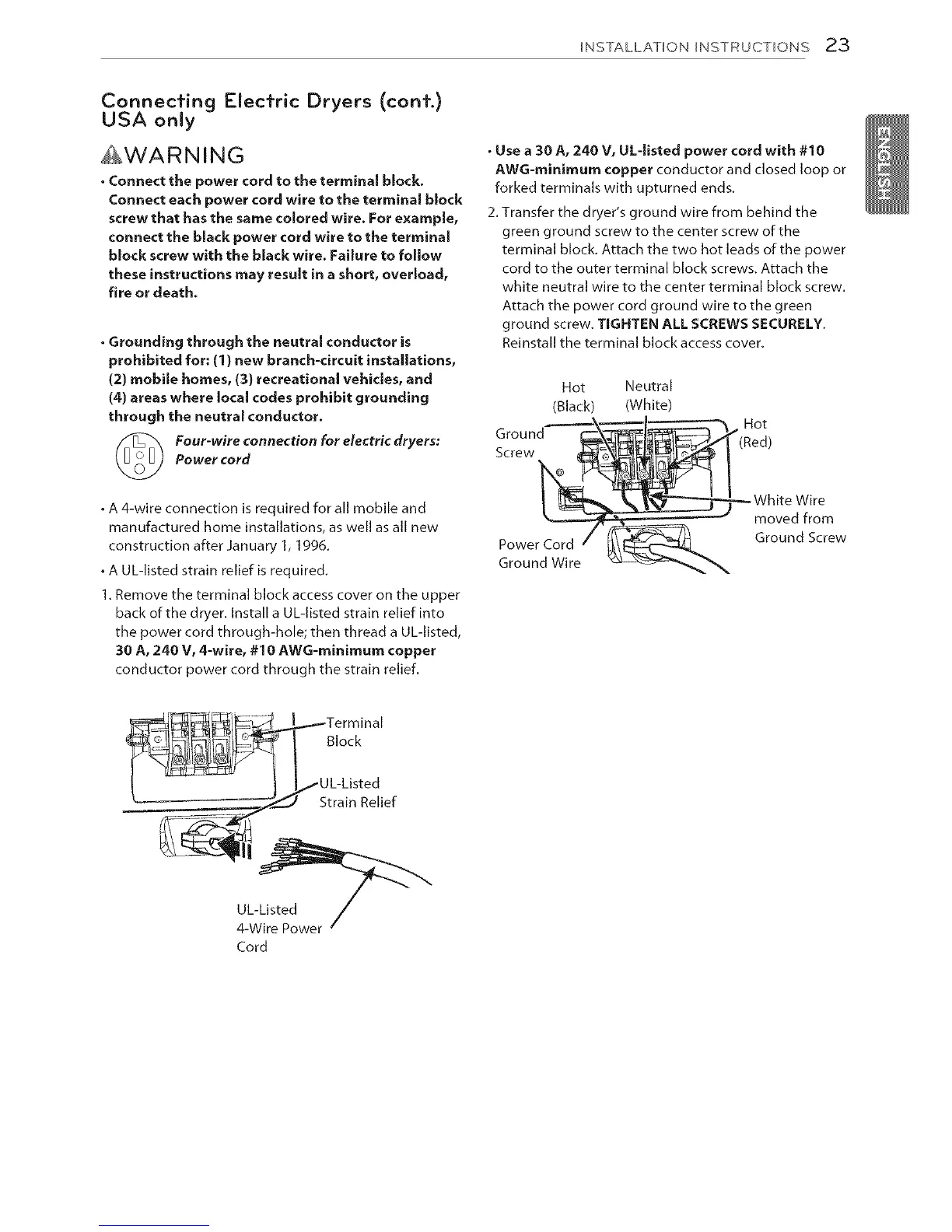

INSTALLAiTIONINSTRUCTIONS23
Connecfing Elecfric Dryers (conf.)
USA only
_WARNING
• Connect the power cord to the terminal block.
Connect each power cord wire to the terminal block
screw that has the same colored wire. For example,
connect the black power cord wire to the terminal
block screw with the black wire. Failure to follow
these instructions may result in a short, overload,
fire or death.
• Grounding through the neutral conductor is
prohibited for: (1) new branch-circuit installations,
(2) mobile homes, (3) recreational vehicles, and
(4) areas where local codes prohibit grounding
through the neutral conductor,
Four-wire connection for electric dryers:
Power cord
• A 4-wire connection is required for all mobile and
manufactured home installations, as well as all new
construction after January 1, 1996.
• A ULqisted strain relief is required.
1.Remove the terminal block access cover on the upper
back of the dryer. Install a UL-listed strain relief into
the power cord through-hole; then thread a UL-listed,
30 A, 240 V, 4-wire, #10 AWG-minimum copper
conductor power cord through the strain relief.
_r_ _/_E:,,_ I_.._Terminal
I I l/uL-Listed
__ Strain Relief
Cord
. Use a 30 A, 240 V, UL-listed power cord with #10
AWG-minimum copper conductor and closed loop or
forked terminals with upturned ends.
2. Transfer the dryer's ground wire from behind the
green ground screw to the center screw of the
terminal block. Attach the two hot leads of the power
cord to the outer terminal block screws. Attach the
white neutral wire to the center terminal block screw.
Attach the power cord ground wire to the green
ground screw, TIGHTEN ALL SCREWS SECURELY.
Reinstall the terminal block access cover.
Hot Neutral
(Black) (White)
Grou nd_--_ =_=_i__ Hot
Screw I (Red)
W iv'e ;re
POoW:rdC_e, _ Ground Screw
To Next Page
