INSTRUCCIONES PARA LA INSTALACIÓN
w ADVERTENCIA


un apoyo que soporte el peso de la puerta.

la puerta o en el suelo.
LA PUERTA DE LA SECADORA ES MUY GRANDE Y PESADA. El
no seguimiento de las instrucciones siguientes puede dañar la
secadora, ocasionar daños materiales o físicos.

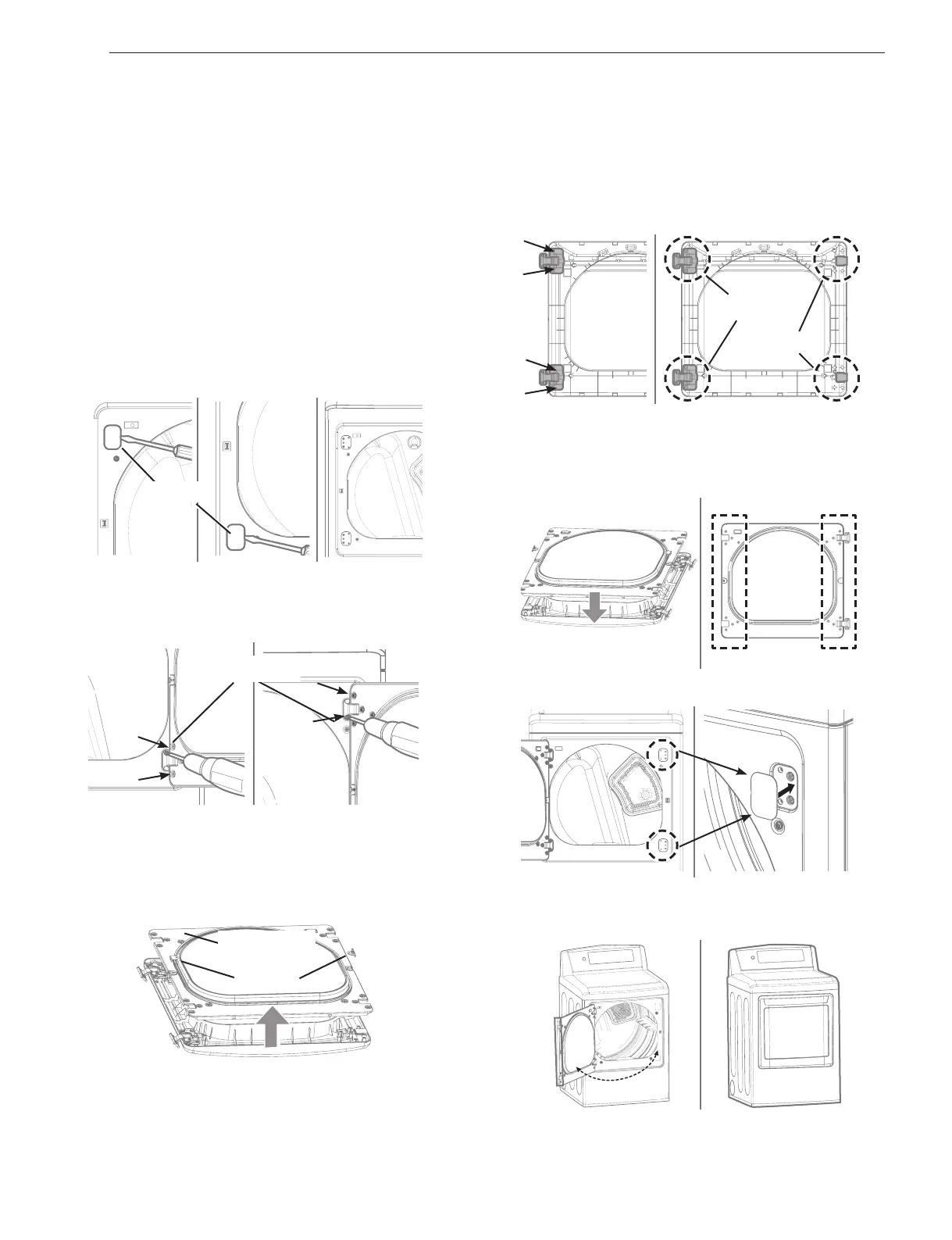

1. Abra la puerta y retire las dos cubiertas de plástico que
cubren el agujero en la zona de sujeción; para ello, presione
con cuidado hacia arriba con un destornillador de punta
plana. Guárdelas para el paso 6.
2. Mientras sujeta la puerta, retire los 4 tornillos, dos de cada
bisagra. Deje la puerta a un lado, posicionada hacia abajo
sobre una superficie protegida para evitar que se dañe.
3. Con la puerta colocada sobre una superficie protegida, retire
los 12 tornillos de cada lado de la puerta y retire el panel
interior de la puerta con un destornillador de punta plana.
Retire el enganche y la pieza, y llévelas al lado opuesto.
Inversión de la puerta
4. Retire los 4 tornillos fijando las bisagras a la estructura de la
puerta. Retire los dos rellenadores de plástico. Vuelva a instalar
las bisagras y los rellenadores en los lados opuestos a su
posición inicial.
5. Con las bisagras y los rellenadores en la nueva posición, monte
de nuevo el panel interior de la puerta en la estructura de ésta
con los tornillos retirados en el paso 3 anterior.
6. Vuelva a colocar la puerta utilizando los tornillos del paso 1,2.
6. Compruebe el giro de la puerta para asegurarse de que las
bisagras y el enganche están bien alineados y que la puerta
cierra y abre correctamente.
Cubierta de
agujero
Tornillo de
bisagra
Estructura interior
de la puerta
Enganche
Montaje de
bisagra
Tapa de
cubierta
Puerta
giratoria
