10

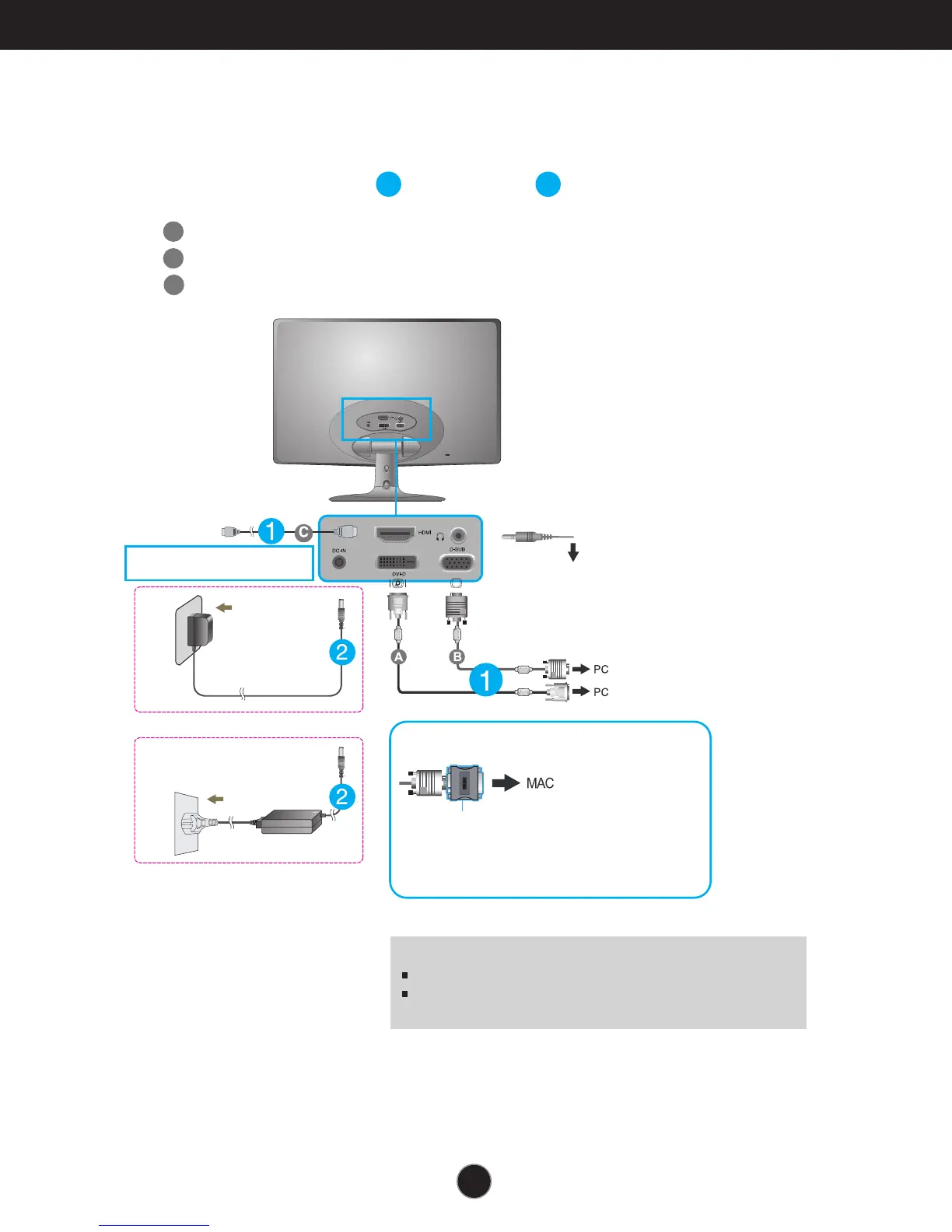

Connecting the Display
A
B
Connect DVI-D(Digital signal) Cable
Connect D-sub(Analog signal) Cable
Connect HDMI Cable
1. Before setting up the monitor, ensure that the power to the monitor, the computer
system, and other attached devices is turned off.
2.
Connect signal input cable and power cord in order, then tighten the screw
of the signal cable.
Connecting with the PC
1
2
Wall-outlet type
OR
Wall-outlet type
Mac adapter : For Apple Macintosh use, a
separate plug adapter is needed to change the
15 pin high density (3 row) D-sub VGA
connector on the supplied cable to a 15 pin 2
row connector.
When using a D-Sub signal input cable connector
for Macintosh
NOTE
This is a simplified representation of the rear view.
This rear view represents a general model; your display may
differ from the view as shown.
Varies according to model.
C
Headphone/Earphone Input
AV equipment
(Set-Top Box, DVD, Video,
Video Game Console)
* HDMI is optimized on the AV equipment.
* Not supported PC
DVI-D (This feature is not available in all countries.)
To Next Page
