Antenna connection
Connect the TV to a wall antenna socket with an RF cable (75 Ω).
• Use a signal splitter to use more than 2 TVs.
• If the image quality is poor, install a signal amplier properly to
improve the image quality.
• If the image quality is poor with an antenna connected, try to
realign the antenna in the correct direction.
• An antenna cable and converter are not supplied.
• Supported DTV Audio: MPEG, Dolby Digital, Dolby Digital Plus,
HE-AAC
• For a location that is not supported with ULTRA HD broadcasting,
this TV cannot receive ULTRA HD broadcasts directly. (Depending
on model)
Satellite dish connection
(Only satellite models)
Connect the TV to a satellite dish to a satellite socket with a satellite RF
cable (75 Ω).
CI module connection
(Depending on model)
View the encrypted (pay) services in digital TV mode.
• Check if the CI module is inserted into the PCMCIA card slot in the
right direction. If the module is not inserted properly, this can
cause damage to the TV and the PCMCIA card slot.
• If the TV does not display any video and audio when CI+ CAM is
connected, please contact to the Terrestrial/Cable/Satellite Service
Operator.
USB connection
Some USB Hubs may not work. If a USB device connected through a USB
Hub is not detected,connect it directly to the USB port on the TV.

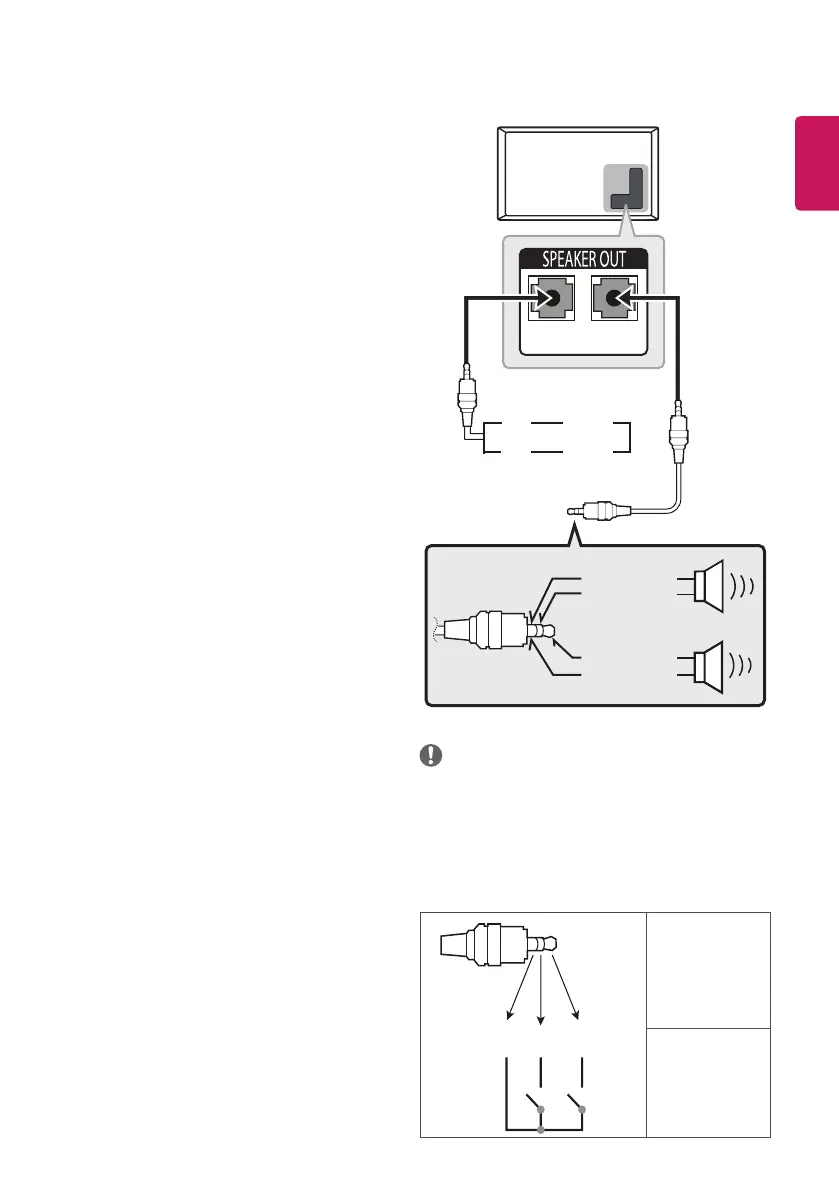

Speaker output setup
(Depending on model)
STEREO
(8Ω)
VOLUME
CONTROL
+
-
UP
DOWN
GND
RIGHT
LEFT
GND
Control port for Speaker out
NOTE
• Use only with the 3 Pole 3.5 mm Stereo Jack.
• Do not connect your headphones or earphones to the port for
connecting an external speaker.
Method of volume control port
• Cable Spec.
GND / UP / DOWN
Each Up / Down pin
is pulled to 3.3 V with
CPU GPIO.
CPU detects transition
from 3.3 V to GND level
for volume control.
