9
nstallation
I

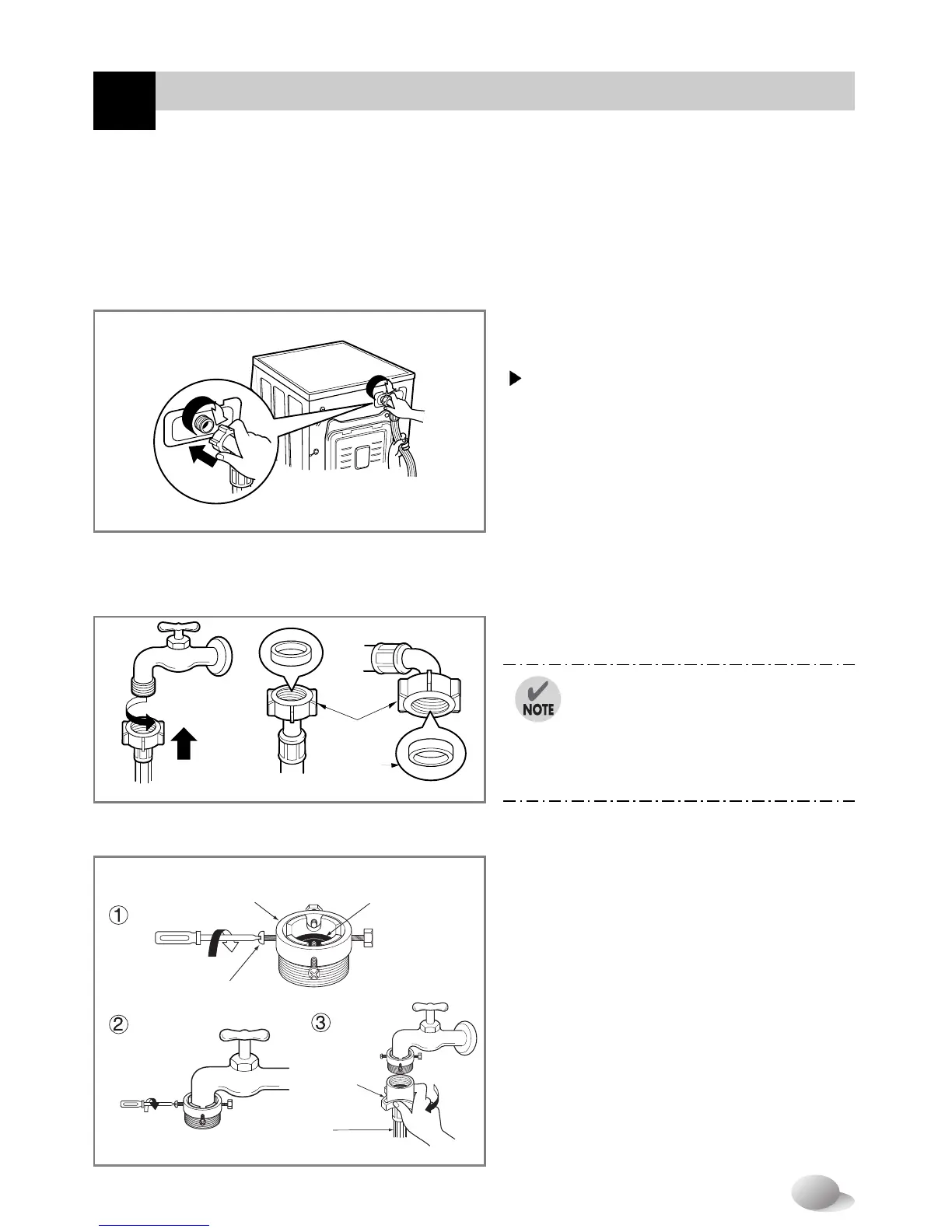

1. Unscrew the adapter ring plate and the 4
adapter retaining screws.
2. Push the adapter onto the end of the tap
so that the rubber seal forms a watertight
connection. Tighten the adapter ring plate
and the 4 screws.
3. Push the water supply hose vertically
upwards so that the rubber packing within
in the hose can adhere completely to the
tap and then tighten it by screwing it to
the right.
• Water supply pressure must be between 100 kPa and 1000 kPa (1.0 ~ 10.0 kgf / cm
2
)
• Do not strip or crossthread when connecting Inlet hose to the valve.
• If the water supply pressure is more than 1000 kPa, a decompression device should be
installed.
• Periodically check the condition of the hose and replace the hose if necessary.
Type-1: Connecting Screw-type hose to tap with thread
Type-2: Connecting Screw-type hose to tap without thread
• Make sure that there are no kinks on the
hose and that they are not crushed.
When your washer has two valves.
• The Inlet hose which has red connector is
for the hot water tap.
• If the washer has two valves, the energy is
saved by using hot valve.
1. Screw the hose connector onto water
supply tap.
■ To connect water supply hose
■ Connecting hose to water tap
Two rubber seals are supplied with
the water inlet hoses.
They are used for preventing water
leaks. Make sure the connection to
taps is sufficiently tight.
Hose
connector
Upper
connector
Rubber
packing
Plate
Water supply
hose
Fixing screw
Rubber
seal
To Next Page
