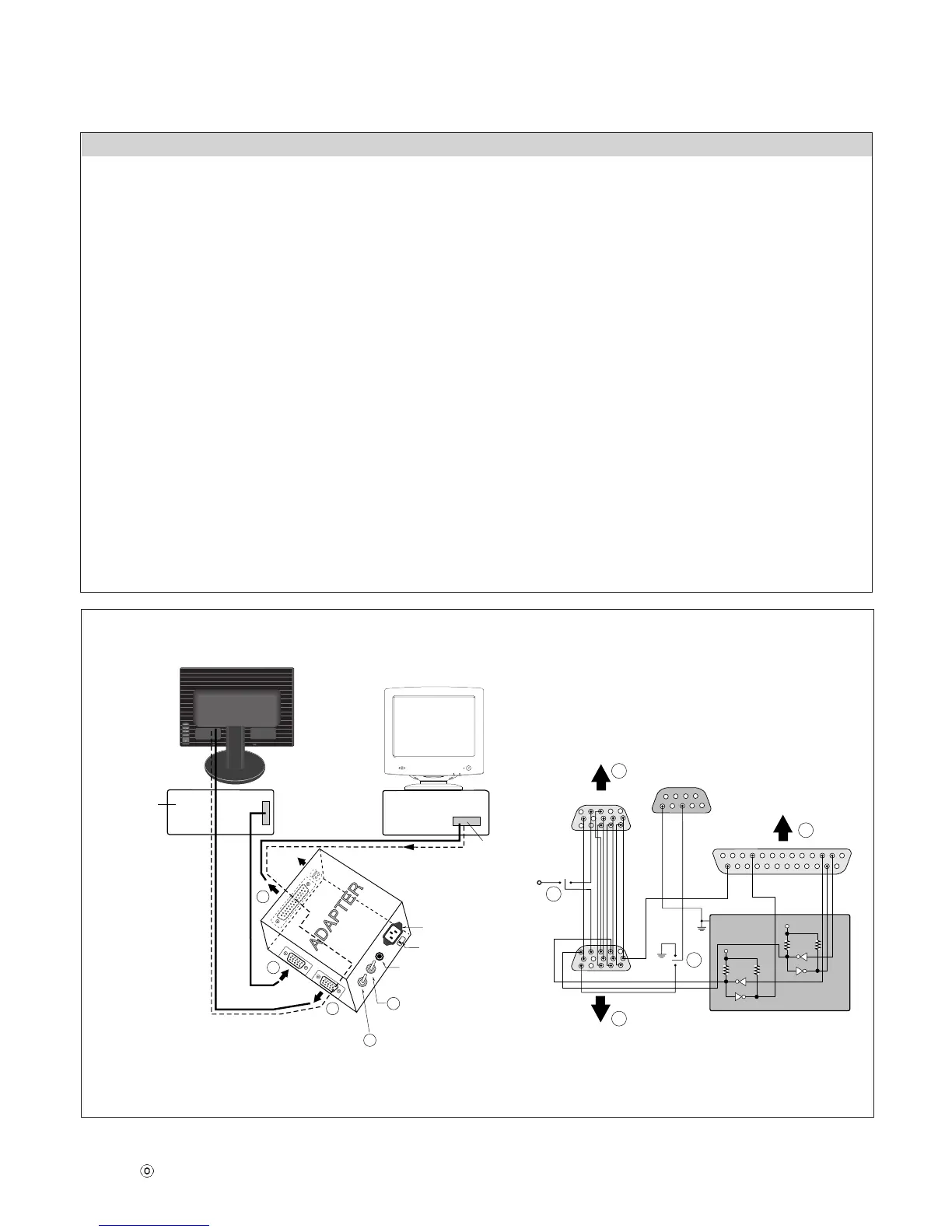

Figure 1. Cable Connection
SERVICE OSD
1) Turn off the power switch at the right side of the display.
2) Wait for about 5 seconds and press MENU, POWER switch for 1 second interval.
3) The SVC OSD menu contains additional menus that the User OSD menu as described below.
a) CLEAR ETI : To initialize using time.
c) Auto Color : W/B balance and Automatically sets the gain and offset value.
(press key for over 3 sec)
d) AGING : Select Aging mode(on/off).
b) Module : To select applied module.
d) NVRAM INIT : EEPROM initialize.(24C16, press key for over 3 sec)
e) R/G/B-9300K : Allows you to set the R/G/B-9300K value manually.
f) R/G/B-6500K : Allows you to set the R/G/B-6500K value manually.
g) R/G/B-Offset : Allows you to set the R/G/B-Offset value manually.(Analog Only)
h) R/G/B-Gain : Allows you to set the R/G/B-Gain value manually.(Analog Only)
