INSTALLATION
ENGLISH
Nut Releasing
Nut Tightening
When the Freezer Door is Lower
Method 1 is recommended.
y
Use spa
y
nner
2
for freezer door
adjustment.
1
(Method 1 recommended.)

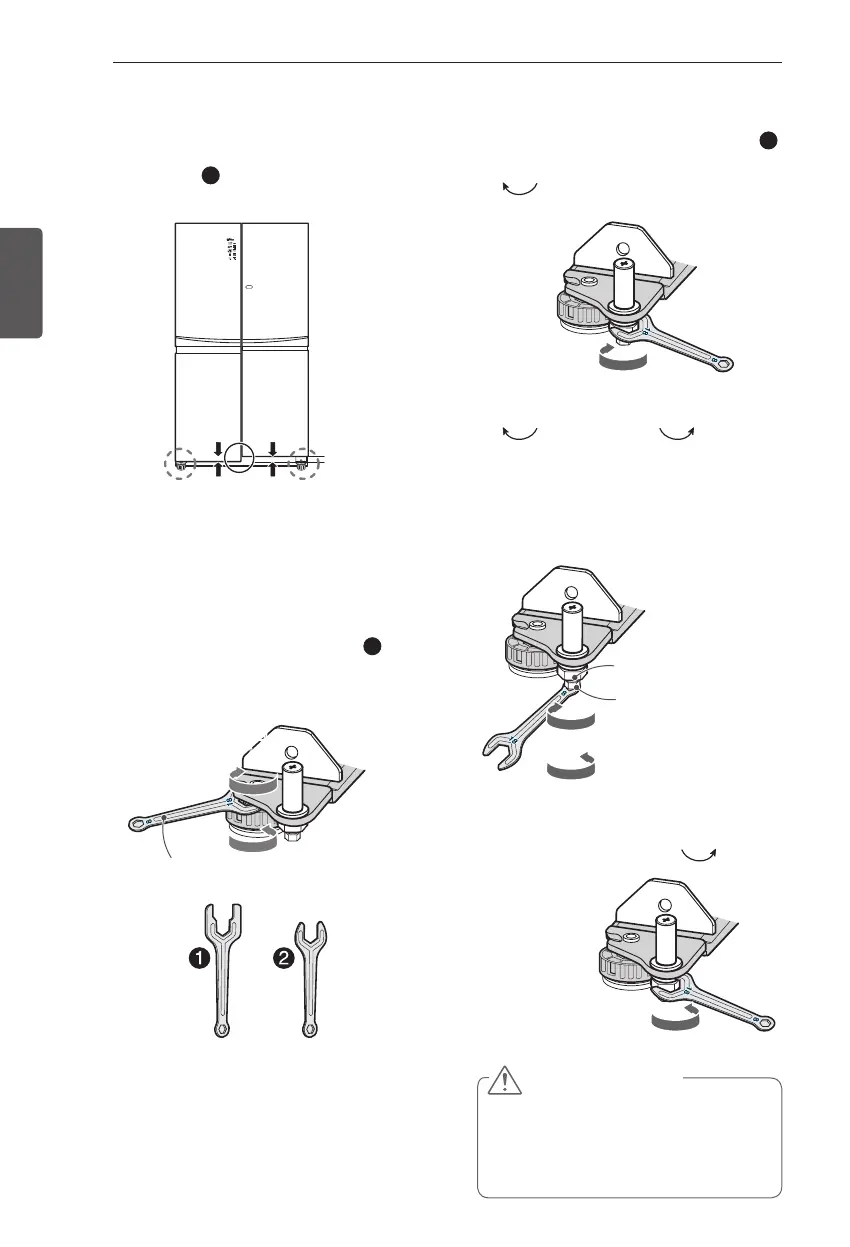

Open the door and adjust the level
by using the nut on the adjustable
round foot of the lower side first
by using the supplied number
2
spanner as per the below diagram.
2
(Method 2)
(1) Using the large side of the number
2
spanner, rotate the locking nut
( ) clockwise to unlock it before
adjusting the Adjust-Hinge pin.
(2) Rotate the Adjust-hinge pin either
(
) clockwise or ( ) counter-
clockwise using the narrow side of the
spanner spanner to adjust the level
difference between the refrigerator
door and freezer door (this method
provides limited adjustment).
(3) After adjusting door height, firmly
tighten the Locking nut (
)
counter-clockwise
until secured.
Height difference
Release Locking Nut
Adjust Hinge Pin
Lower Door Down
Raising Door Up
Spanner
Lower Door
Down
Raising
Door Up
CAUTION
Do not adjust the hinge pin height
level too much. The hinge pin
can fall out. (Range of height
adjustment : Max. 3mm)
