MAKING CONNECTIONS
MAKING CONNECTIONS
You can connect various external devices to the TV. Supported external devices are: HD receivers, DVD
players, VCRs, audio systems, USB storage devices, PC, gaming devices, and other external devices.
For more information on external device’s connection, refer to the manual provided with each device.
• If you record a TV program on a DVD recorder or VCR, make sure to connect the TV signal input
cable to the TV through a DVD recorder or VCR. For more information about recording, refer to the
manual provided with the connected device.
• The external device connections shown may differ slightly from illustrations in this manual.
• Connect external devices to the TV regardless about the order of the TV port.
• If you connect a gaming device to the TV, use the cable supplied with the gaming device.
• Refer to the external equipment’s manual for operating instructions.
NOTE

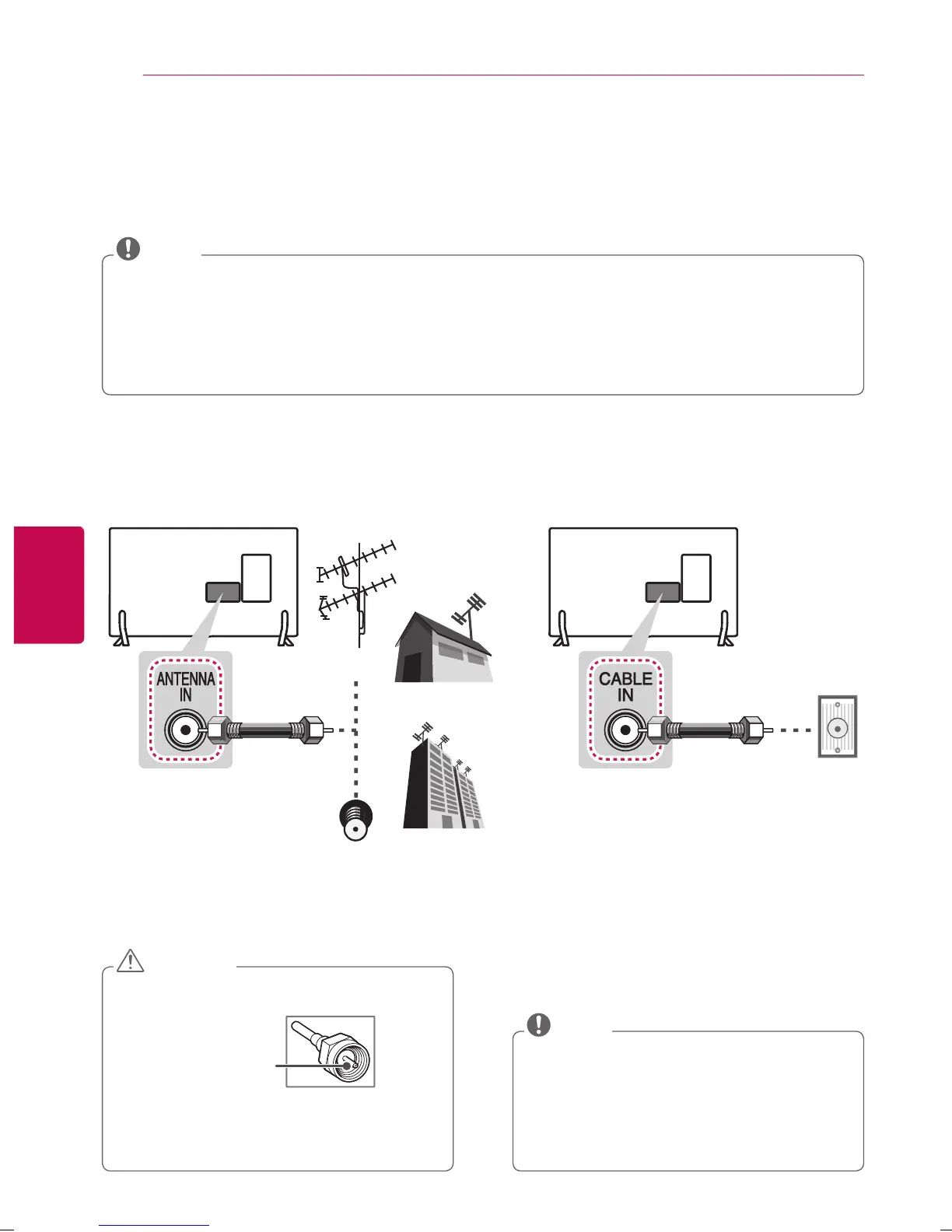

Connecting to an antenna or cable
Connect an antenna, cable, or cable box to watch TV. The illustrations may differ from the actual items
and an RF cable is optional.
VHF Antenna
UHF Antenna
or
Coaxial (75Ω)Coaxial (75Ω)
(*Not provided)(*Not provided)
Antenna
Wall Jack
Terminal
• To improve the picture quality in a poor
signal area, purchase a signal amplifier.
• Use a signal splitter to use 2 TVs or more.
• If the antenna is not installed properly,
contact your dealer for assistance.
• DTV Audio Supported Codec: MPEG, AAC,
HE-AAC
NOTE
• Make sure not to bend the copper wire of
the RF cable.
Copper wire
• Complete all connections between devices,
and then connect the power cord to the
power outlet to prevent damage to your TV.
CAUTION
