LG LCRT2010ST Service Manual

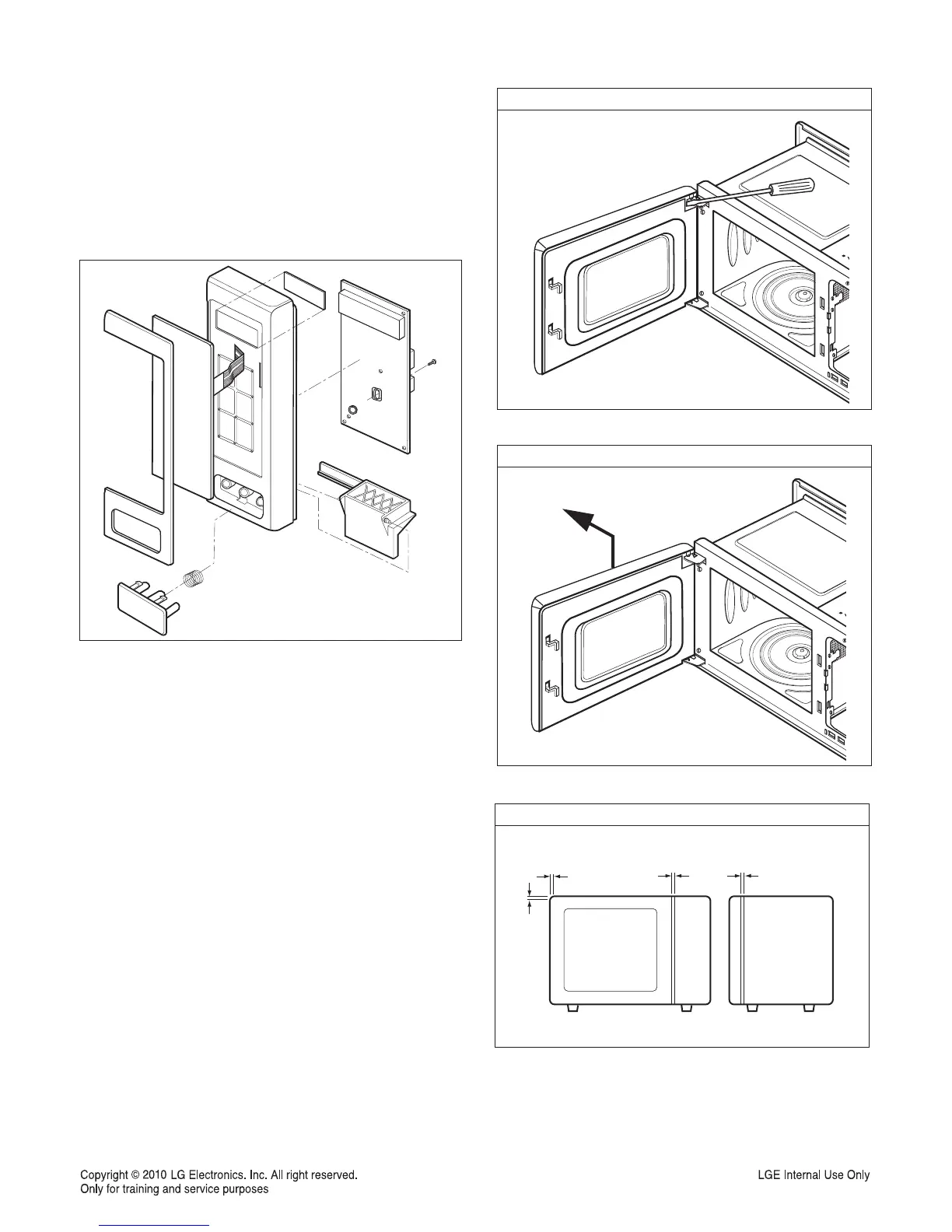

D. PCB ASSEMBLY REMOVAL
1) Remove the control panel assembly from the
cavity. (Refer to control panel assembly removal
on previous page.)
2) Remove screws which hold the PCB SUB ASS’Y to
the control panel.
3) Disconnect the flat cable from the PCB SUB
ASS’Y and take off the PCB SUB ASS’Y
E. DOOR MAIN ASSEMBLY / REMOVAL
1) Open the door.
2) Remove the choke cover very carefully with a flat-blade
screwdriver.
CAUTION: Be careful not to damage door seal plate
by screwdriver.
3) Lift up and push the door.
NOTE:
1. After replacing the door, be sure to check that the
primary switch, monitor switch, and secondary switch
operate normally.
2. After replacing the door, check for microwave energy
leakage with a survey meter. Microwave energy must
be below the limit of 4 mW/cm
2
. (with a 275 ml water
load)
3. When mounting the door assembly to the oven
assembly, be sure to adjust the door assembly parallel
to the chassis. Also adjust so the door has no play
between the inner door surface and oven frame
assembly. If the door assembly is not mounted
properly, microwaves may leak from the clearance
between the door and the oven.
5-4
Remove choke cover
Remove door Assembly
Spacer

LG LCRT2010ST Specifications

General

Style	countertop
Color	stainless steel
Total Capacity	2 cubic feet
Sensor Cooking	yes
Child Lock	yes
Timer	yes
Microwave Power	1200 watts

Weight and Dimensions

Depth	19.81 inches
Height	13.56 inches
Width	23.87 inches
Net Weight	39.7 pounds
