LG LF-U850D User Manual

3-3 3-4

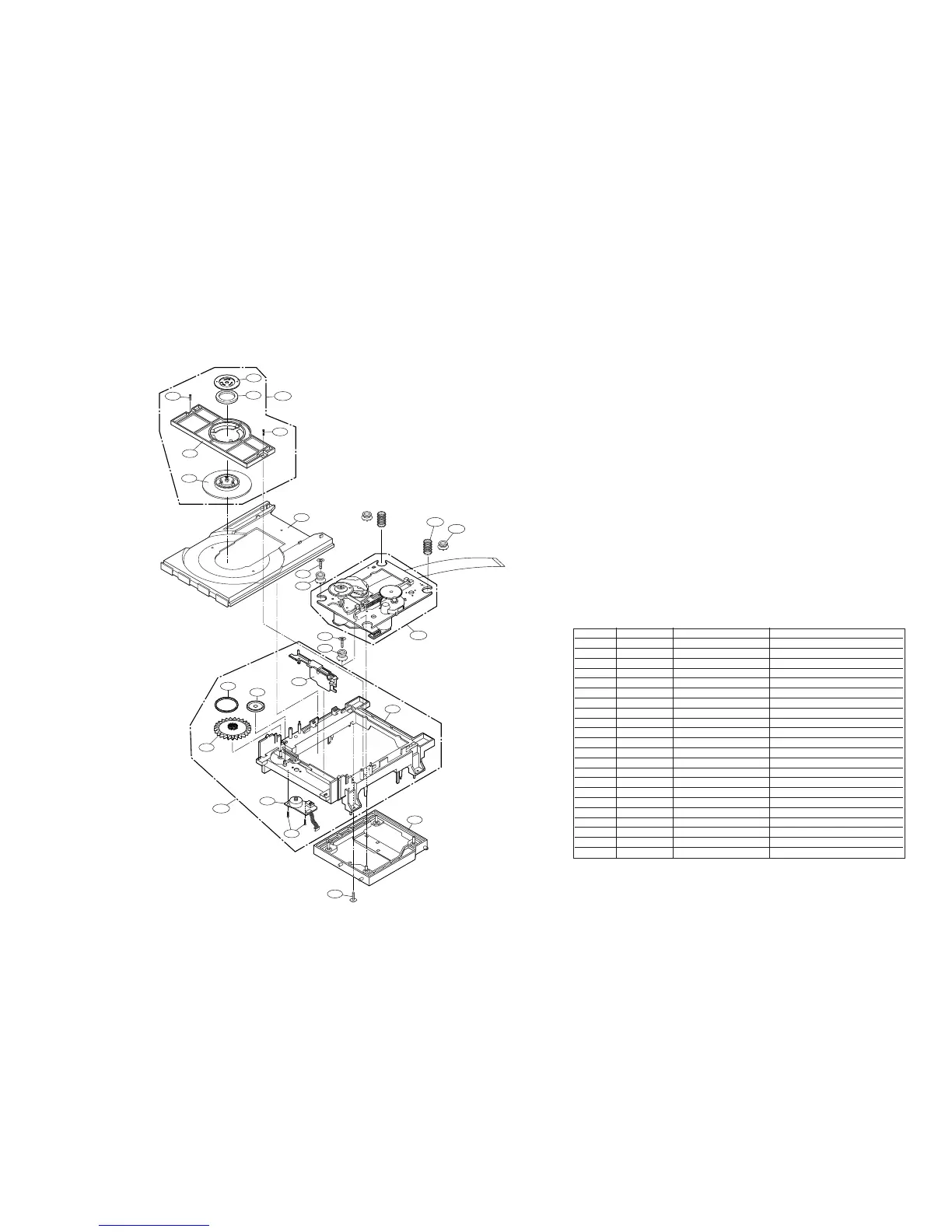

• DECK MECHANISM EXPLODED VIEW
430
430
018
014
013
017
020
011
015
431
012
430
012
026
A03
A02
001
429
429
004
002
003
A01
022
023
LOCA. NO. LG PART NO. DESCRIPTION SPECIFICATION
A26 6721RJ0572A DECK ASSEMBLY,AUDIO HOME LF-U850-HZ-(74.8MM) - SPR
A01 4860RB0003A CLAMP HOME CDM-320 MOLD CLAMP ASSY
A02 4405RCD002A MECHANISM ASSEMBLY MAIN LOADING CDM-310 CDP
A03 6717R-A002A PICK UP ASSEMBLY CMS-D77SG6 SAMSUNG FRONT LOADI
001 3550SB0001A COVER HOME PLATE PRESS (CDM-H1303)
002 524-012AAAA COVER HOME CLAMP MAGNET OTHER (030X
003 4860RB0002A CLAMP HOME CDM-H1503 MOLD DISC
004 4930R-0526A HOLDER HOME CDM-310 MOLD CLAMP
011 3040R-0073A BASE P/U (CDM-300)
012 5040R-0131A RUBBER HOME CDM-310 OTHER DAMPER
013 4400R-0006B BELT DECK/MECHA DP2-5, DP7C,DP7A OT
014 4470R-0055A GEAR PULLEY
015 6871RC2016A PWB(PCB) ASSEMBLY,CD LOADING (CDM-300)
017 4470R-0056A GEAR LOADING
018 4974R-0023A GUIDE UP/DOWN
020 3040R-M059A BASE MAIN CDM-310 MOLD
022 4970RB0001C SPRING COIL REAR-25GRAM- 1 CD-(LF-U85
023 4900RB0002A DAMPER HOME 3CD CHANGER MOLD RUBBER
026 3390R-0028A TRAY HOME CDM-310 MOLD DISC
429 1SZZR-0012A SCREW,DRAWING B-TITE
430 6756SBX001A CD MECHANISM PARTS SCREW 2.6X10X10XFZMY CDM-H813
431 1SZZH-1007B SCREW,DRAWING + D2.0 6MM SWRCH16A/ZNBK 4MM 1
