CASE P
ARTS
CAUTION: Use the part number to order part, not the position number
.
- 37
-

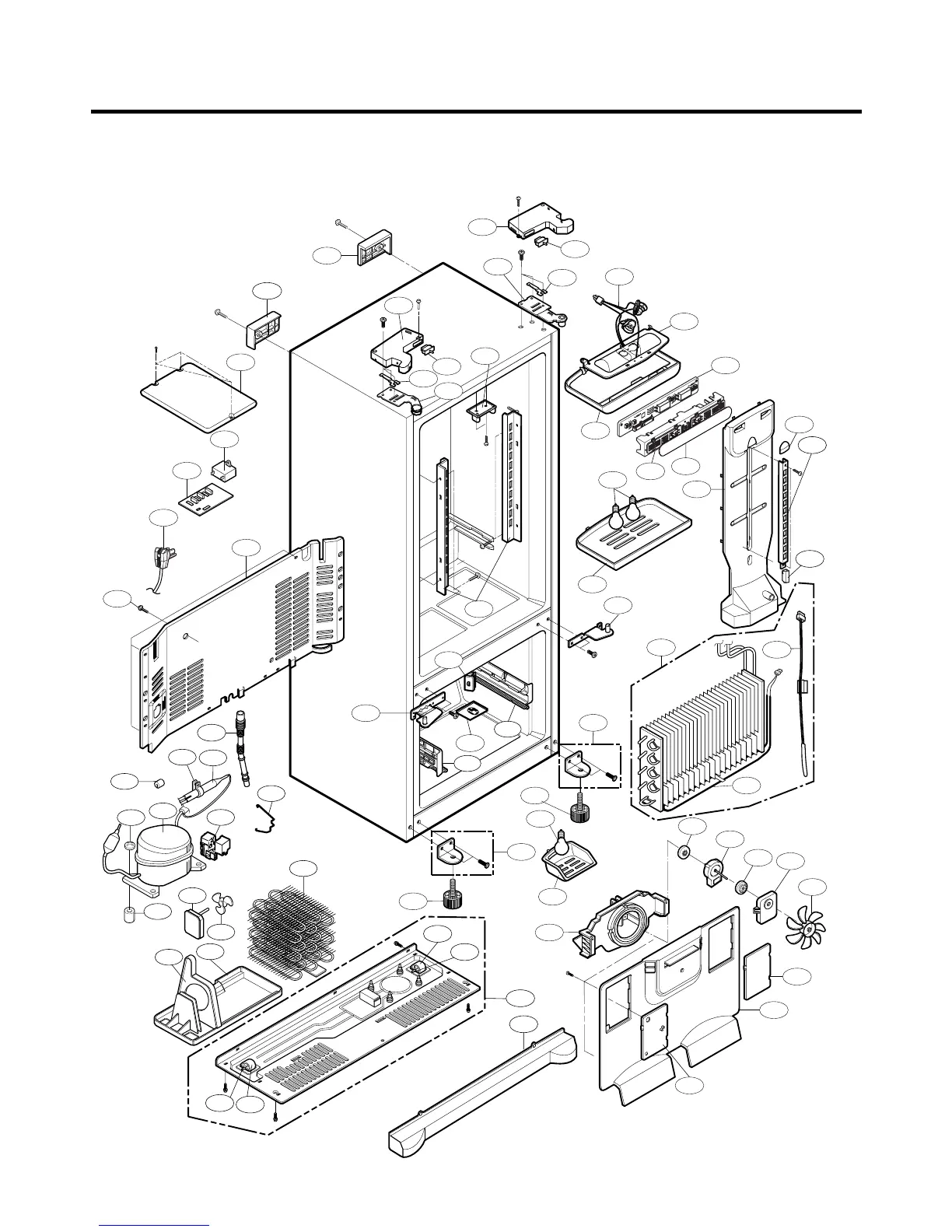

9. EXPLODED VIEW & REPLACEMENT P
ARTS LIST
S18
106A
315A
501A
411A
501F
318A
314A
300A
312A
317A
103A
105A
283B
283B
328A
103B
315B
315B
315C
315C
323B
329C
420A
319A
319C
503D
262B
410A
409D
503C
409B
158A
405F
404A
405C
332A
135D
405A
158B
503E
503G
145B
409B
106A
120B
145A
406D
249D
282G
282F
405B
329A
262H
103C
135C
410G
304A
207B
207A
271C
271B
271A
271B
402A
402A
400A
301A
408A
406B
152B
249C
313A
303B
36
38
Table of Contents
Safety Precautions
2
Table of Contents
2
Specifications
3
Parts Identification
4
Disassembly
5
Door
5
Door Alignment
6
How to Remove and Reinstall the Pullout Drawer
7
Adjustment
10
Compressor
10
Ptc-Starter
10
Olp (Overload Protector)
11
To Remove the Cover Ptc
11
Adjustment
11
Circuit Diagram
12
Troubleshooting
13
Compressor and Electric Components
13
Ptc and Olp
14
Other Electrical Components
15
Service Diagnosis Chart
16
Refrigeration Cycle
17
Troubleshooting
17
Operation Principle and Repair Method of Icemaker
19
Description of Function and Circuit of Micom
23
Exploded View and Replacement Parts List
37
