Assembling and Connecting to the Speakers (Front Speaker)
The front speakers are detached from the speaker stands. Connect the speaker cables and assemble the front
speakers from speaker stands as illustrated.
To attach the speaker to the stand

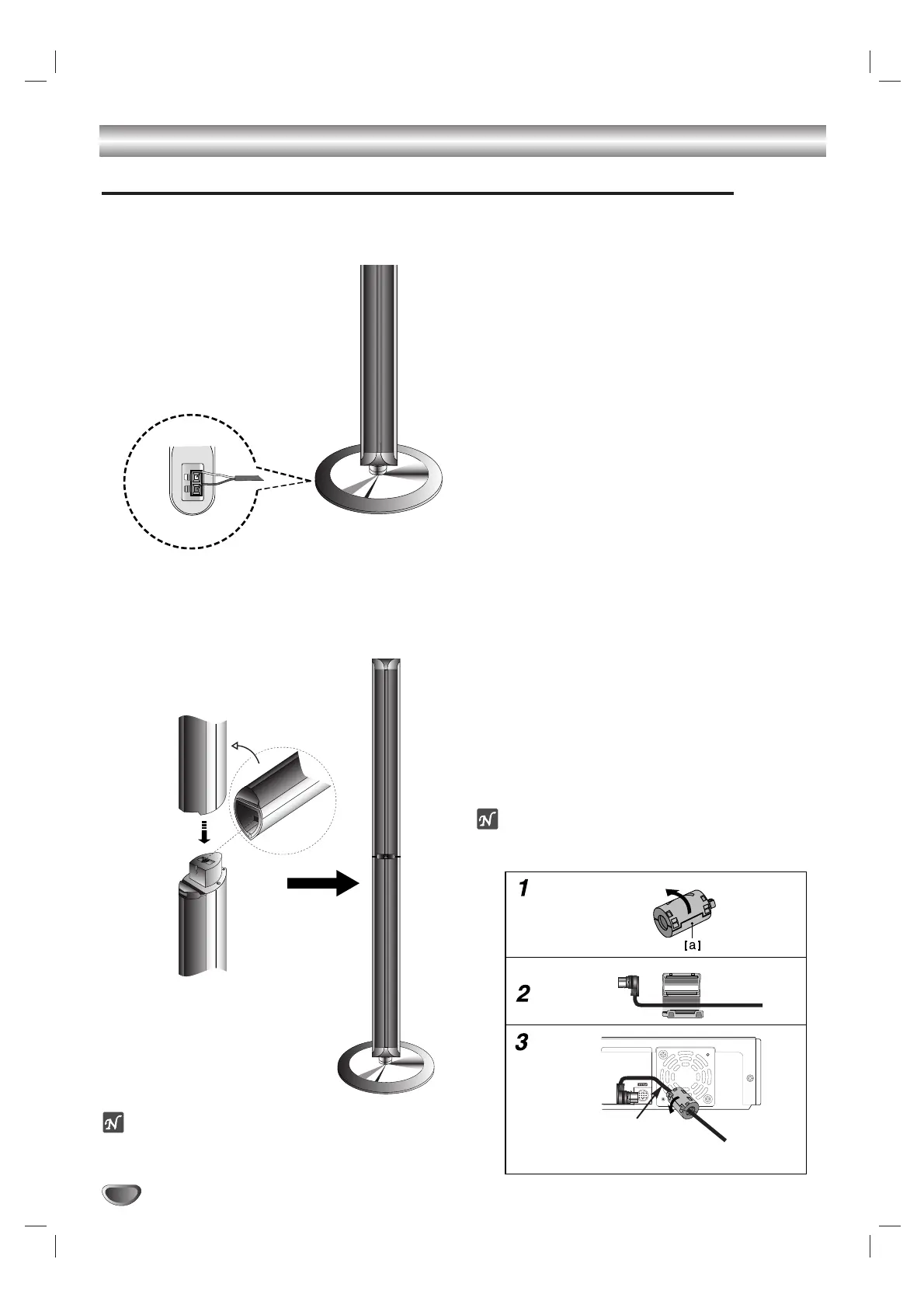

How to connect the Speakers
Connect the speaker cables to the appropriate termi-
nals on the bottom of each front speaker.
After connecting the speaker cabless to the appropriate
terminals on the bottom of each front speaker and
attach the front speakers to the speaker stands.
ote
You cannot detach the speaker from the stand after assem-
bling the front and rear speakers.
About Ferrite Core
Be sure to attach the ferrite core to the System cable
(for connecting to this unit).
This ferrite core can reduce noises.
How to attach the ferrite core
1 Press the stopper [a] of the ferrite core to open.
2 Insert the ferrite core on the System cable.
3 Close the ferrite core unit it clicks.
ote
Attach the ferrite core near the unit (Refer to the fig.3 and
comment.).
The length here is
short as much as
possible.
