Disassembly
Disassembly

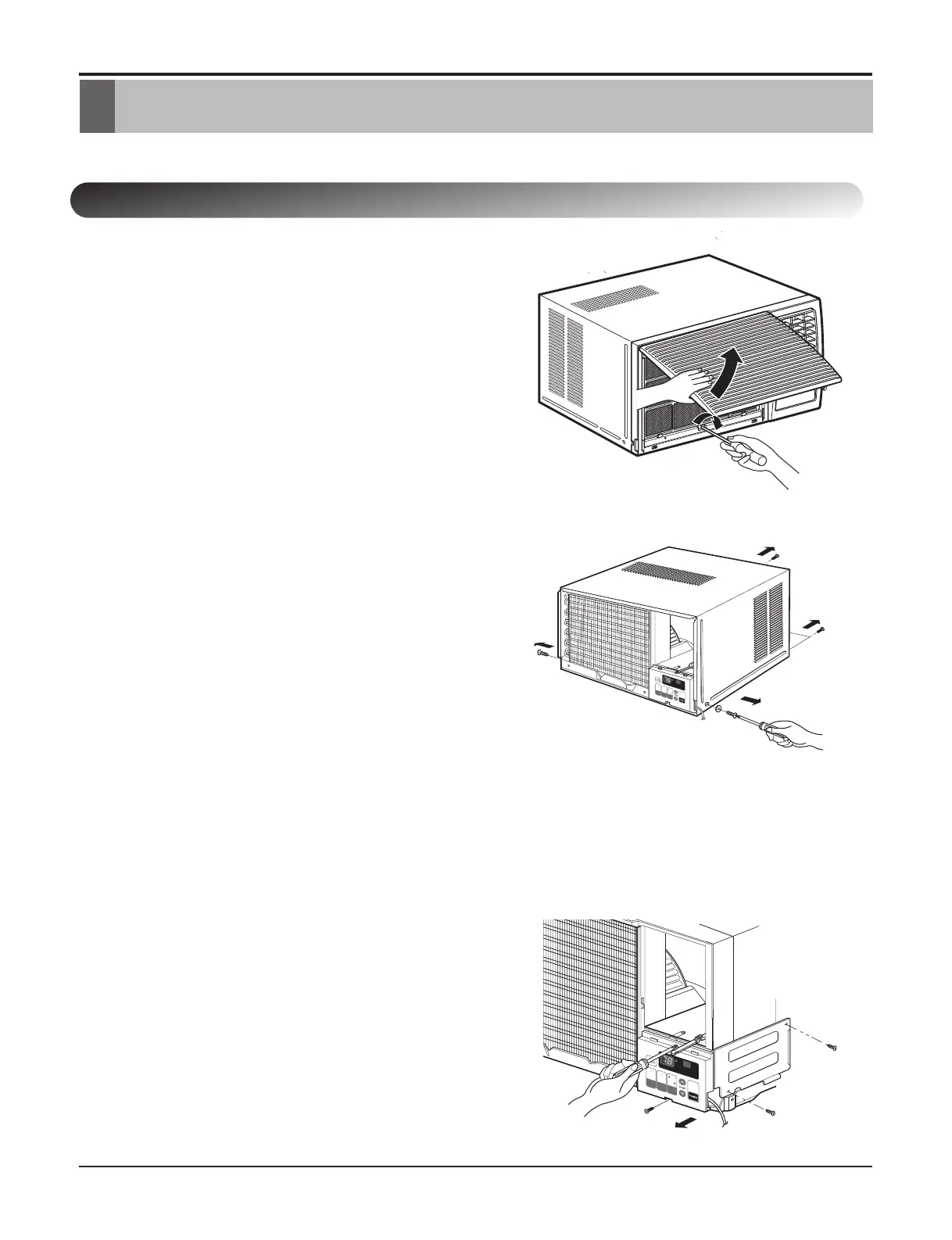

1. Front Grille
1. Open the lnlet grille upward .
2. Remove the 1 screw that fastens the front grille.
3. Pull the front grille from the right side.
4. Remove the front grille.(See Figure 1)
5. Re-install the component by referring to the removal
procedure, above.
2
3
4
8
7
6
5
O
M
e
d
Fa
n
H
ig
h
C
oo
l
TIM
ER
ENERGY
SAVER
M
ODE
On/O
On/O
Fan
Cool
H
eat
TIM
ER
ENERGY
SAVER
M
O
DE
On/O
On/O
Fan
Cool
Heat
Figure 1
Figure 3
Figure 2
Mechanical Parts
2. Cabinet
1. Remove the front grille. (Refer to section 1)
2. Remove the 2 screws that fasten the cabinet at both sides.
3. Remove the 2 screws that fasten the cabinet at back.
4. Pull the base pan forward. (See Figure 2)
5. Remove the cabinet.
6. Re-install the components by referring to the removal
procedure, above.
3. Control Box
1. Remove the front grille. (Refer to section 1)
2. Remove the cabinet. (Refer to section 2)
3. Remove the 2 screws that fasten the control box cover.
4. Remove two housings that connect compressor wire
and motor wire in the control box.
5. Discharge the capacitor by placing a 20,000 ohm
resistor across the capacitor terminals.
6. Remove the 2 screws that fasten the control box.
7. Pull the control box forward completely.(See Figure 3)
8. Re-install the components by referring to the removal
procedure, above.
(Refer to the circuit diagram found on page 16 in this
manual and on the control box.)
— Before the following disassembly, CONTROL BOX set to OFF and disconnect the power cord.
