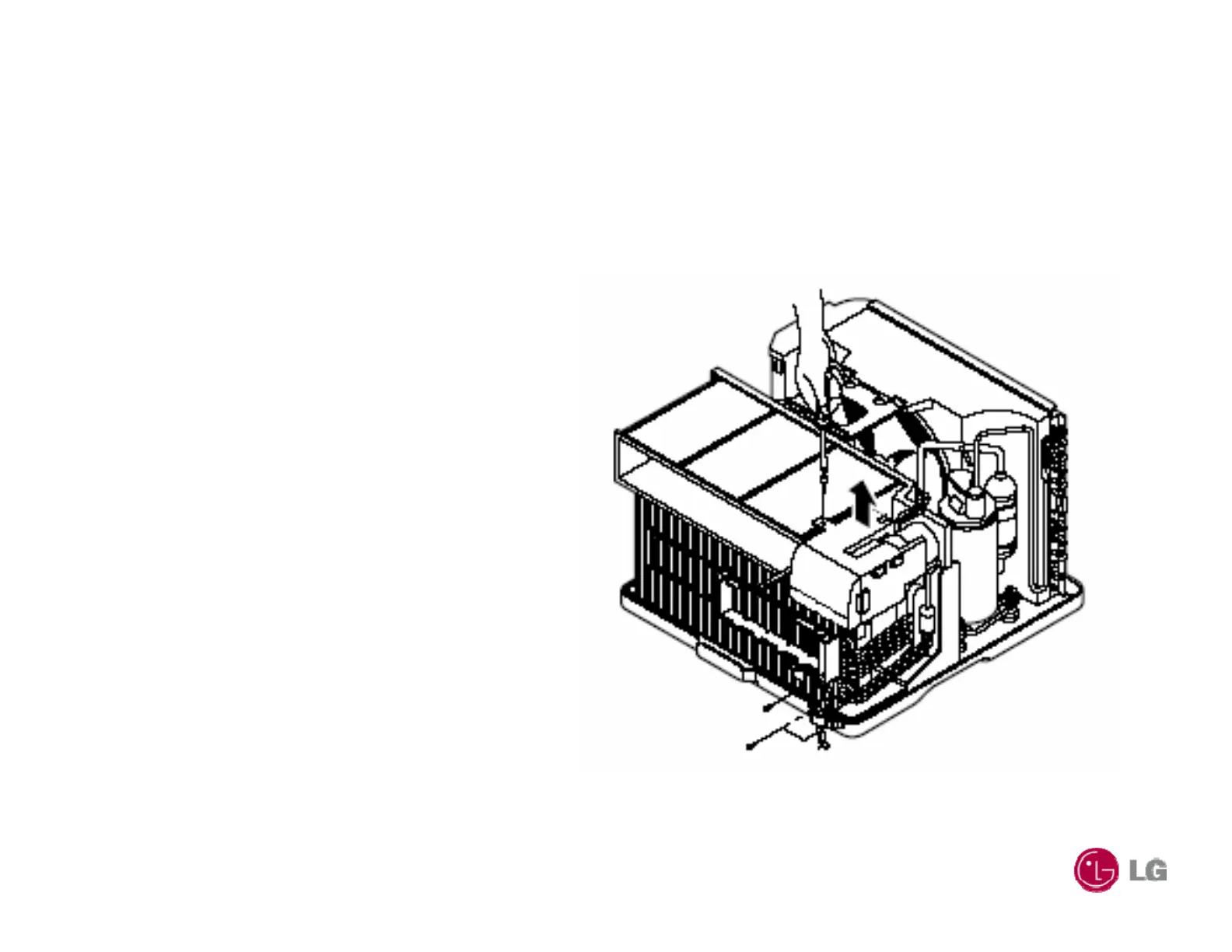

CONTROL BOX
1.
Remove the front grille.
2.
Remove the cabinet.
3.
Remove the 2 screws that
fasten the power cord.
4.
Disconnect the ground screw
from the base pan.
5.
Remove the screw that
secures the control box cover.
6.
Remove the connector
between the PCB and the
motor lead.
p17
LWHD1006R
Disassembly
49
51
