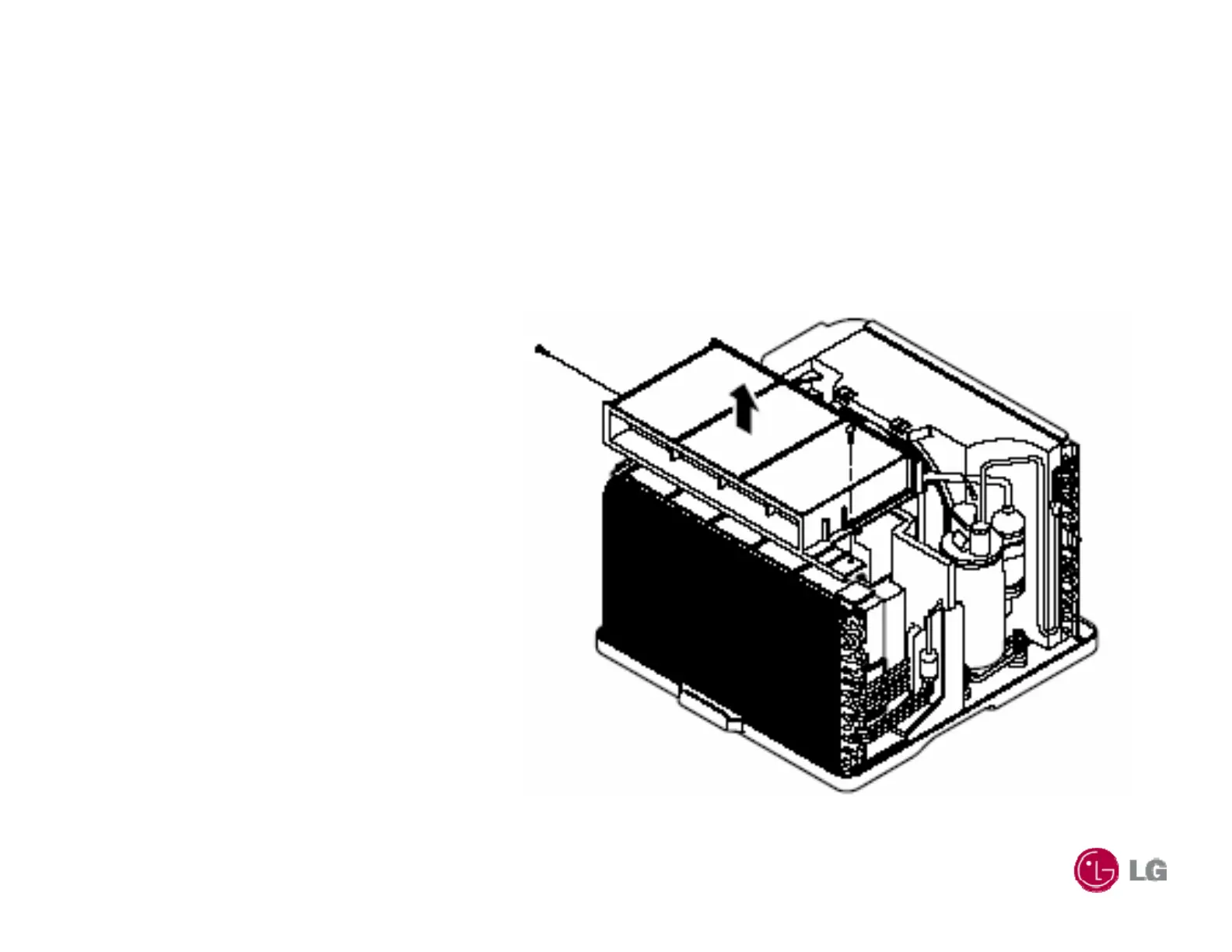

EVAPORATOR
1. Remove the upper air guide.
2. Remove 2 screws that secure
the evaporator.
3. Lift the evaporator slightly and
push it sideways.
4. Discharge and recover the
refrigerant.
5. Unbraze the evaporator at the
connecting points.
6. Replacement is the reverse of
these steps.
p23
LWHD1006R
Refrigeration Cycle
