Control Part Detailed Drawing
36 Ventilation System
Control Part Detailed Drawing
Models: LZ-H0106BA0 / LZ-H0156BA0 / LZ-H0256BA0
This product has different wiring method by system configuration. Perform the wiring work(electric working) on several
necessary parts(areas).

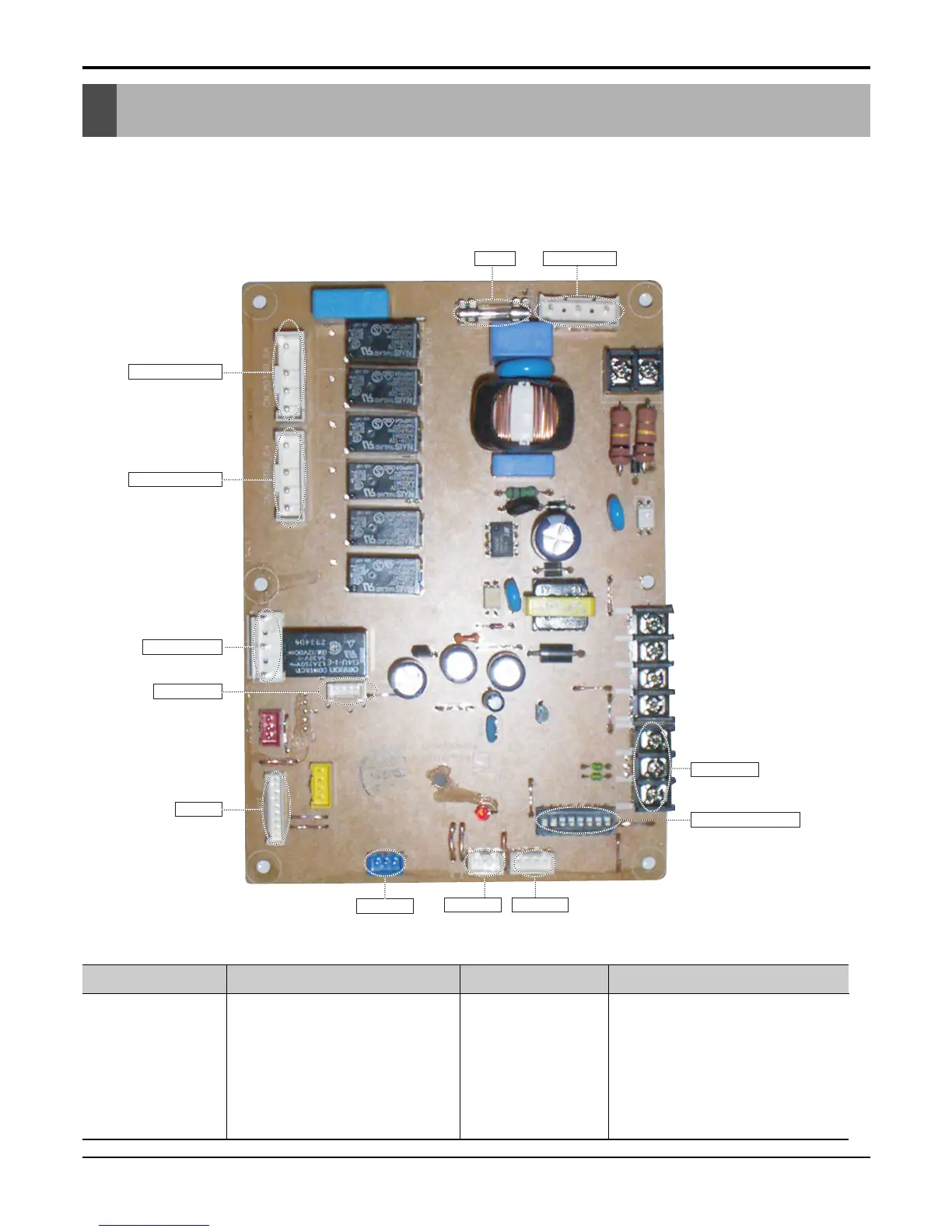

Identification of inside control box
CN-MOTOR-SA
CN-MOTOR-EA
CN-DAMPER
CN-CC
CN-SPARE
CN-IN
CN-OUT CN-CO2
OPTION SWITCH
CN-REMO
FUSE
CN-POWER
Descriptions of symbols(marking)
Marking Name
CN-POWER Power Code Connector
FUSE Fuse
CN-MOTOR-SA Fan motor connector(Supplying Air
CN-MOTOR-EA Fan motor connector(Exhausted air)
CN-DAMPER Synchronous Motor connector
CN-SPARE Heater connector
CN-CC Central controller connector
Marking Name
CN-IN Thermistor(indoor) connector
CN-OUT Thermistor(outdoor) connector
CN-CO2 CO2 Sensor connector
OPTION SWITCH Option Switch
CN-REMO Remote controller terminal block
To Next Page
