LG M227WD Service Manual

- 14 -
Copyright LG Electronics. Inc. All right reserved.
Only for training and service purposes
LGE Internal Use Only

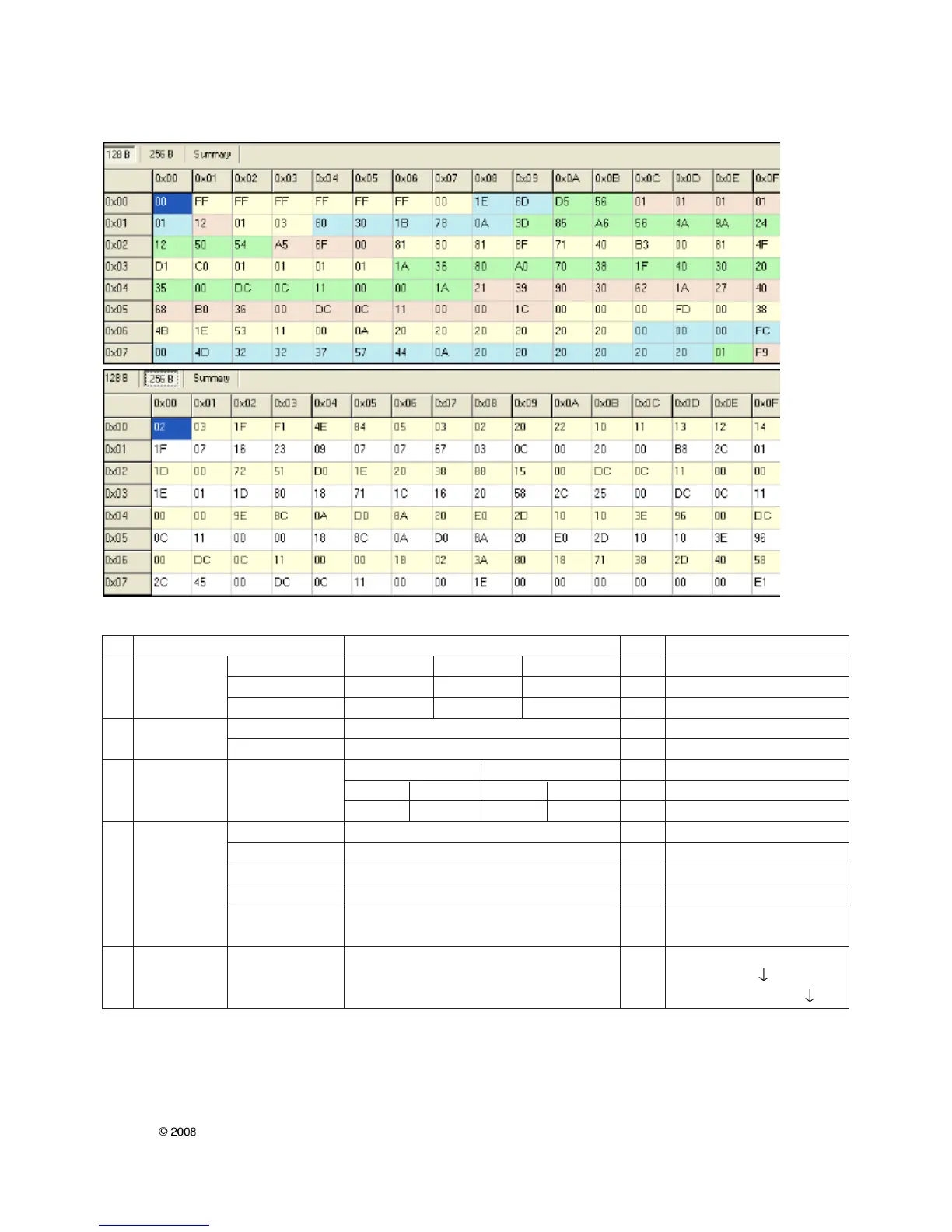

14.2 M197WD-PZJ (HDMI 2)
15. Mechanical specification
15.1 M227WD-PZJ
No. Item Content Unit Remark
1. Product Width(W) Length(D) Height(H) mm
Dimension Before Packing 519.8 193.2 400.5 mm
After Packing 592 446 135 mm
2. Product Only SET 4.7 Kg
Weight With BOX 6.3 Kg
3. Container Individual or 20ft 40ft
Loading Palletizing Indi. Wooden Indi. Wooden
Quantity 816 600 1700 1380
4. Stand
Type Detachable ( Base detachable)
Assy
Size(W x D x H) 271.2x 193.2x 108.4
Tilt Degree -5~15 degree
Tilt force 0.8~3.5kgf
Swivel Degree
none
Swivel Force
5. Appearance General Refer to Standard of LG(55)G1-1020
*Appearance Gap spec
Front: 0.5 mm
Back & Bottom : 1.0 m

LG M227WD Specifications

General

Pixel pitch	0.24825 x 0.24825 mm
Aspect ratio	16:9
Display diagonal	21.5 \
Supported video modes	1080i, 1080p, 480i, 480p, 576i
Viewing angle, vertical	160 °
Contrast ratio (typical)	8000:1
Viewing angle, horizontal	170 °
Digital vertical frequency	56 - 75 Hz
Digital horizontal frequency	30 - 83 kHz
Display brightness (typical)	300 cd/m²
Special features	Picture Mode: Vivid, Standard, Cinema, Sport, Game ARC-PC: 16:9, 4:3 ARC-Video: DTV/ATV/AV1/AV2 - 16:9, Original, 4:3, 14:9, Zoom1, Zoom2 COMPONENT/HDMI - 16:9, Just Scan(720P higher), 4:3, 14:9, Zoom1, Zoom2 Sound: SRS, AVL, Equalizer, Dolby Surround Auto/Manual Clock, On/Off Time, Sleep Timer, Auto Off/Auto Sleep
Security features	Key lock
Power requirements	AC 100-240V
TV tuner integrated	Yes
Component video (YPbPr/YCbCr) in	3
RMS rated power	6 W
Certification	TUV-GS, EPA, FCC-B, CE
Product color	Black
Market positioning	-
Power consumption (typical)	55 W
Power consumption (PowerSave)	1 W
Tilt angle range	-5 - 15 °
Panel mounting interface	100 x 100 mm

Weight and Dimensions

Depth (with stand)	193.2 mm
Width (with stand)	519.8 mm
Height (with stand)	400.5 mm
Weight (with stand)	4660 g
Depth (without stand)	75.3 mm
Height (without stand)	349.5 mm
Weight (without stand)	4500 g
