LG MULTI F LAN090HSV4 User Manual

14
Multi F Art Cool™ Mirror Wall-Mounted Indoor Unit
Due to our policy of continuous product innovation, some specifications may change without notification.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
MA
X
MUL
TI
F
MUL
TI
F
GENERAL DATA
Gas pipe connection port
(flare connection)
Liquid pipe connection port
(flare connection)
Cooling
Heating
Thermistor for
Evaporator Inlet Temperature
Thermistor for
Indoor Air Temperature
Thermistor for Evaporator
Outlet Temperature
Heat Exchanger
Cross Flow Fan
M
Model No. Vapor (inch) Liquid (inch)
LAN090HSV4
Ø3/8 Ø1/4
LAN120HSV4
LAN180HSV4 Ø5/8 Ø3/8
Table 5: Multi F Multi Zone Art Cool Mirror Wall-Mounted Indoor Unit Refrigerant Pipe Connection Port Diameters

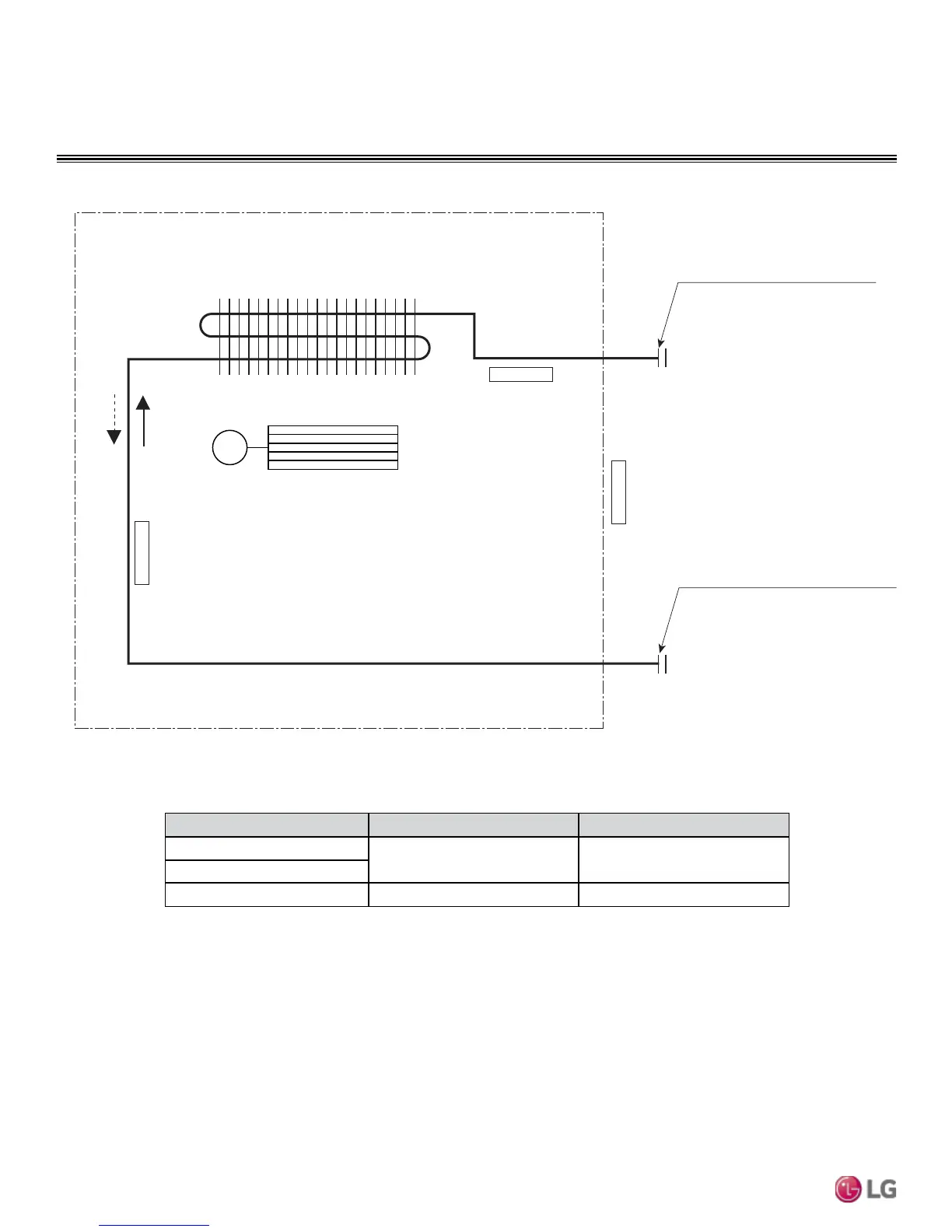

Figure 2: LAN090-120-180HSV4 Refrigerant Piping Diagram

LG MULTI F LAN090HSV4 Specifications

General

Brand	LG
Model	MULTI F LAN090HSV4
Category	Air Conditioner
Language	English
