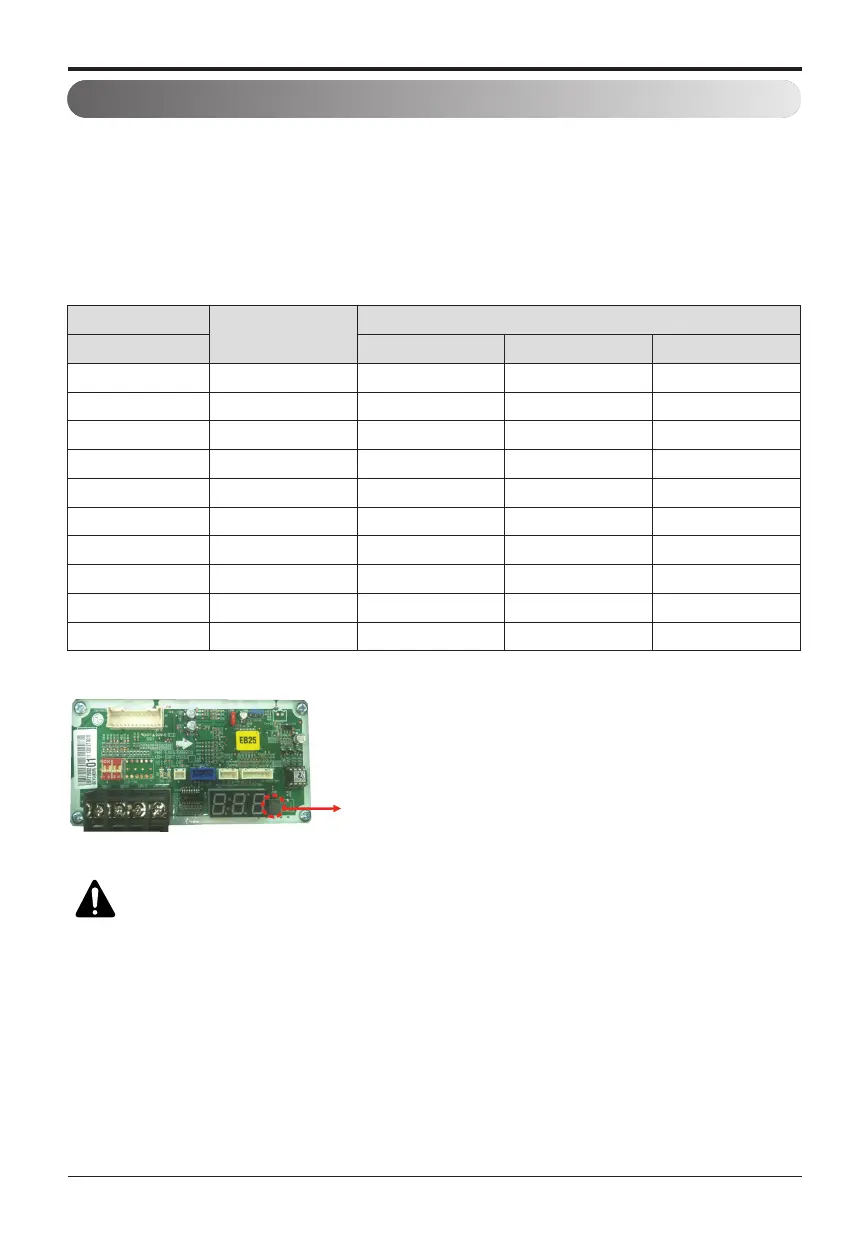

52 Multi Air Conditioner
Function
It is useful to check the cycle data without LGMV.
Operating Method
Whenever you push the Tact Switch, the cycle information will be shown as below.
h After 1page is displayed, subsequently 2page is displayed.
Tact S/W
Item
Display
18/24k Example 1page 2page
1 time Low Pressure 890kpa ʻLPʼ ʼ 89ʼ
2 time Hi Pressure 2900kpa ʻHPʼ ʻ290ʼ
3 time Discharge Temp. 85°C ʻDSʼ ʼ 85ʼ
4 time Cond Out Temp. -10°C ʻCSʼ ʻ-10ʼ
5 time Suction Temp. -10°C ʻSSʼ ʻ-10ʼ
6 time ODU Air Temp. -10°C ʻASʼ ʻ-10ʼ
7 time Current 15A ʻAʼ ʻ 15ʼ
8 time Voltage 230V ʻVʼ ʻ230ʼ
9 time Comp Hz 100Hz ʻFʼ ʻ100ʼ
10 time DC Link Voltage 230V ʻdcʼ ʻ230ʼ
PCB Display(18/24k Model Only)
WARNING : When you push the Tact Switch, use the material non-conduct-
ing electricity.
To Next Page
