20 Outdoor Unit
Installation
Installation

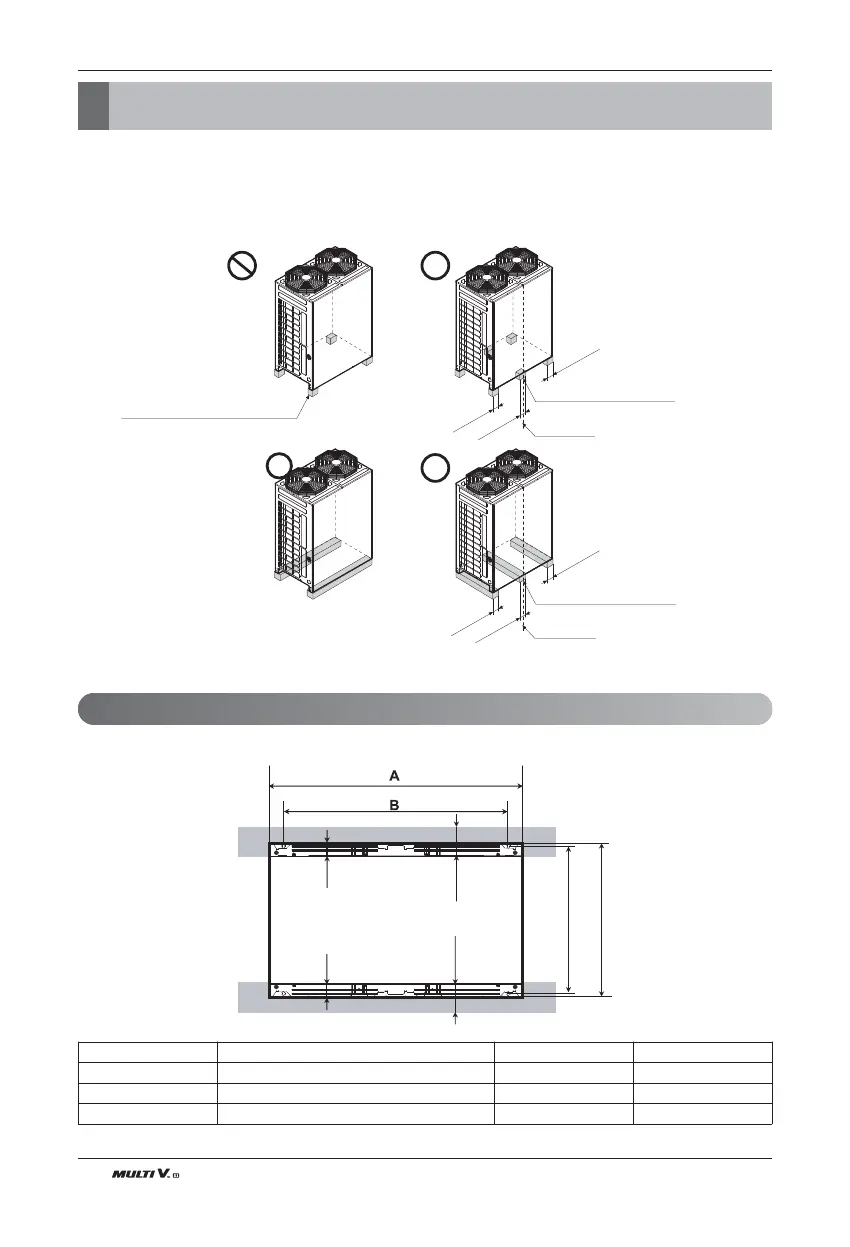

The location of the Anchor bolts
• Install at places where it can endure the weight and vibration/noise of the outdoor unit.
• The outdoor unit supports at the bottom should have width of at least 100mm under the unitʼs legs before being fixed.
• The outdoor unit supports should have minimum height of 200mm.
• Anchor bolts must be inserted at least 75mm.
At least 100mm
At least 100mm
At least 100mm
At least 100mm
At least 100mm
At least 100mm
Needed for outdoor units of 23kW or above
Center of the Unit
The outdoor unit should
not be supported only by
the corner supports.
Needed for outdoor units of 23kW or above
Center of the Unit
730
760
6565
Unit : mm
At least 65At least 65
Chassis Capacity (HP) A(mm) B(mm)
UX2 8 ~ 12 920 792
UX3 (460V) 14 ~ 20 1240 1102
UX3 (220V) 14 ~ 18 1240 1102
