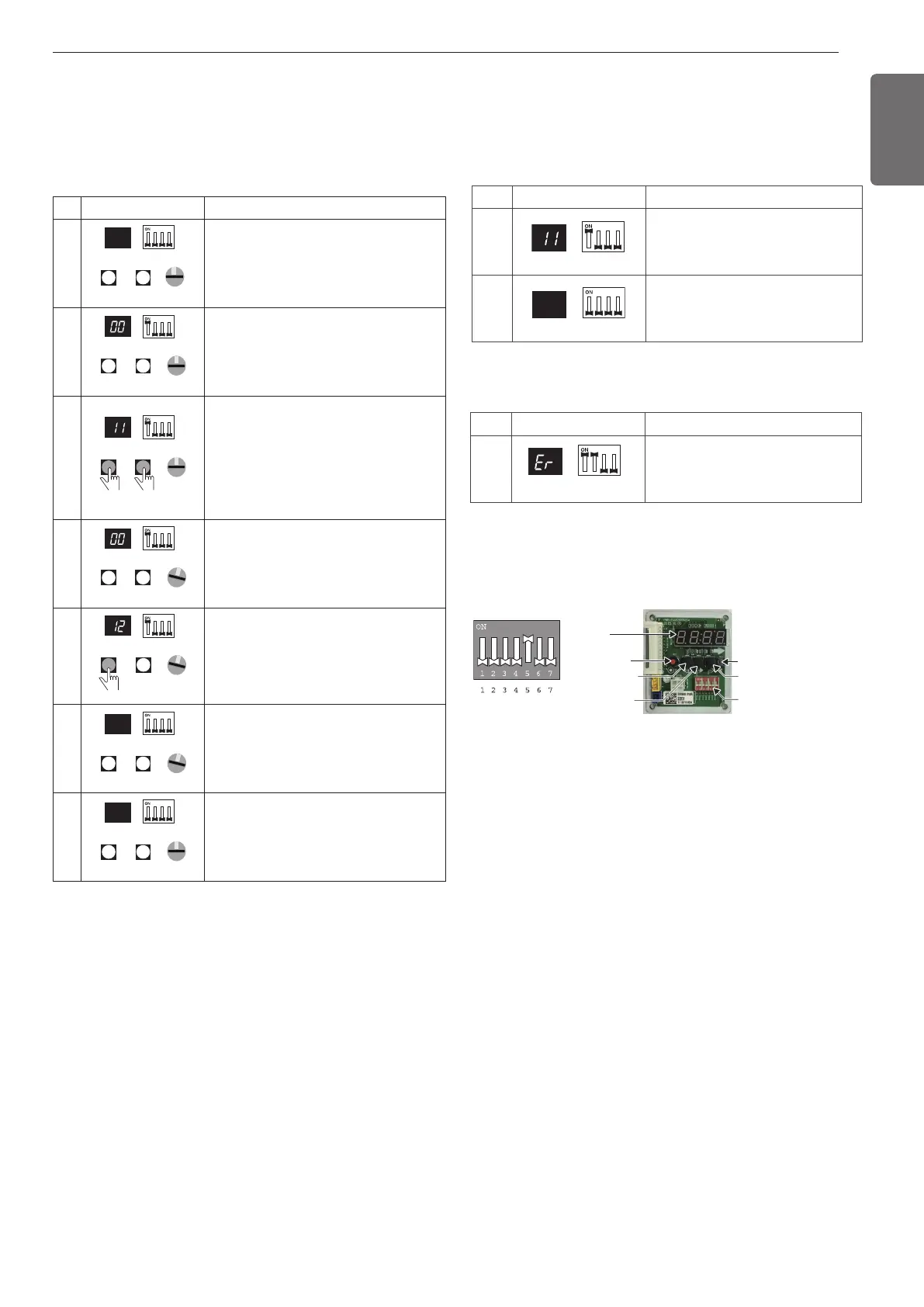

Identification of Manual Valve ID (Address)
No. Display and setup Setup and Contents
1
7-SEG SW01E
- Operation: more than 2 dip switches
turned on.
- Display: "Er" is displayed in 7-SEG
7) The rotary switch set value of above number of indoor units which is
connected with FF and prevents a malfunction.
(Example: The case where 3 indoor units is connected in piping 1,
sets from rotary switch 0,1,2 and 3,4,5,6,7 with FF set)
- Prerequisite for manual valve addressing: central control address of
each indoor unit must be preset differently at its wired remote con-
trol.
- Above setup must be done for all HR unit valves.
- The valve that is not connected with any indoor unit should be ad-
dressed with any other number than used address numbers of the
valves connected with indoor units.(The valves does not work if the
address numbers are same.)
No.Display and setup Setup and Contents
1
7-SEG SW01E
SW02B SW01B
0
SW01C
- Operation: None
- Display: None
2
7-SEG SW01E
SW02B SW01B
SW01C
0
- Operation : Turn dip S/W No.1 on to ad-
dress valve #1
- Display : Existing value saved in EEP-
ROM is displayed in 7-SEG.
3
7-SEG SW01E
SW02B SW01B
SW01C
0
- Operation : Set the digit of 10(1) to the
number in Group High data of the wired
remote control connected to the corre-
sponding indoor unit to the valve #1 by
pressing left tack S/W.
- Display : Digit increasing with the times
of pressing tack S/W is displayed in left
7-SEG.
4
1
7-SEG SW01E
SW02B SW01B
SW01C
- Operation : SW01C : 1
- Display : Display former value.
5
7-SEG SW01E
SW02B SW01B
SW01C
1
- Operation : Setting No. using SW02B
and SW01B, SW01C : 1
- Display : Display setting value.
6
7-SEG SW01E
SW02B SW01B
SW01C
1
- Operation : Turn dip S/W No.1 off to save
the address of valve #1
- Display : "11" displayed in 7-SEG disap-
pears.
7
7-SEG SW01E
SW02B SW01B
SW01C
0
- Operation : Return valve of addressing
HR unit.
- Display : None
Setting the function
Select the mode/function/option/value using ‘▶’, ‘◀’ Button and con-
firm that using the ‘●’ button after dip switch No.5 is turned on.
DIP-SWITCH
SW01D(reset)
SW04C(x:cancel)
7-Segment
SW03C(▶:forward)
SW02C(◀:backward)
SW01C(●:confirm)
Method of checking the pipe detection result
at HR unit
In case that an indoor unit of central control address "11" is connected to a
valve #1 of an HR unit
No. Display and setup Setup and Contents
1
7-SEG SW01E
- Operation: Turn dip S/W No.1 on.
- Display: "11" is displayed in 7-SEG
2
7-SEG SW01E
- Operation: Turn dip S/W No.1 off.
- 7-SEG disappeared
