LG OLED55B7P Service Manual

- 16 -

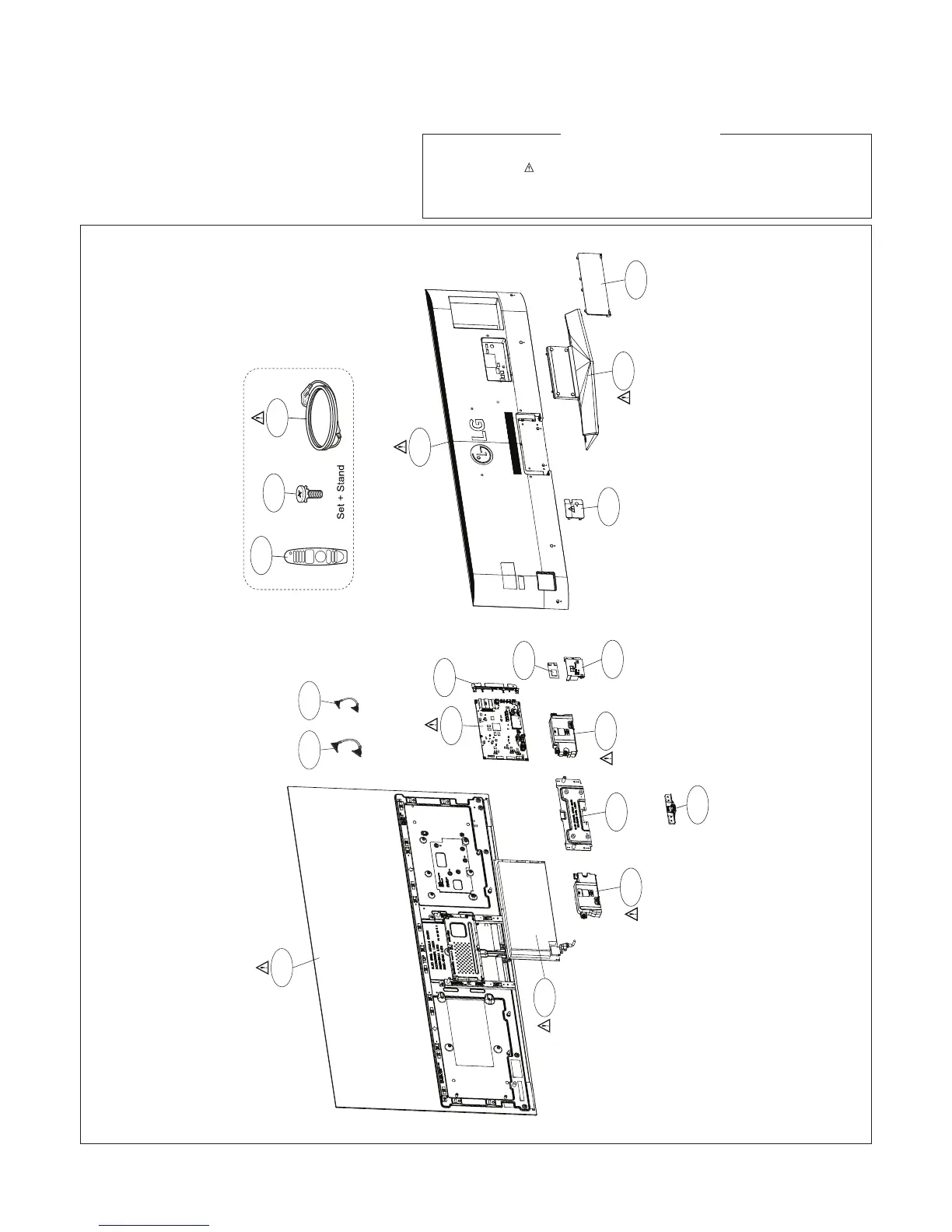

EXPLODED VIEW
Many electrical and mechanical parts in this chassis have special safety-related characteristics. These
parts are identified by in the EXPLODED VIEW.
It is essential that these special safety parts should be replaced with the same components as
recommended in this manual to prevent Shock, Fire, or other Hazards.
Do not modify the original design without permission of manufacturer.
IMPORTANT SAFETY NOTICE
200
400
540
521
530
120
121
710
700
A10
AR2
920
900
810
571
LV1 LV2
570
500

LG OLED55B7P Specifications

General

Screen shape	Flat
Response time	- ms
Display diagonal	54.6 \
Display brightness	- cd/m²
Display technology	OLED
Motion interpolation technology	-
Product color	Silver
Panel mounting interface	300 x 200 mm
PC in (D-Sub)	No
RF ports quantity	1
HDMI ports quantity	4
USB 2.0 ports quantity	3
Consumer Electronics Control (CEC)	SimpLink
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
Operating system version	3.5
Operating system installed	Web OS
Audio decoders	DTS, Dolby Atmos, DTS-HD
RMS rated power	40 W
High Dynamic Range (HDR) technology	Hybrid Log-Gamma (HLG)
Wi-Fi standards	Wi-Fi 5 (802.11ac)
AC input voltage	120 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.5 W
Package depth	228.6 mm
Package width	1450 mm
Package height	825.5 mm
Package weight	27000 g

Weight and Dimensions

Depth (with stand)	226 mm
Height (with stand)	760 mm
Weight (with stand)	20500 g
Depth (without stand)	48.3 mm
Width (without stand)	1229.4 mm
Height (without stand)	708.6 mm
Weight (without stand)	16200 g
