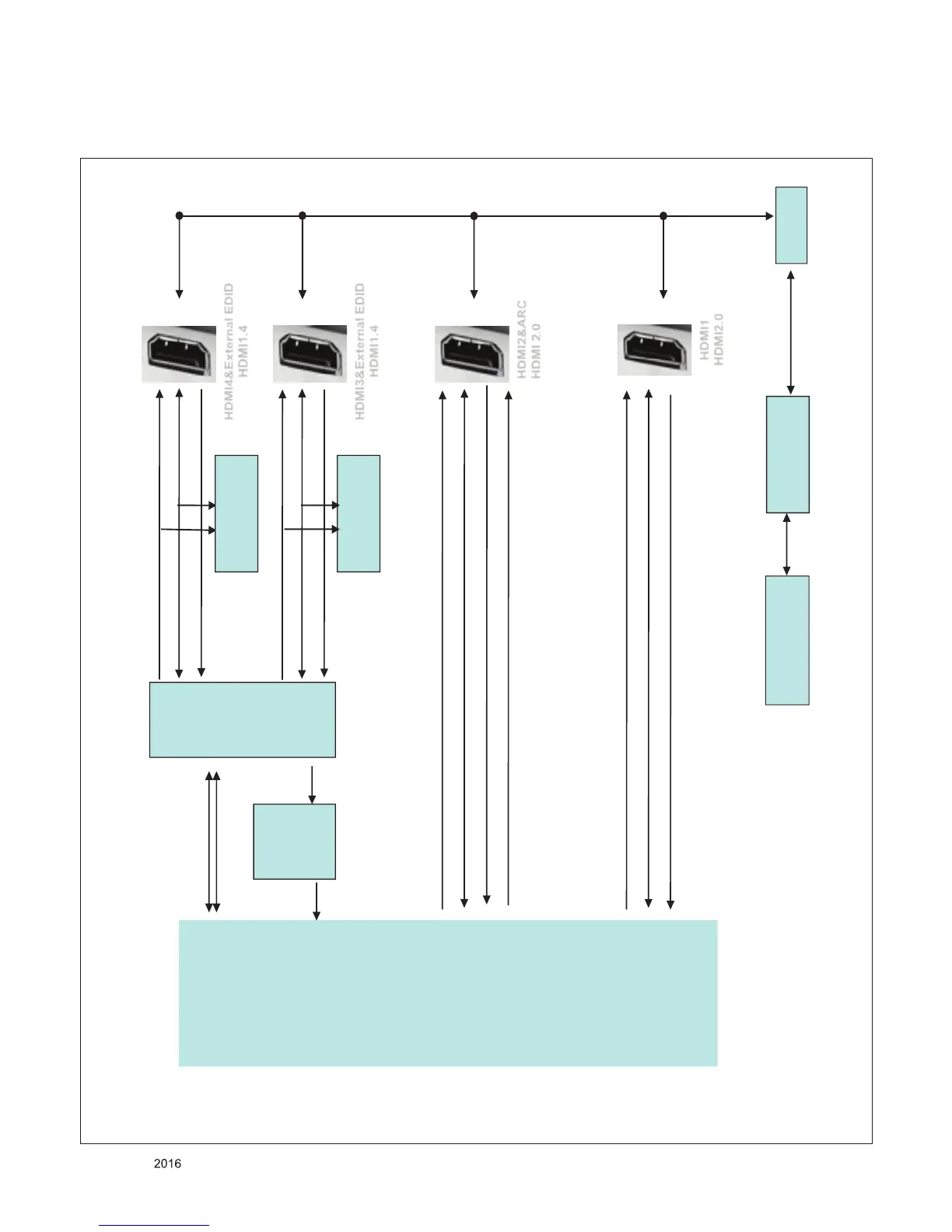

7. HDMI
HDMI3&External EDID
HDMI1.4
HDMI2&ARC
HDMI 2.0
CEC_REMOTE
RENESAS
MICOM(IC3000)
K2L
HDMI_ARC
X-Tal(X3000)
32.768kHz
HDMI1
HDMI2.0
DDC_SCL_1
DDC_SDA_1
TMDS Link 8bits
DDC_SCL_2
DDC_SDA_2
TMDS Link 8bits
DDC_SCL_3
DDC_SDA_3
* TMDS Link 8bits = TMDS DATA 6bits(DATA0,1,2)+ TMDS CLK 2bits
TMDS Link 8bits
HDMI_CEC_MICOM
Q3001
IC3301
External EDID
ST_IO19_H0_SCL
ST_IO20_H0_SDA
ST_IO22_H1_SCL
ST_IO23_H1_SDA
ST_IO25_H2_SCL
ST_IO26_H2_SDA
GPIO17
JK3301
JK3300
JK3302
HDMI4&External EDID
HDMI1.4
JK3303
DDC_SCL_4
DDC_SDA_4
TMDS Link 8bits
IC3304
External EDID
IC3306
TI 2:1 MUX
DDC_SCL_3/4
DDC_SDA_3/4
IC3305
Retimer_IC
TMDS Link 8bits
TMDS Link 8bits
