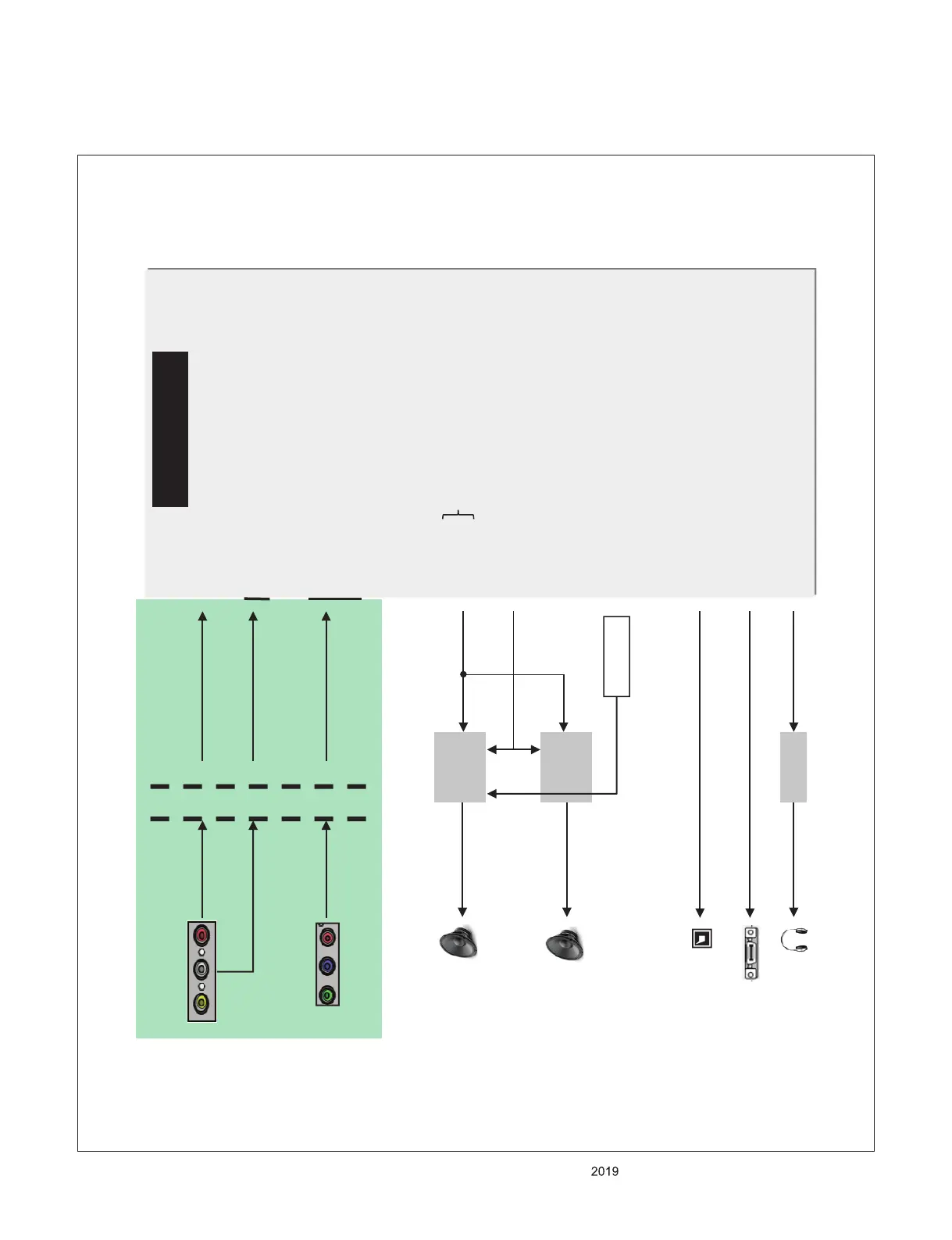

Main SoC
AR15 [CVBS_IN2]
AV_CVBS_IN
AV1
Phone JACK
Component 1
Phone JACK
AV1_CVBS_IN_SOC
AR12 [SOY1_IN] AT12 [Y1_IN] AR13 [PB1_IN] AU14 [PR1_IN]
COMP2_Pb COMP2_Y COMP2_Pr
COMP2_SOG2_IN_SOC COMP2_Y_IN_SOC COMP2_Pb_IN_SOC COMP2_Pr_IN_SOC
Jack Side SOC Side
SPDIF_OUT
SPDIF OUT
H/P JACK
HP_LOUT_JACK HP_ROUT_JACK
AU9 [IEC958OUT] AR9 [AUDA_OUTL] AT9 [AUDA_OUTR]
SPDIF_OUT_ARC
AL34 [ARC_OUT]
COMP2/AV_L_IN COMP2/AV_R_IN
AR10 [AUAD_L_CH2_IN
AT10 [AUAD_R_CH2_IN]
AUAD_L_CH2_IN
AUAD_R_CH2_IN
HP AMP
ARC OUT
(HDMI2)
Front Speaker
Woofer Speaker
MICOM
AMP_RESET
[SCK] [LRCK] [DACLRCH] [I2C_SCL_0/SDA_0]
I2S
[GPIO17]
Audio
AMP
Audio
AMP
AMP_MUTE
(WOOFER_MUTE)
3. Video & Audio IN/OUT
