8
5

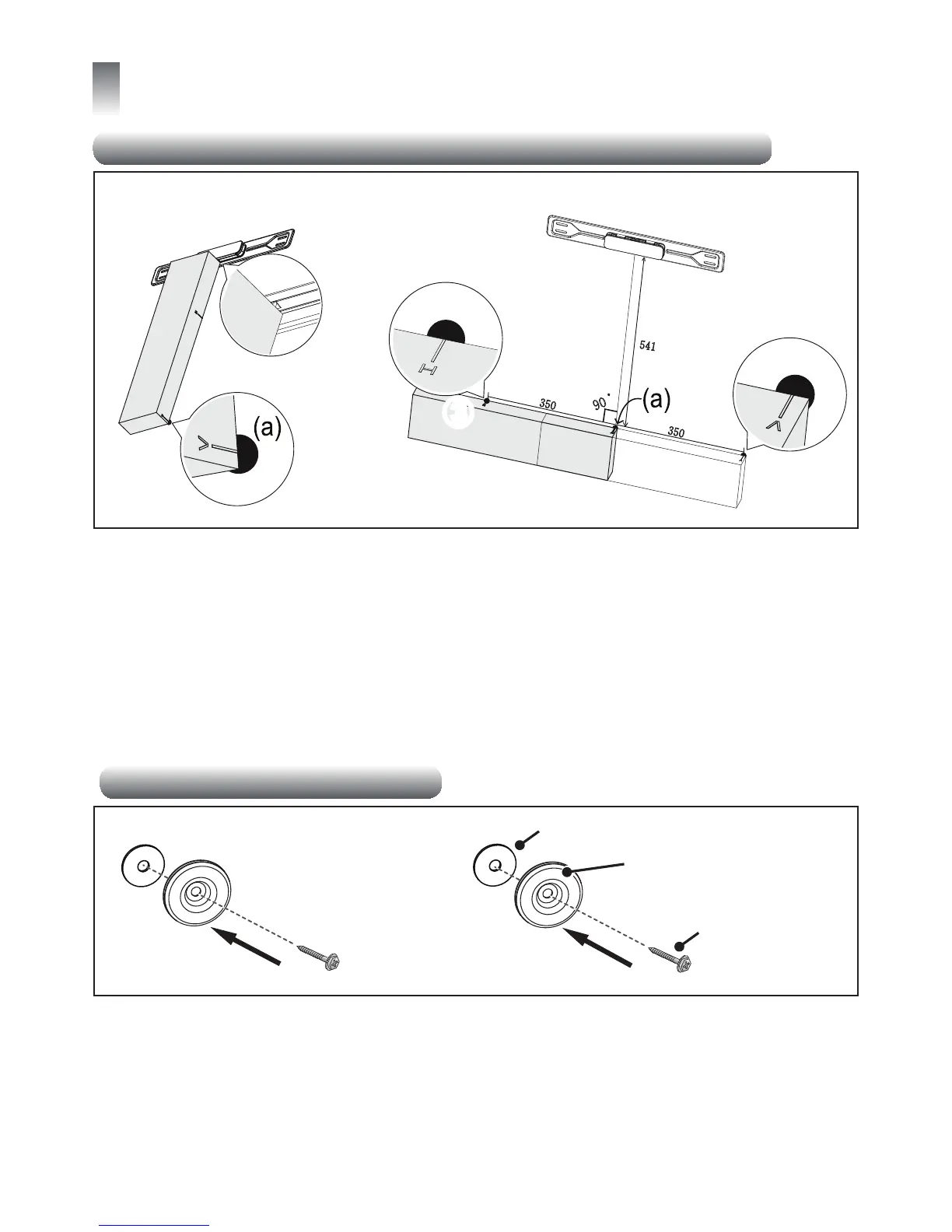

How to Install the Bottom Wall Mount
How to Select the Installation Location of the Bottom Wall Mount
[unit : mm]
350
90˚
350
541
Place the box on the bottom center of the attached top wall mount and place the box at a right
angle (90 degrees) to the top wall mount as shown in the figure.
Find the V on the bottom of your box, and mark the point facing it on the wall [(a) in the figure].
Rotate the box 90 degrees counterclockwise, making sure that (a) point in the figure is always at
the center.
Find the H on the left side of your box and mark the point facing it on the wall.
Move the box to the right. Check if the box is level, using a level.
Find the V on the right side of your box, and mark the point facing it on the wall.
ĺ Bottom wall mounts should be placed on the points marked in step
and
.
Please follow the below direction.
Wall mount screw
bottom wall attaching
brackets
Washer
ĺ Fix the two bottom wall mounting brackets onto the wall using the wall mount screw as shown in
the figure.
ĺ Depending on the condition of the wall, use additional washers when tightening the bottom wall
attaching brackets.
To Next Page
