12

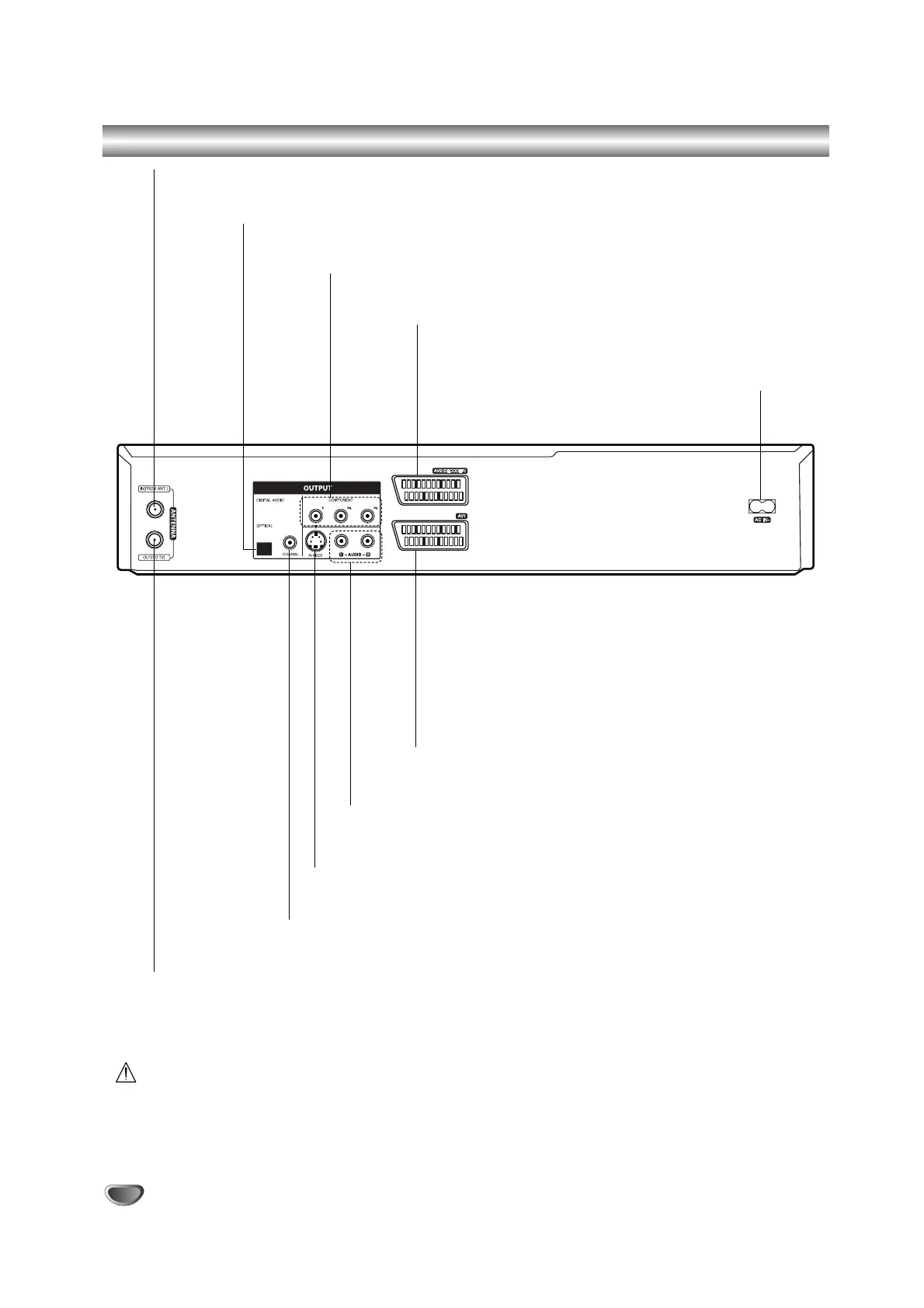

Rear Panel
Caution
Do not touch the inner pins of the jacks on the rear panel. Electrostatic discharge may cause
permanent damage to the unit.
ANTENNA IN
Connect the aerial to this terminal.
COAXIAL (Digital audio output jack)
Connect to digital (coaxial) audio equipment.
AC Power Cord
Plug into the power source.
S-VIDEO OUTPUT
Connect to a S-Video Input on TV.
OPTICAL (Digital audio output jack)
Connect to digital (optical) audio equipment.
ANTENNA OUT
Passes the signal from the ANTENNA IN jack to your TV/monitor
AV 1 SCART JACK
Connect to a TV with SCART jack.
AUDIO OUTPUT (Left/Right)
Connect to a TV with audio inputs.
COMPONENT OUTPUT (Y P
B PR)
Connect to a TV with Y Pb Pr inputs.
AV2 DECODER SCART JACK
Connect the audio/video output of an external source
(Pay-TV decoder, Set Top Box, VCR, etc.).
To Next Page
