Connecting18
Connecting
2

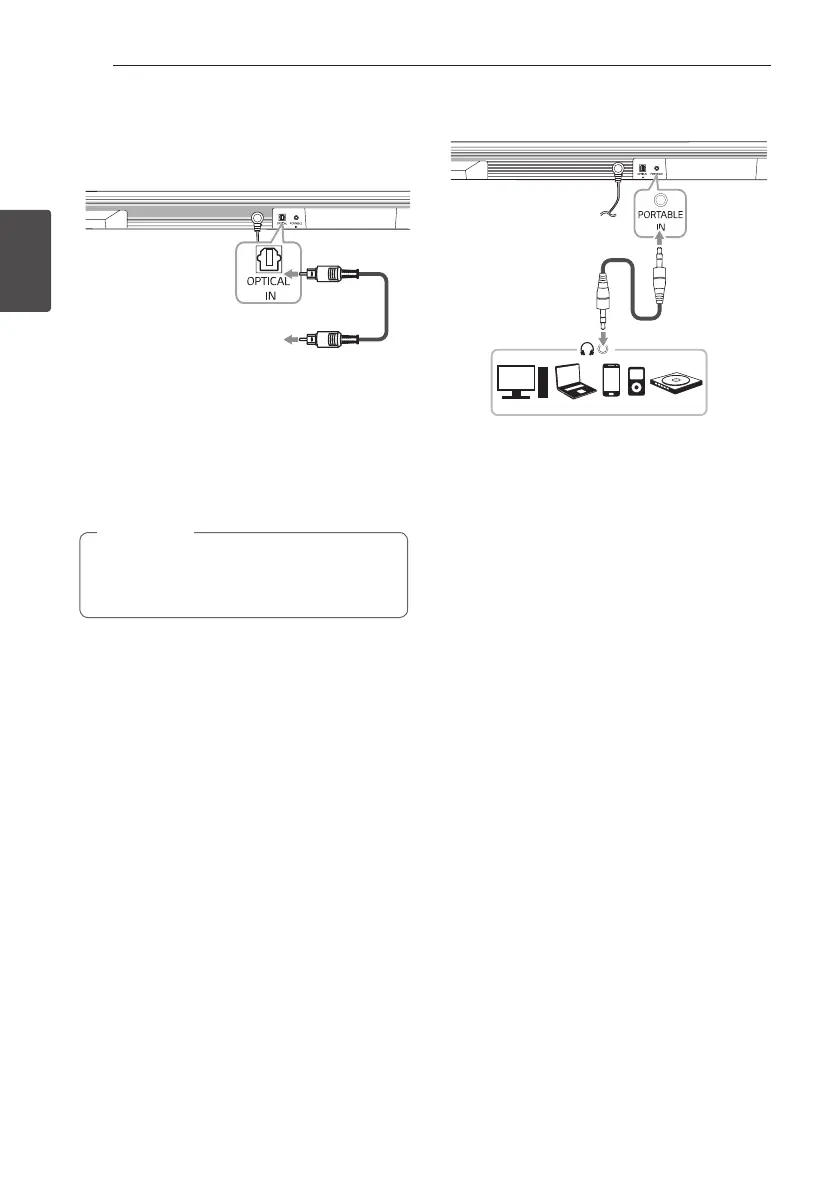

Optical In connection
Connect an optical output jack of external devices to
the OPTICAL IN jack.
To the optical output jack of
external device
1. Connect the OPTICAL IN jack on the back of
the unit to optical out jack of your TV (or digital
device etc.)
2. Select the input source to OPT (Optical) by
pressing F button repeatedly.
3. Listen to sound.
Before connecting the optical cable, be sure to
remove the protection plug cover if your cable
has the cover.
,
Note
Portable In connection
MP3 player, etc...
Listening to music from your portable
player
The unit can be used to play the music from many
types of portable players or external devices.
1. Connect the portable player to the
PORTABLE IN connector of the unit by using 3.5
mm stereo cable.
2. Turn the power on by pressing
1
(Power).
3. Select the input source to PORT. (Portable In) by
pressing F button repeatedly.
4. Turn on the portable player or external device and
start playing it.
Optical
cable
Portable
cable

LG SH5B Specifications

General

Audio decoders	Dolby Digital
RMS rated power	320 W
Audio output channels	2.1 channels
Audio Return Channel (ARC)	Yes
Product color	Black
TV stand usage	-
Audio formats supported	FLAC, LPCM, MP3, OGG, WAV, WMA
Consumer Electronics Control (CEC)	SimpLink
Subwoofer type	Active subwoofer
Subwoofer location	Separate
Subwoofer connectivity	Wireless
Soundbar speaker RMS power	120 W
Bluetooth version	4.0
Number of HDMI outputs	1
Connectivity technology	Wired & Wireless
Power consumption (standby)	0.5 W
Power consumption (typical)	22 W
Package depth	223 mm
Package width	945.9 mm
Package height	433 mm
Package weight	9099 g

Weight and Dimensions

Depth	85 mm
Width	944.88 mm
Height	53 mm
Soundbar weight	2599 g
Subwoofer depth	251.9 mm
Subwoofer width	170.9 mm
Subwoofer height	320 mm
Subwoofer weight	4200 g
