PRODUCT SPECIFICATIONS

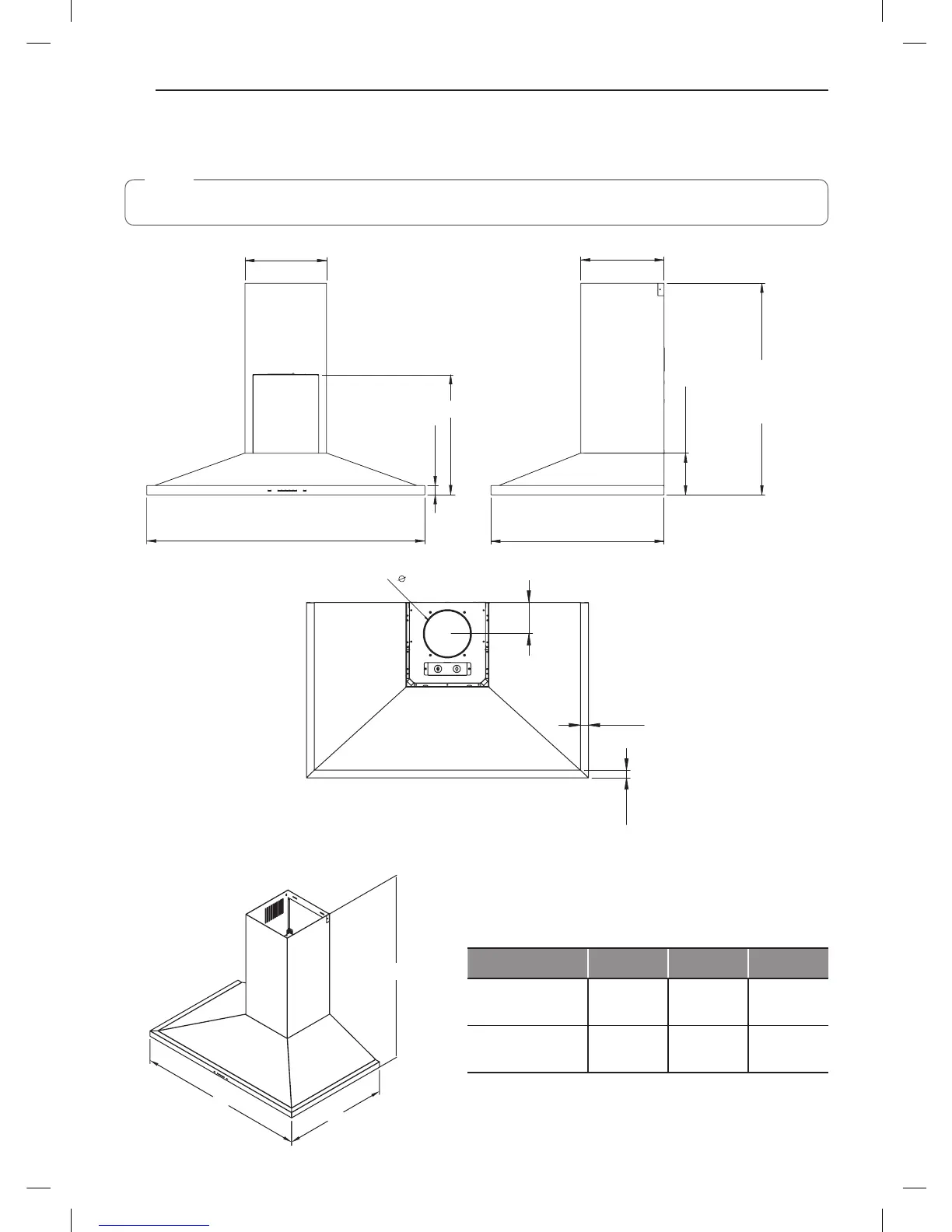

Dimensions
Tolerances: +1/16", -0 (1.6 mm, -0), unless otherwise stated.
NOTE
The exhaust duct(s) and electrical wiring can be connected from either the top or the back of the hood.
10
3/8
″
1
3/16
″
29 15/16″, 35 7/16″
10
5/8″
22
1/16″
5 5/16″
4"
1"
1"
6
"
STANDARD
min. ducted - 27″
min. recirc. - 31″
max. - 48″
18 7/16″
Overall Dimensions
A
C
B
Model A B C
LSHD3689BD,
LSHD3680ST
30" 26
15
/
16
" 22
1
/
16
"
LSHD3089BD,
LSHD3080ST
36" 26
15
/
16
" 22
1
/
16
"

LG SHD3689BD Specifications

General

Brand	LG
Model	SHD3689BD
Category	Ventilation Hood
Language	English
