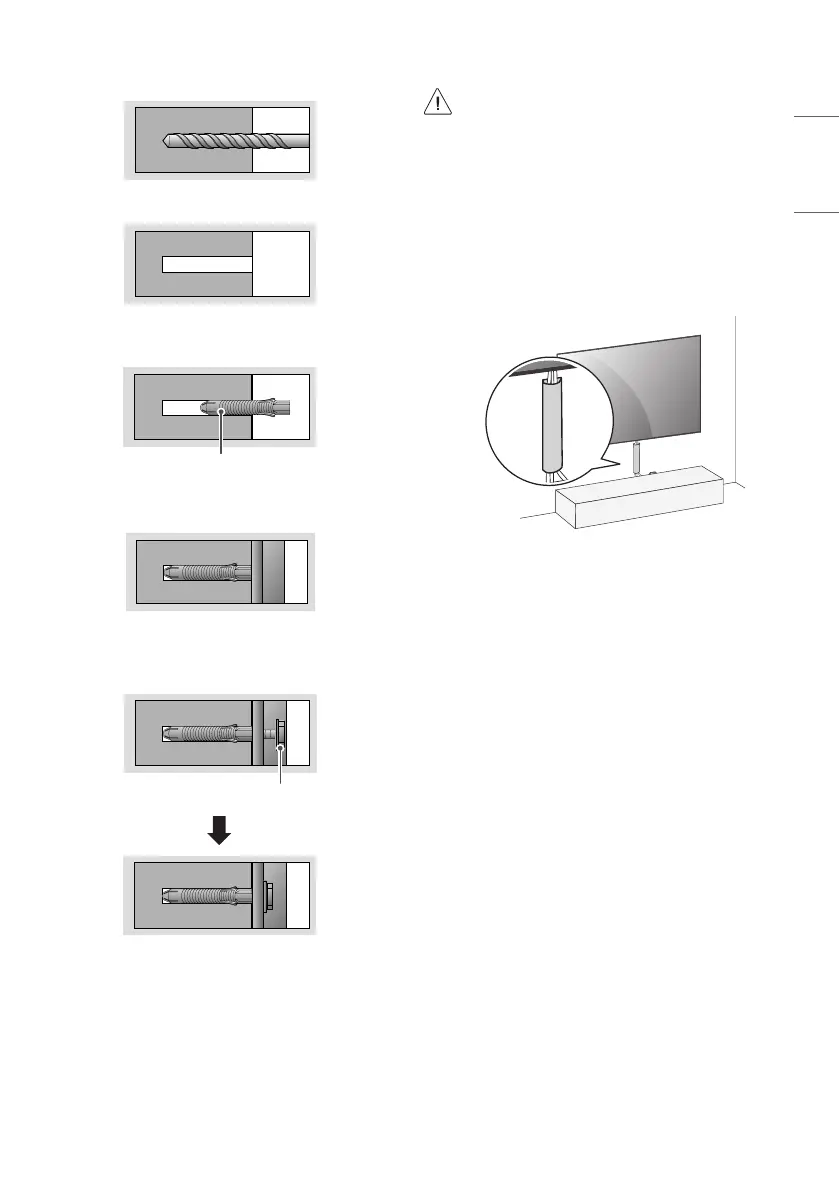

1 Drill holes in anchor locations with a drill bit of Ø8mm to a
depth of 80mm to 100mm.
2 Clean the drilled holes.
3 Insert the enclosed anchors for xing the wall mount into the
holes. (Use a hammer when inserting anchors.)
Wall mounting anchor
4 Push the wall mount support closely toward the wall to match
the hole locations.
5 Tighten screws for xing the wall mount to the holes. At this
time, tighten the screws to a torque of between 45kgf/cm to
60kgf/cm.
Wall mounting screw
After Installation
• When connecting additional cables from the sides, we
recommend holding the centre of the TV horizontally or
vertically and pulling the product to make sure there is
sucient distance from the wall before connecting.
• When connecting additional cables from the bottom, we
recommend releasing the TV from the wall mount before
connecting.
• Use cable management systems to arrange the
cables at the bottom of the TV as shown below. Cable
managements are not provided with the product, so
purchase them separately.
(For example)
• After installing the product, be sure to use it adhered to
the wall.
- Using the product while it is not adhered to the wall
may damage or shake the product.
To Next Page
