4-8
Copyright © 2021 LG Electronics Inc. All rights reserved.
Only for training and service purposes.

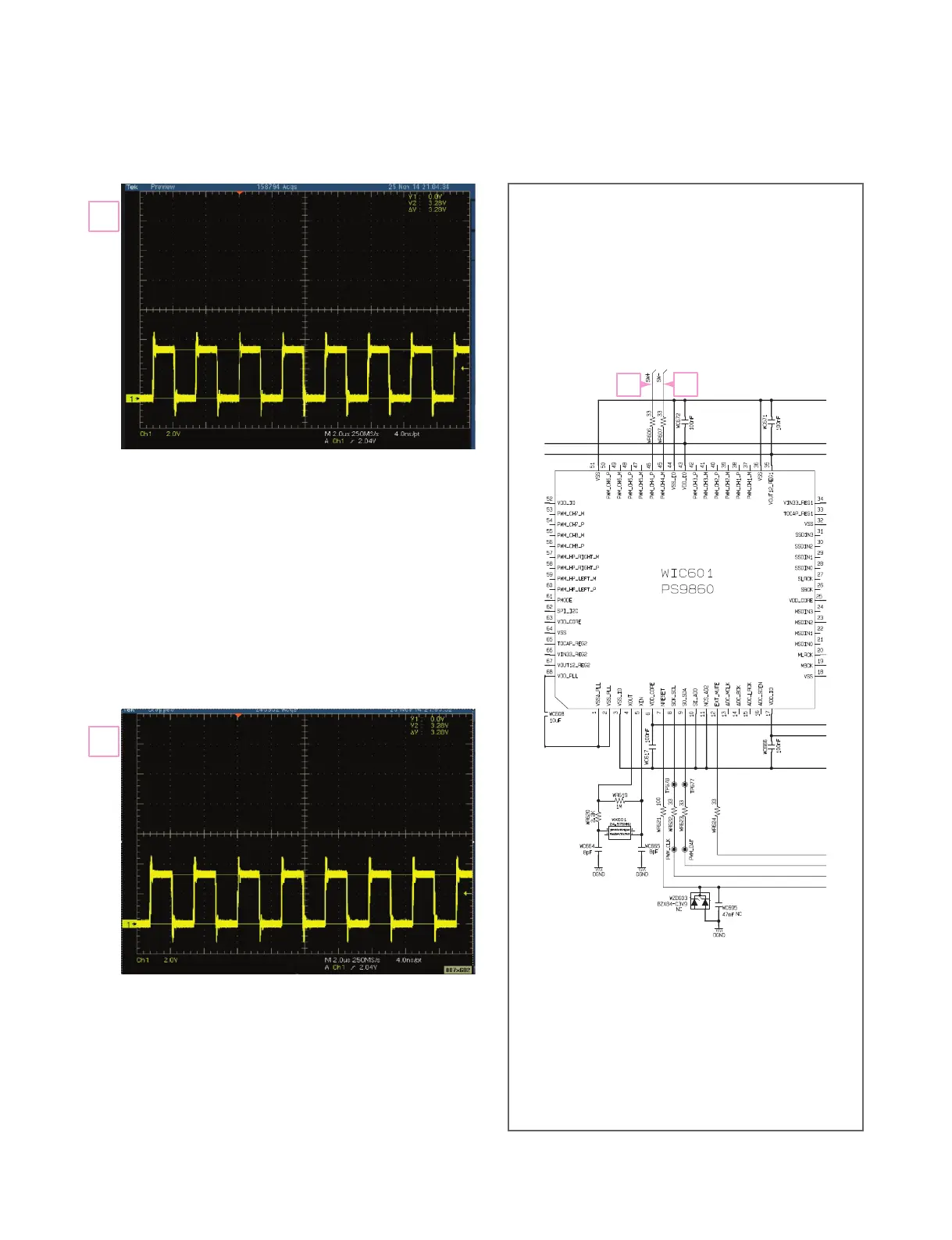

3. PWM
FIG 3-1. Woofer PWM
SW+ SIgnal
6
FIG 3-2. Woofer PWM
SW- SIgnal
7
7
6
