9

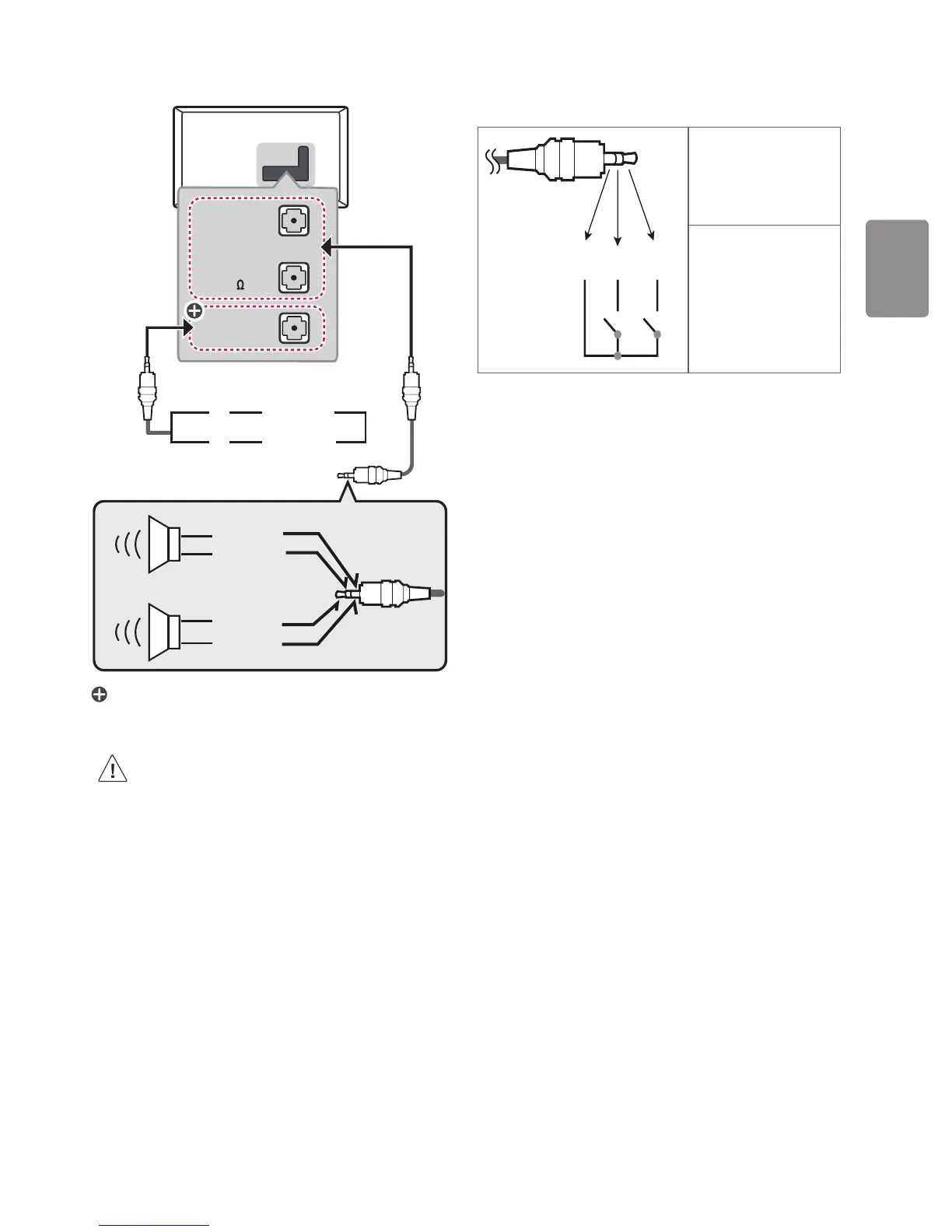

External Speakers
VOLUME
CONTROL
+
-
STEREO
(8 )
EXTERNAL
SPEAKER OUT
UP
or
DOWN
Control port for Speaker out
RIGHT
LEFT
GND
GND
: Depending on model
• Use only with the 3 Pole 3.5 mm Stereo Jack.
• Do not connect your headphones or earphones to the port
for connecting an external speaker.
Method of volume control port
(Depending on model)
• Cable Spec.
GND / UP / DOWN
Each Up / Down pin is
pulled to 3.3 V with CPU
GPIO.
CPU detects transition
from 3.3 V to GND level for
volume control.
