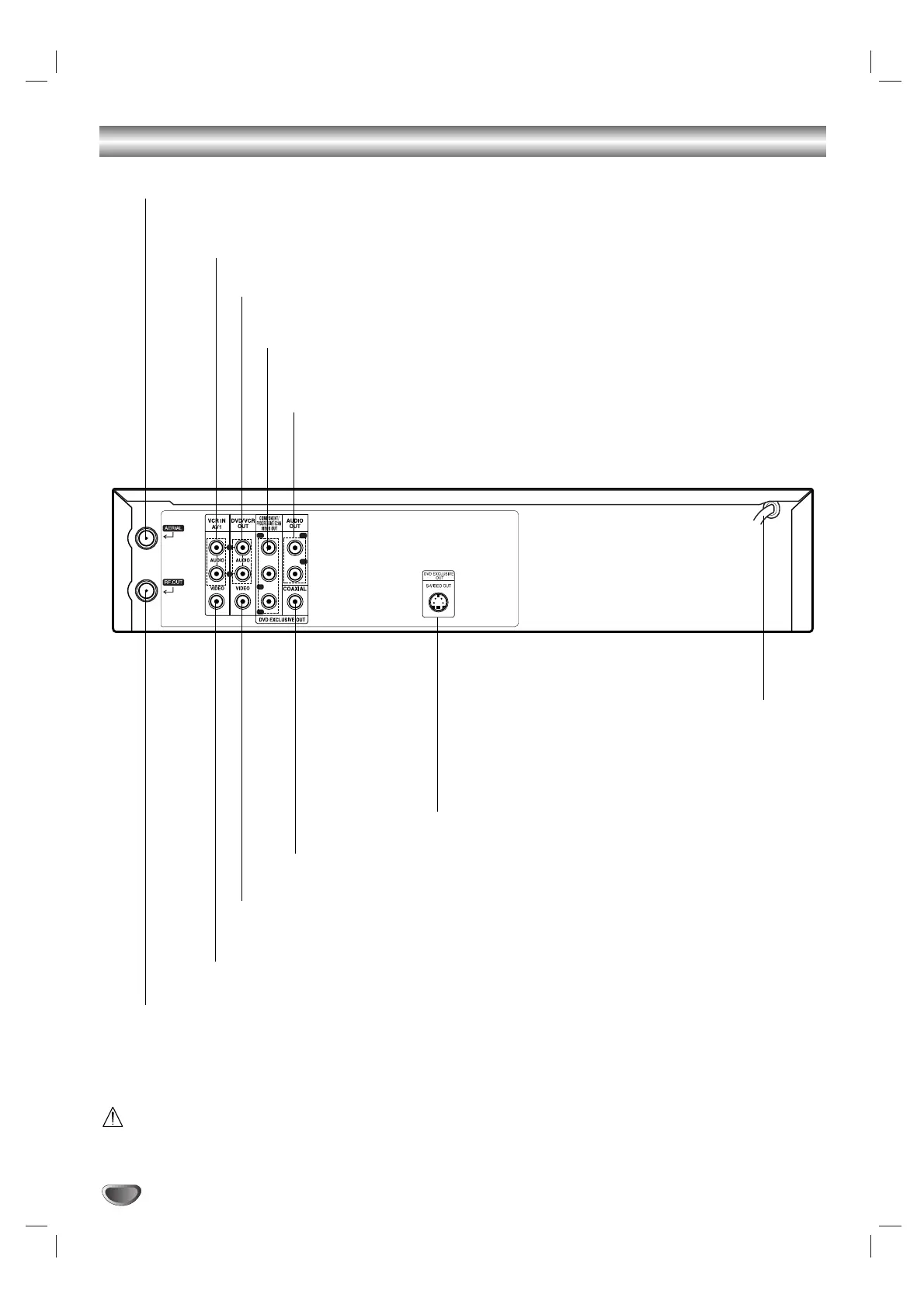

Rear Panel
Do not touch the inner pins of the jacks on the rear panel.
Electrostatic discharge may cause permanent damage to the unit.
AUDIO OUT (Left/Right)
(DVD EXCLUSIVE OUT)
Connect to an amplifier, receiver or stereo system.
AUDIO OUT (Left/Right)
(DVD/VCR OUT)
Connect to an amplifier, receiver or stereo system.
AERIAL
Connect the aerial using
this jack.
COAXIAL (Digital audio out jack) (DVD EXCLUSIVE OUT)
Connect to digital (coaxial) audio equipment.
RF.OUT
Connect to your TV using this jack.
S-VIDEO OUT (DVD EXCLUSIVE OUT)
Connect to a TV with S-Video input.
VIDEO IN (VCR IN AV1)
Receive the video signals from an external source to VCR.
VIDEO OUT (DVD/VCR OUT)
Connect to a TV with video inputs.
AC Power Cord
Connect to a power source.
COMPONENT/PROGRESSIVE SCAN VIDEO OUT (Y Pb Pr)
(DVD EXCLUSIVE OUT)
Connect to a TV with Y Pb Pr inputs.
AUDIO IN (Left/Right) (VCR IN AV1)
Receive the audio signals from an external source to VCR.
