A6A6
Using the Computer

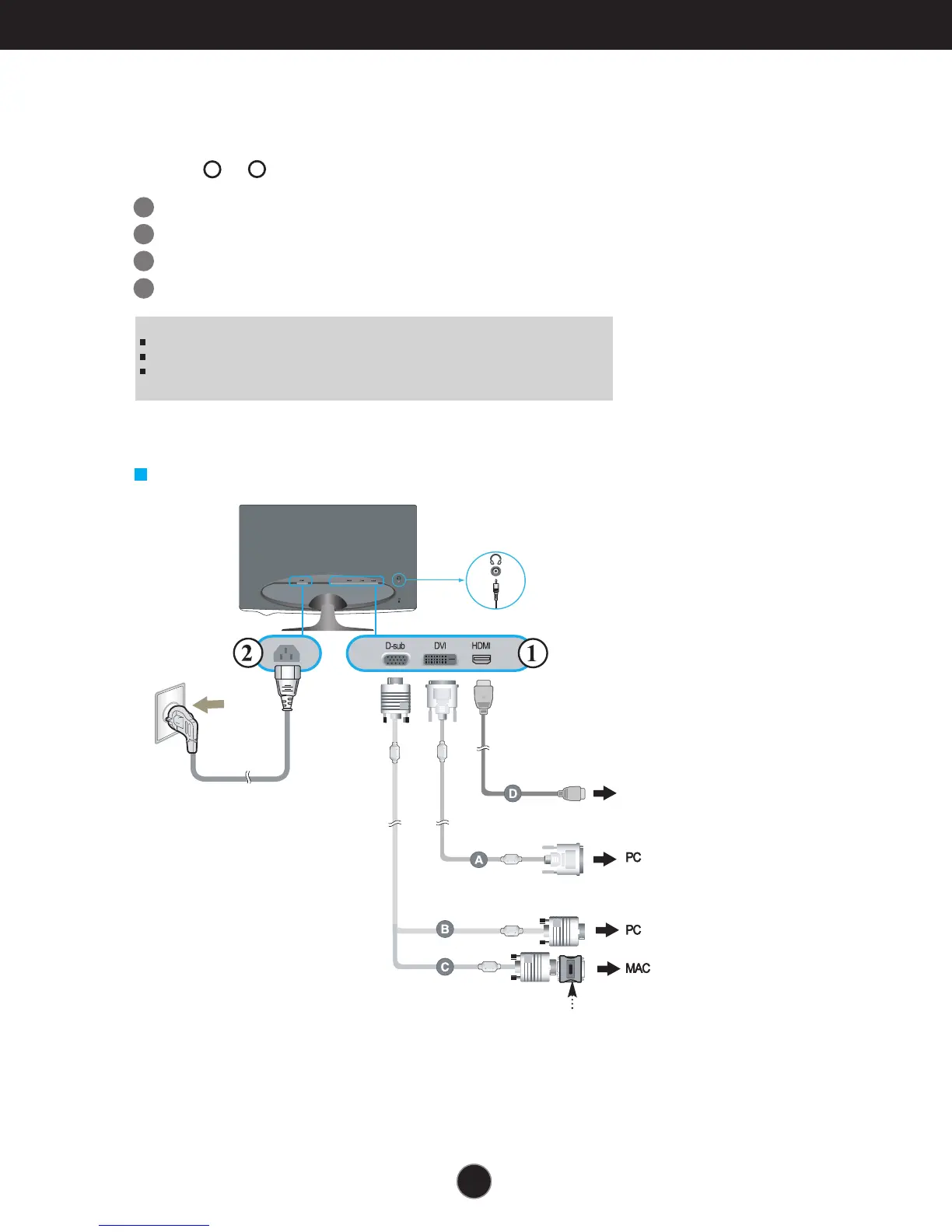

1. Make sure to turn off the computer and product. Connect the cable as below sketch map
form to .
1
2
Connecting the Display
Headphone/Earphone Input
A
B
C
D
Connect DVI-D Cable
Connect D-sub Cable (PC)
Connect D-sub Cable (Mac)
Connect HDMI Cable
NOTE
This is a simplified representation of the rear view.
This rear view represents a general model; your display may differ from the view as shown.
User must use shielded signal interface cables (D-sub 15 pin cable, DVI cable) with ferrite cores
to maintain standard compliance for the product.
Wall-outlet type
Power Cord
Signal Cable
DVI-D(This feature is not
available in all countries.)
AV equipment
(Set-Top Box, DVD, Video,
Video Game Console)
Varies according to model.
Mac adapter
For Apple Macintosh use, a separate plug adapter is needed to
change the 15 pin high density (3 row) D-sub VGA connector on the
supplied cable to a 15 pin 2 row connector.
W2261VP/W2261VG
