5

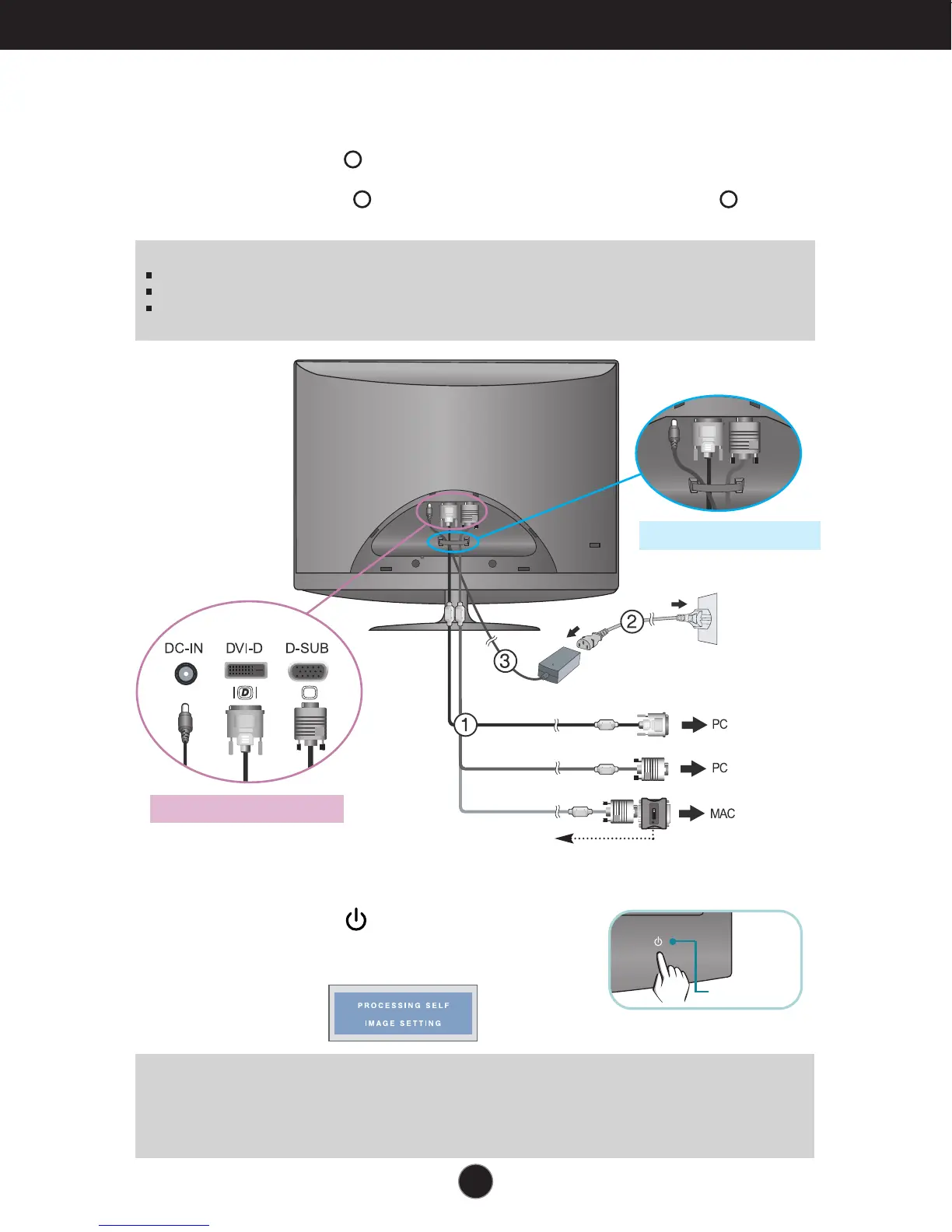

Connecting the Display
Wall-outlet type
Mac adapter
For Apple Macintosh use, a separate plug adapter is needed
to change the 15 pin high density (3 row) D-sub VGA
connector on the supplied cable to a 15 pin 2 row connector.
DVI (This feature is not available in all countries.)
4. Touch the power button in front to turn on the monitor.
The 'Self Image Setting Function' will automatically run
when the monitor is on. (Only Analog Mode)
NOTE
‘ Self Image Setting Function’? This function provides the user with optimal display settings.When the user connects the
monitor for the first time, this function automatically adjusts the display to optimal settings for individual input signals.
‘AUTO/SET’ Function? When you encounter problems such as blurry screen, blurred letters, screen flicker or tilted screen
while using the device or after changing screen resolution, press the AUTO/SET function button to improve resolution.
NOTE
This is a simplified representation of the rear view.
This rear view represents a general model; your display may differ from the view as shown.
User must use shielded signal interface cables (D-sub 15 pin cable, DVI cable) with ferrite cores to maintain
standard compliance for the product.
Connecting with the PC
1. Before setting up the monitor, ensure that the power to the monitor, the computer
system, and other attached devices is turned off.
2. Connect the signal cable . When attached, tighten the thumbscrews to secure the
connection.
3. Connect the power cable with the AC-DC adapter (AC-DC power supply) , and
then plug the cable in the outlet.
1
32
[ Arranging the cables]
[ Connecting the cables]
Power Button
To Next Page
