Put the other end of the drain hose over the standpipe or
wash tub.
2
C

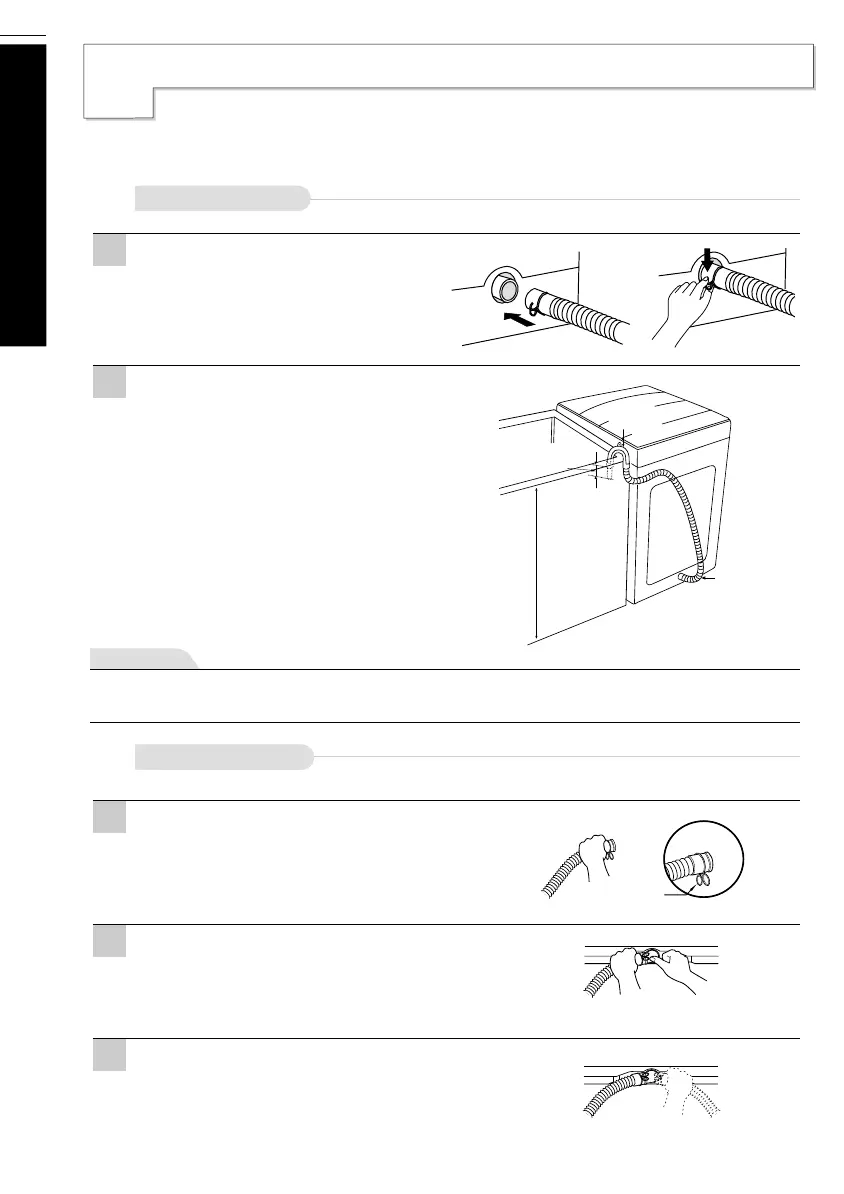

onnecting Drain Hose
30
Installation
Before connecting Drain Hose, check your Drain Hose model and choose the correct
instructions.
Fit the end of the drain hose to the outlet of the
drain pump and tighten the clamp.
Pump Model
•
To prevent siphoning, the drain hose should not extend more than 50 mm from the end of the hose guide.
•
The discharge height should be approximately 0.9 ~ 1.2 m from the floor.
Before connecting
Ensure that the hose clip is set as indicated here.
Connect the Elbow Hose
Push the elbow hose toward the body of the
washing machine.
Non-Pump Model
Place the Drain Hose
To change the direction of the hose, pull out the
elbow hose and change the direction.
Repeat Step 2.
Clip
1
1
2
3
To Next Page
