9. DISASSEMBLY INSTRUCTIONS

󳢬

Disassemble and repair the parts after pulling out power cord from the outlet.

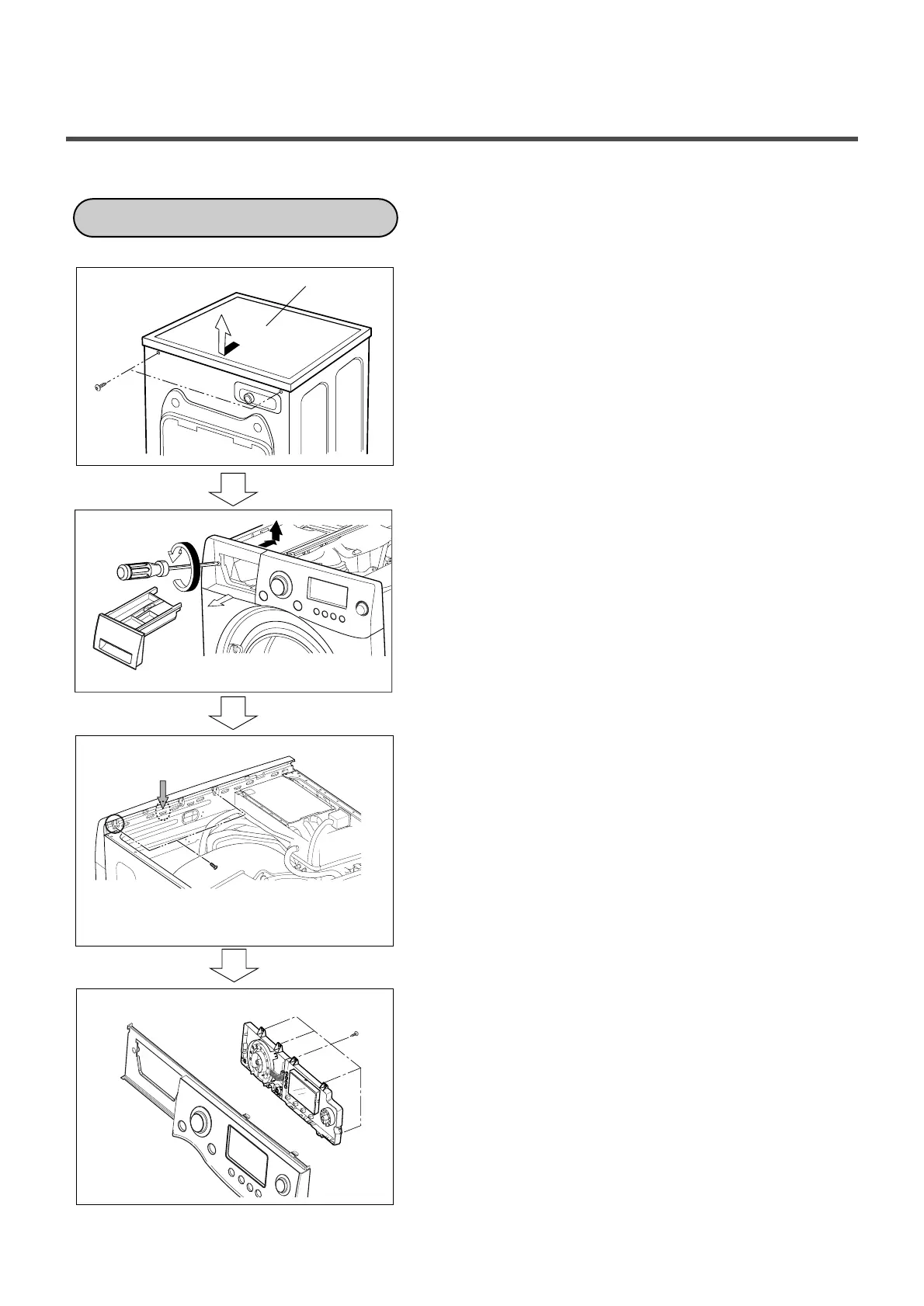

① Unscrew the screws on the top plate.

② The plate assembly(Top) is pulled back and

then upward to arrow direction.

③ The cover(Inner) is disassembled.

①

Pull out the drawer and unscrew 2 screws.

②

Lift the side the Control Panel Assembly and pull it out

①

Two screws is unscrewed.

②

Push out PANEL ASSEMBLY,CONTROL after Push

the hook below.

① The PWB assembly(Display) is disconnected.

② When 7 screws are unscrewed on the PWB

insulator and the PWB assembly(Display) is

disassembled from the PWB insulator.

CONTROL PANEL

PLATE ASSEMBLY(TOP)

PWB ASSEMBLY

(DISPLAY)

DRAWER PANEL ASSEMBLY

PANEL ASSEMBLY, CONTROL
